Automatic Linear PET Bottle Rinsing Filling Capping Machine

  • Model: HY-CGF-L
  • Rinsing head: 2,4,6pcs
  • Filling nozzles: 2,4,6pcs
  • Capping nozzles: 2,4,6pcs
  • Filling amount: 3L-15L
BASIC INFO
HY-CGF-L Automatic Linear PET Bottle Rinsing Filling capping machine Technical Description

The linear type Non-carbonated water PET bottle washing, filling and capping machine is special machine for regular 1 gallon, 2 gallons, 5 Liters and 6 liters up to 15 liters bottle. The water filling machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. When bottles come to the washing heads, the cylinder will push bottles into the washing heads, and washing heads will reverse the bottles. Then pump will give pressure and washing heads spurting water to wash the bottles. After washing, the bottles will come to the filler. The cylinder will push bottles into the filler, then filling will come down to fill the bottles. After filling the bottles will go to the capping. One bottle will take one lids, then capping machine will screw the lids on the bottle. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The advanced programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.



Main Technical Data
Model
HY-CGF-2-2-1L
HY-CGF-4-4-1L
HY-CGF-6-6-1L
Rinsing Heads
2
4
6
Filling Heads
2
4
6
Capping Heads
1
1
1
5 Bottle Capacity(BPH)
200
380
560
Volume
3L-15L
Accuracy
≤10ml
Suitable Bottles
Customized
Control method
Touch screen and PLC
Air supply
0.5-0.7Mpa
Voltage
415V/380V/220V, Three Phases , 50/60Hz, customized globally

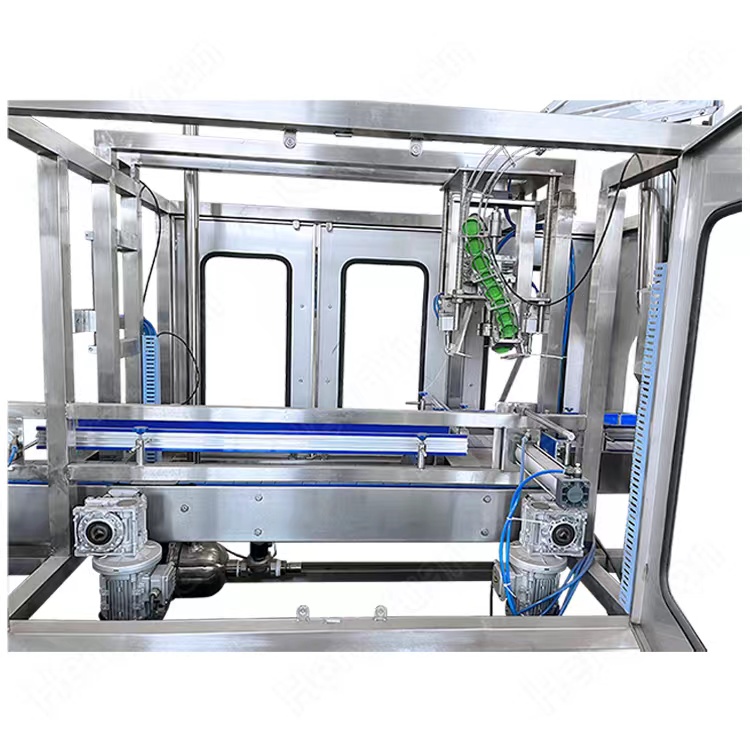

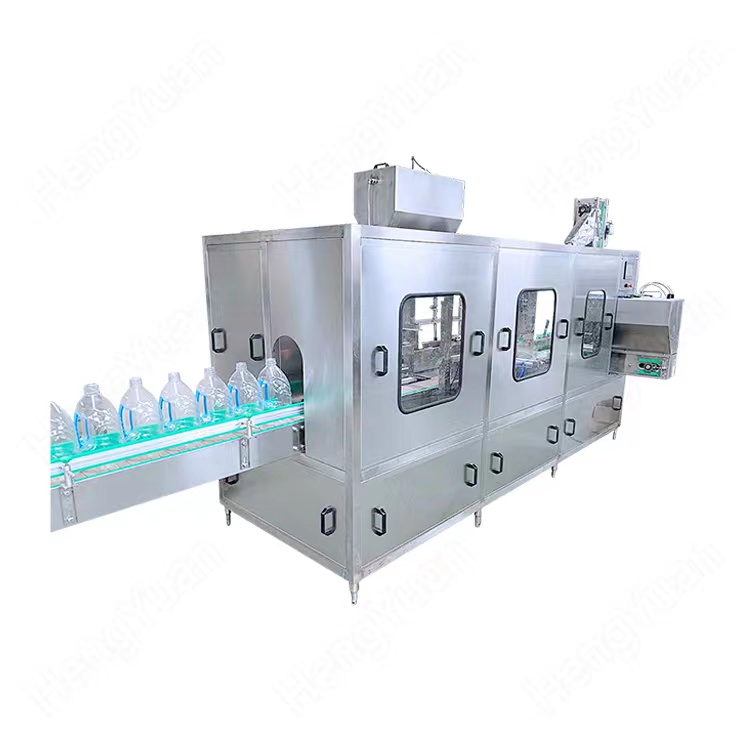

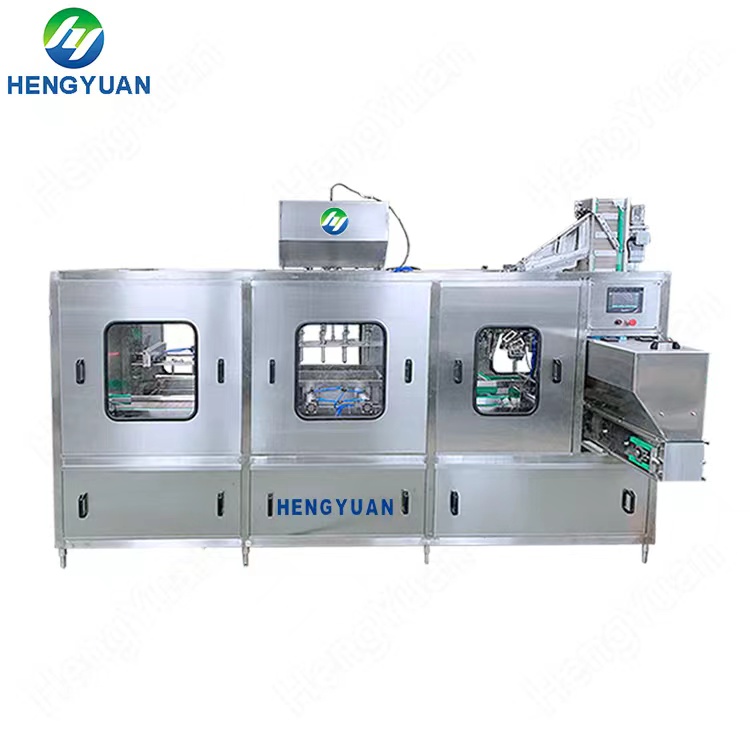

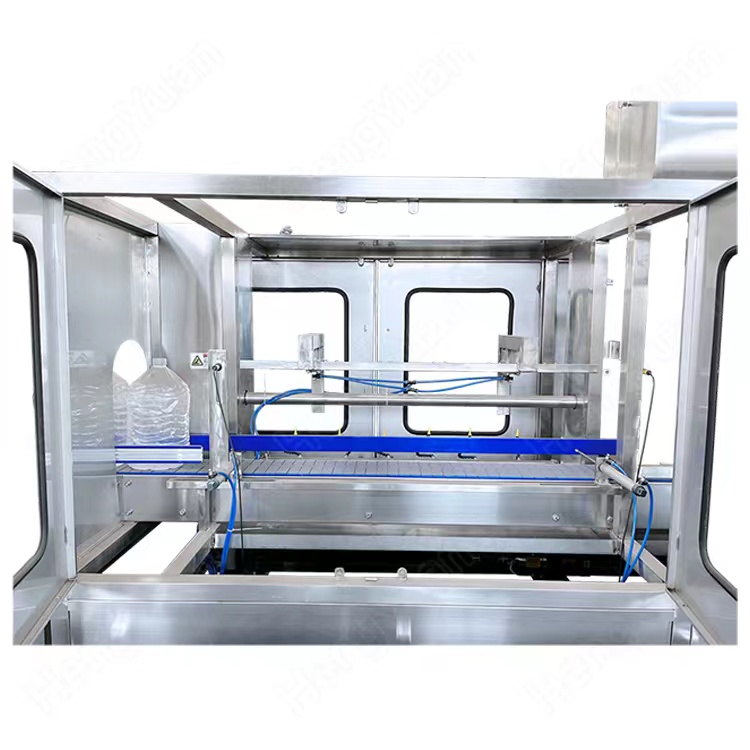

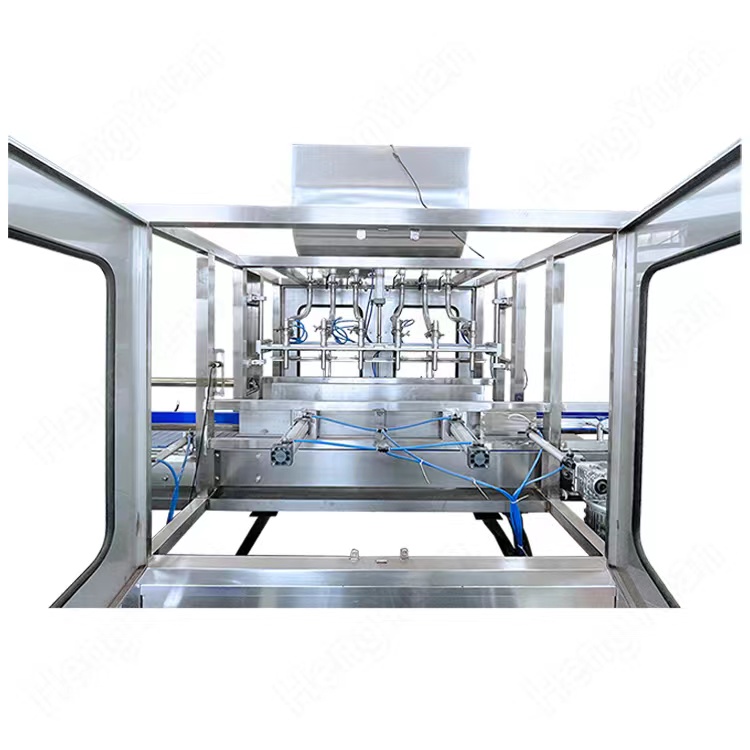

HY-CGF-L Automatic Linear PET Bottle Rinsing Filling capping machine Pictures
HY-CGF-L Linear Type 3-15L Water PET Barrel 3 in 1 Rinsing Filling Capping Machine.jpg
HY-CGF-L 3-15L Water PET Barrel 3 in 1 Rinsing Filling Capping Machine.jpg
HY-CGF-L Linear Type 3-15L Water PET Barrel 3 in 1 Rinser Filler Capper.jpg
HY-CGF-L Automatic 3-15L Water PET Barrel 3 in 1 Rinsing Filling Capping Machine.jpg
HY-CGF-L Automatic Water PET Barrel 3 in 1 Rinsing Filling Capping Machine.jpg
HYB1G2P1S1-100 Automatic Bottle Blowing Filling Capping Machine Advantages.jpg

HY-CGF-L Automatic Linear PET Water Bottle Rinsing Filling capping machine is suitable for below bottle samples
Automatic pet barrels rinsing filling and capping machine, drinking water pet bottles rinsing filling and capping machine, 1 gallon drinking water pet bottles rinsing filling and capping machine, 5 Liters drinking water pet barrel rinsing filling and capping machine, 2 gallons drinking water pet barrels rinsing filling and capping machine, 10 Liters drinking water pet bottles washing filling and capping machine, 15L drinking water pet bottles washer filler and capper, Linear structure bottle rinsing filling and capping machine, etc.
22102401 HY-CGF-L Linear Type 3-15L Water PET Barrel 3in1 Filling Machine.jpg

Click here to view Automatic Small Bottle Filling Plugging capping machine running video on YouTube
https://youtu.be/JTMZMzkQF5M
