Multi-functional Automatic Flat and Round Bottle Label Applicator

  • Model: HYTB2-150FB-RC
  • Suitable object shape: flat, square, round
  • Function: Doulbe-sided, round bottle 1 and 2 labels
  • Label type: None-dry sticker label roll
BASIC INFO
HYTB2-150FB-RC Multi-functional Automatic Flat and Round Bottle Label Applicator Technical description
Automatic Flat Bottle Front and Back Side Double-sided Round Bottle Clamping Sticker labeling machine applies to irregular products or product corresponding to the rules to attach both sides or round bottle one / two labels. Host design labeling machines using imported and domestic advanced technology to improve and make a solution for instability of general domestic labeling. By optical fiber computer control, we can get the synchronization track. The output of labels is controlled by a stepper motor or servo motor. It can detect the objects and size of labels automatically. It is modern and advanced electromechanical integration equipment automatically controlled by microcomputer mode, with large LCD touch panel, display and memory devices containing dozens of memory devices. The operation is simple, the labeling is accurate, the performance is reliable, and there is no noise. Sticker labeling machine is easy to clean, not moldy, beautiful after labeling and of high production efficiency. It is strong and won't fall off on its own. Automatic front and back side sticker labeling application machine is suitable for labeling for labeling on flat bottle, square bottle and round bottle.
Automatic double side label applicator is widely used in bottling of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.


Main technical data

Labeling capacity
30pcs/min for round bottle single label, 20pcs/min for round bottle two labels, 80-150pcs/min for double-sided or single sided labeling
Labeling accuracy
±1.0 mm
Label material
Adhesive sticker, opaque or transparent label
The inner diameter of label roll
76 mm
The outer diameter of label roll
320 mm(max)
The suitable size of label
Width 15-200 mm length 15-300 mm
The suitable size of labeling objects
Can be customized
Operating direction
Left or Right
Total Power
1.8kw
Power supply
AC220V/110V, Single phase. Globally customized
Net weight
About 320kg
Machine size
2400mm×1450mm×1600mm

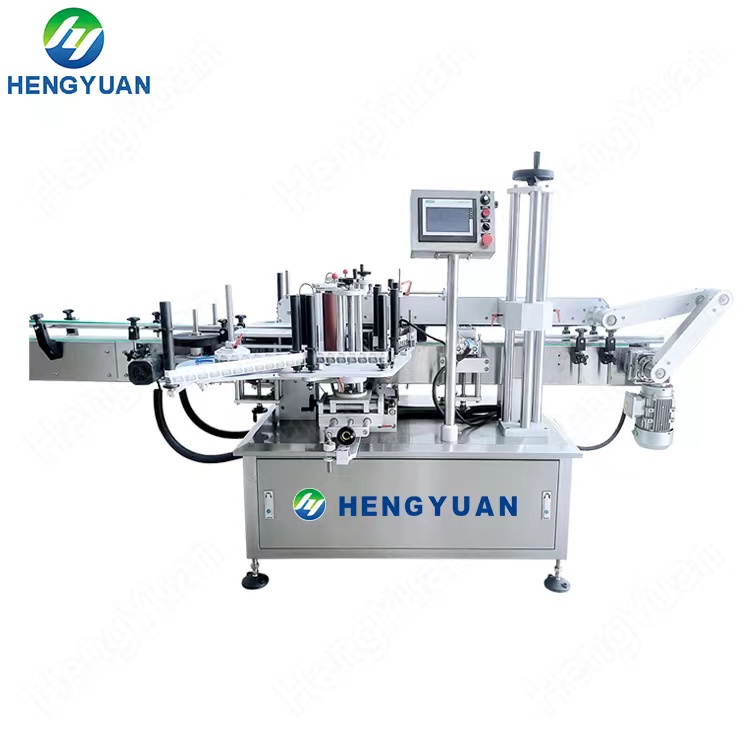

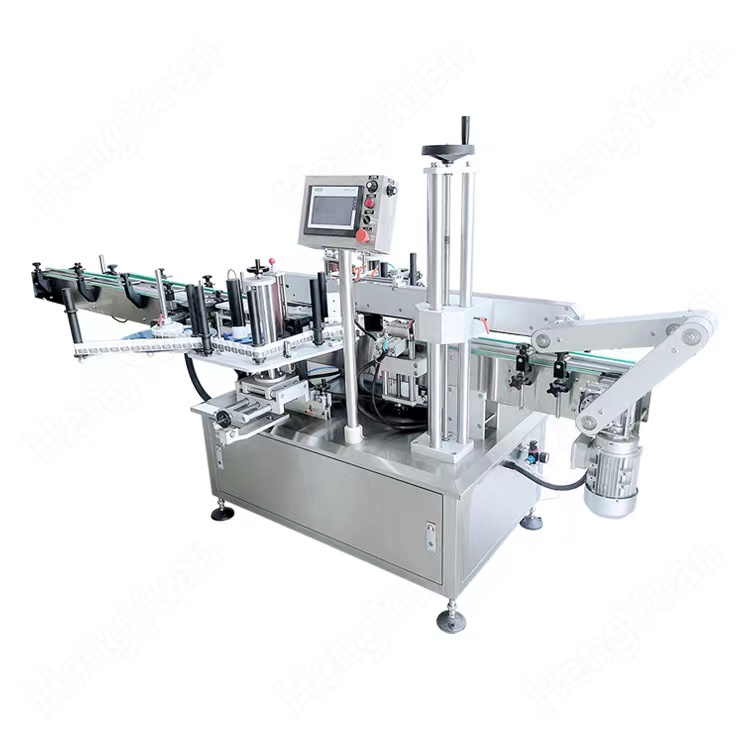

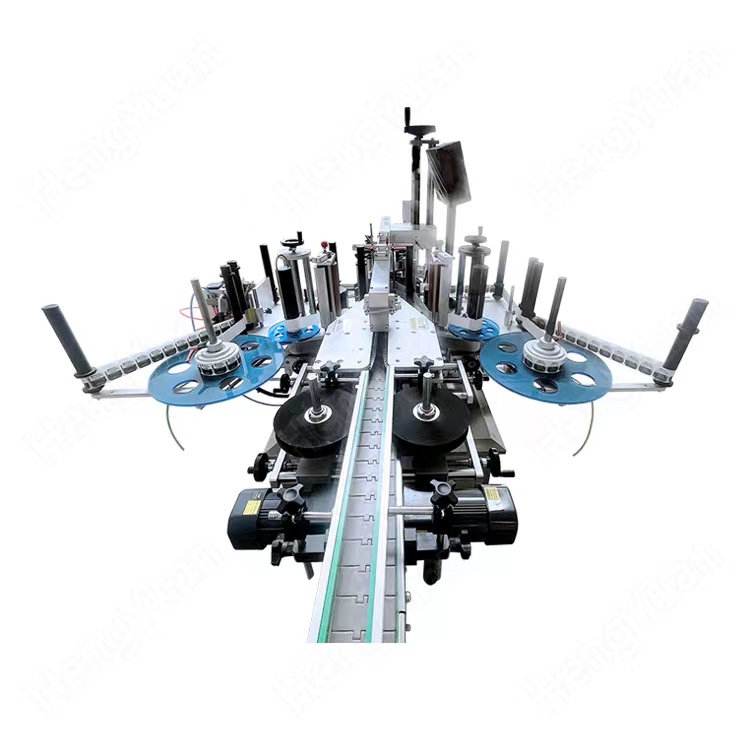

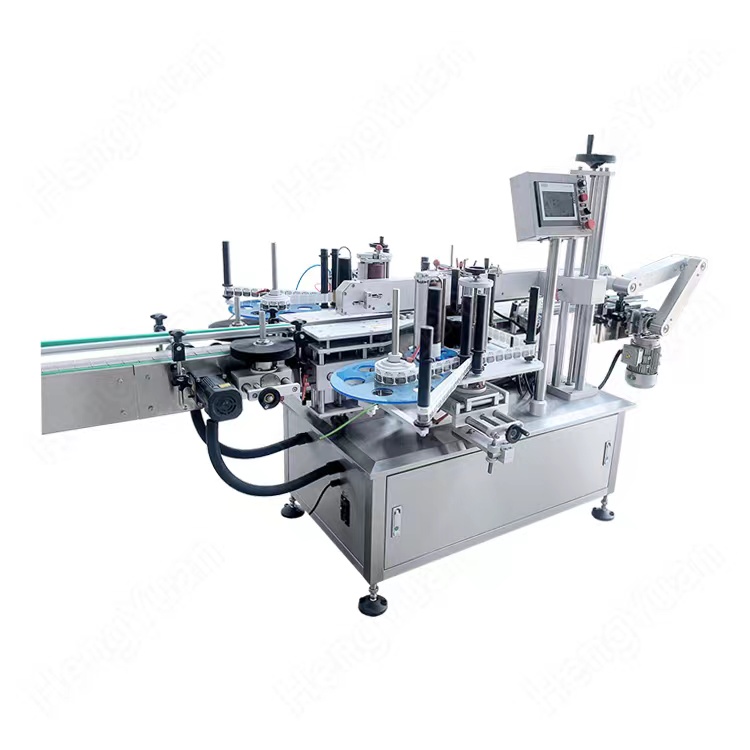

HYTB2-150FB-RC Multi-functional Automatic Flat and Round Bottle labeling machine pictures
HYTB2-150FB-RC Automatic Double-sided and Round Bottle Clamping Labeling Machine.jpg
HYTB2-150FB-RC Automatic Double-sided and Round Bottle Clamping Labeling Equipment.jpg
HYTB2-150FB-RC Automatic Two-sided and Round Bottle Clamping Labeling Machine.jpg
HYTB2-150FB-RC Automatic Double-sided and Round Bottle Clamping Labeler.jpg
HYTB2-150FB-RC Multi-functional Automatic Flat and Round Bottle Label Applicator sample
Automatic labeling machine, Double-sided sticker label applicator, Round bottle clamping labeling machine, Multi-fuctional sticker label applicator, Iodine Solution Bottles labeling machine, Glass jar labeling machine, Motor oil barrel label applicator, Glass bottle labeling equipment, etc.
HYTB2-150FB-RC Automatic Double-sided and Round Bottle Clamping Labeling Machine.jpg

Click here to view
HYTB2-150FB-RC Multi-functional Automatic Flat and Round Bottle Labeler running video on youtube
https://youtu.be/gVyO8PbLc1U
