Semi-automatic Heating Stirring Sauce Piston Filling Machine

  • Model: HYSP1-PU-1000H
  • Nozzles No.: 1pcs
  • Filling range: 50-500ml, 100-1000ml, 500-2000ml, 1000-5000ml customized
BASIC INFO
HYSP1-PU-1000H Desktop Heating Stirring Sauce Piston filling machine Technical Description

Semi-automatic desktop pneumatic piston mixed liquid / cream filling machine with stirring and heating hopper is designed according to the advantage technical. It is with simple structure, high Accuracyand easy to the operation. It is the best equipment to fill high thickness material and paste with granules. Accord to GMP, the parts which connect with material are all made of 304 stainless steel. Machine with filling volume adjustable handle, filling speed also can be changed as you like, high accuracy.

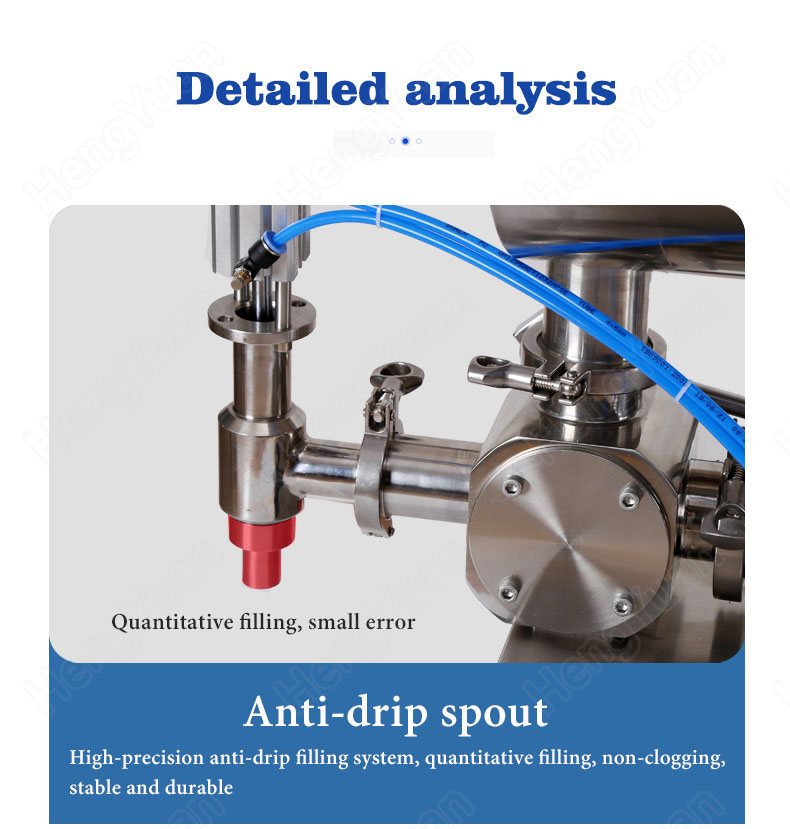

Filling nozzle designed with nondrip function. This series machine can be made single nozzle model, doubie nozzles model and full pneumatic explosion proof model.
Semi Automatic Pneumatic Piston Paste Liquid filling machine is mainly used for bottling of food, daily chemical, agricultural chemical, personal care and pharmaceutics industry.


Main Technical Data
Filling range
100-1000ml (10-100ml, 30-300ml, 50-500ml, 250-2500ml, 0.5-5L)
Filling nozzle outer diameter
Customized according to bottle mouth
Filling accuracy
≤±1%
Filling speed
500~1500 bottles/minute according to bottle filling volume

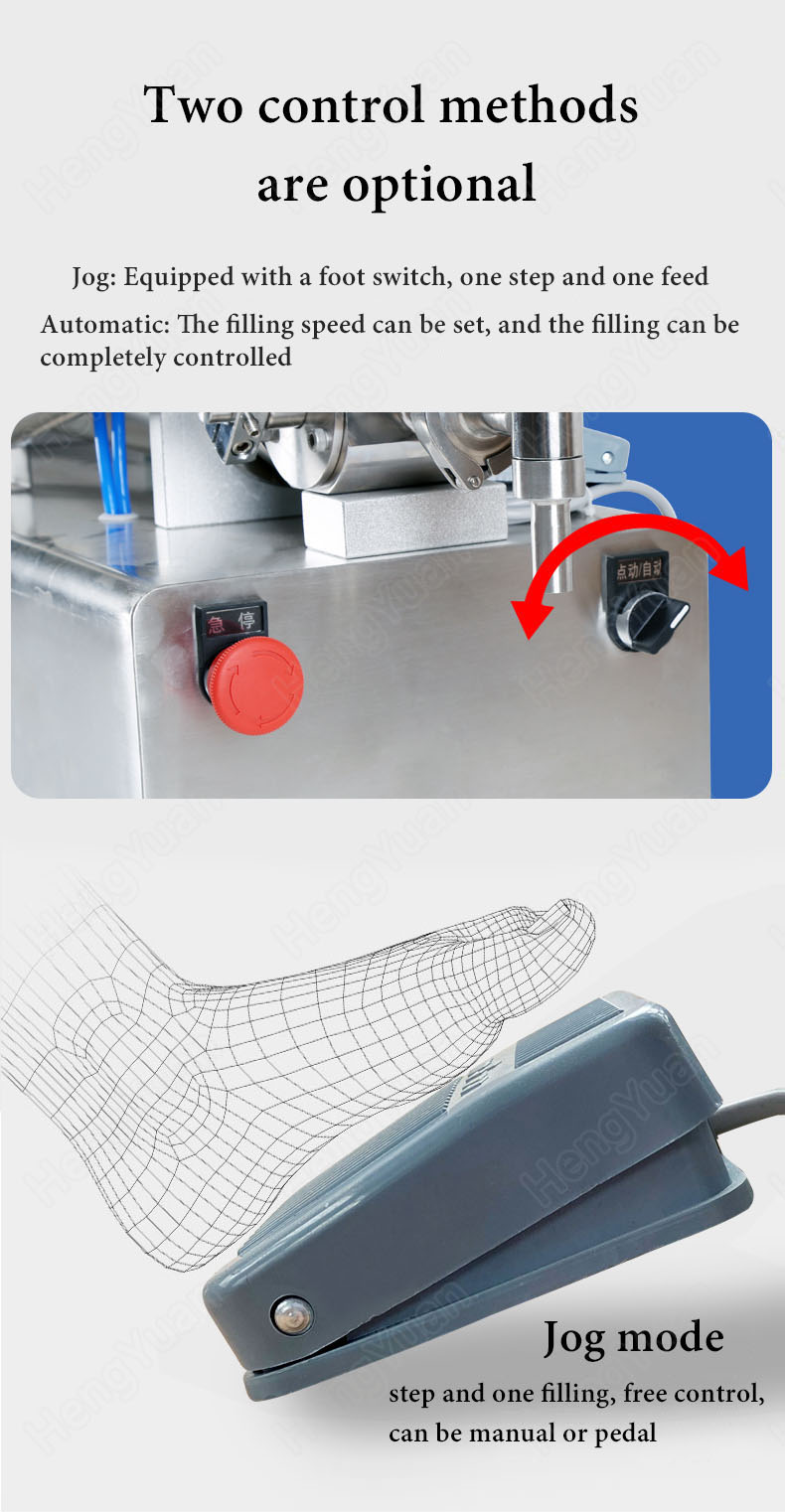

Control method
Pedal or automatic
Working air pressure
0.5-0.8Mpa
Operation voltage
220V or 110V, Single phase
Electricity consumption
1.6Kw
Hopper size
80L, 100L can be customized

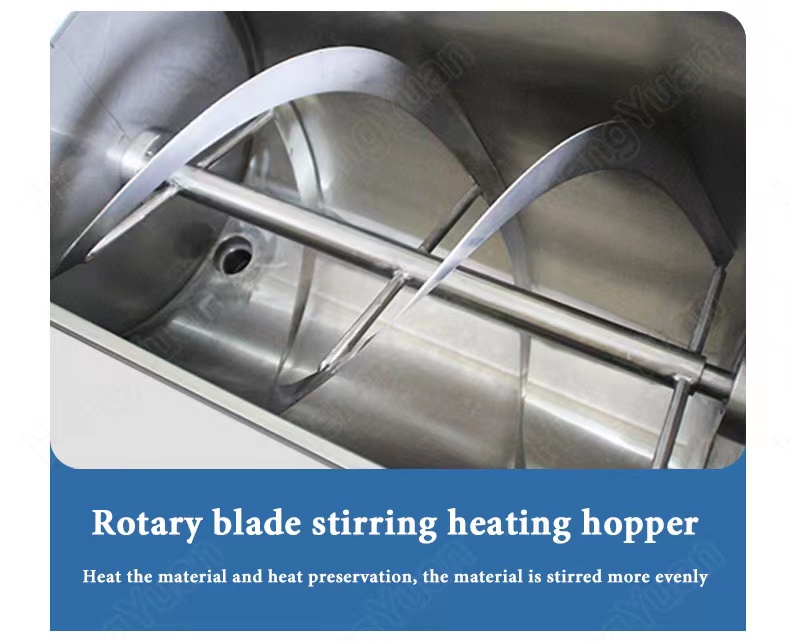

Hopper function
Stirring and heating

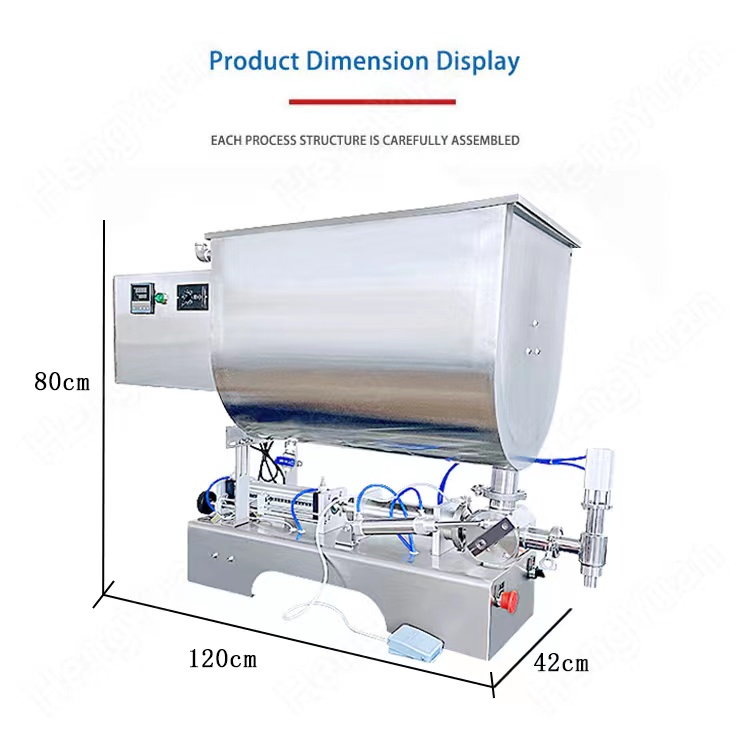

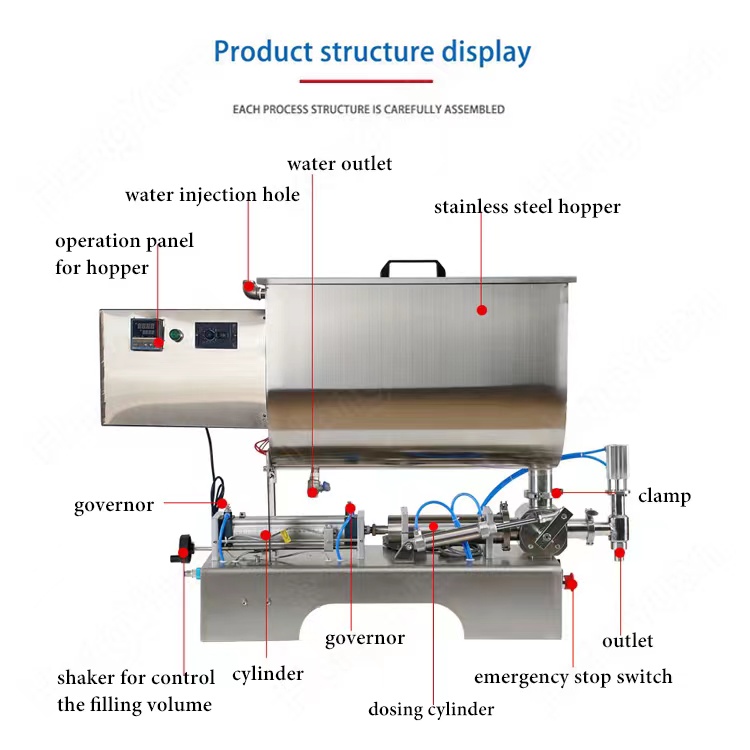

HYSP1-PU-1000H Desktop Heating Stirring Sauce Piston filling machine Pictures

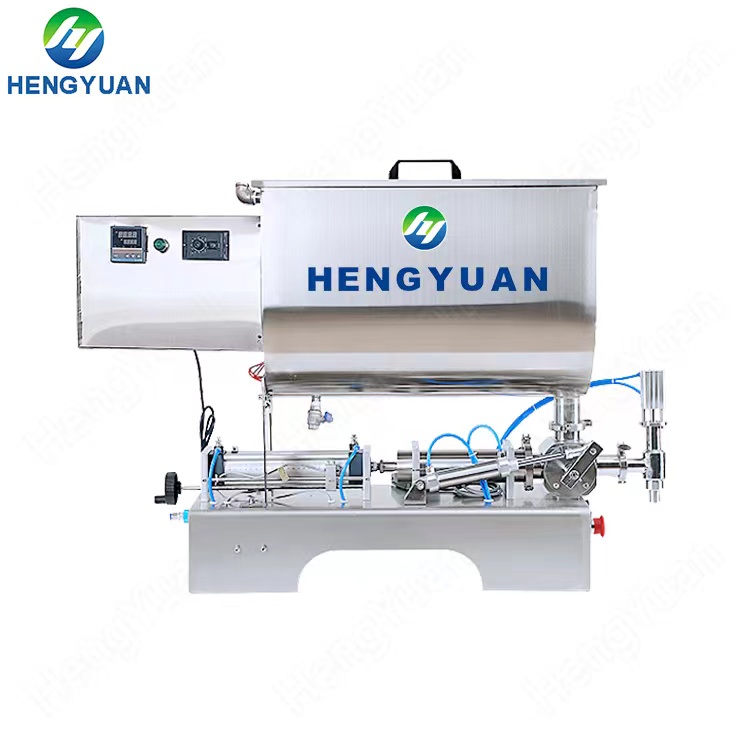

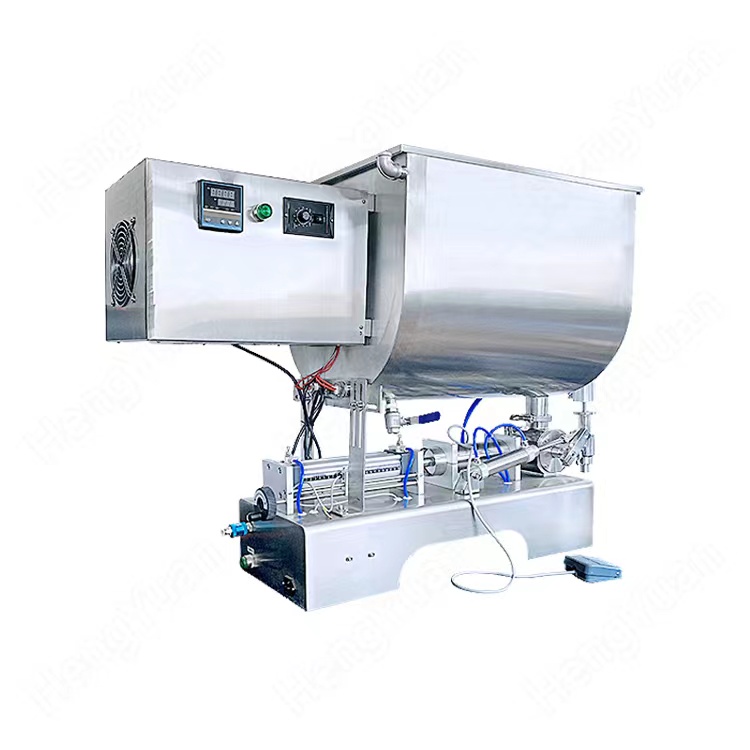

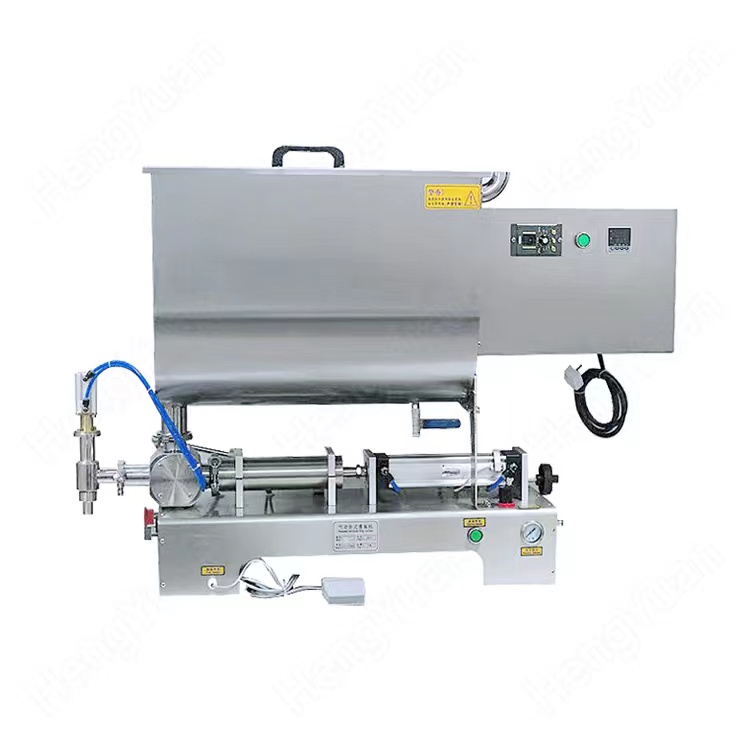

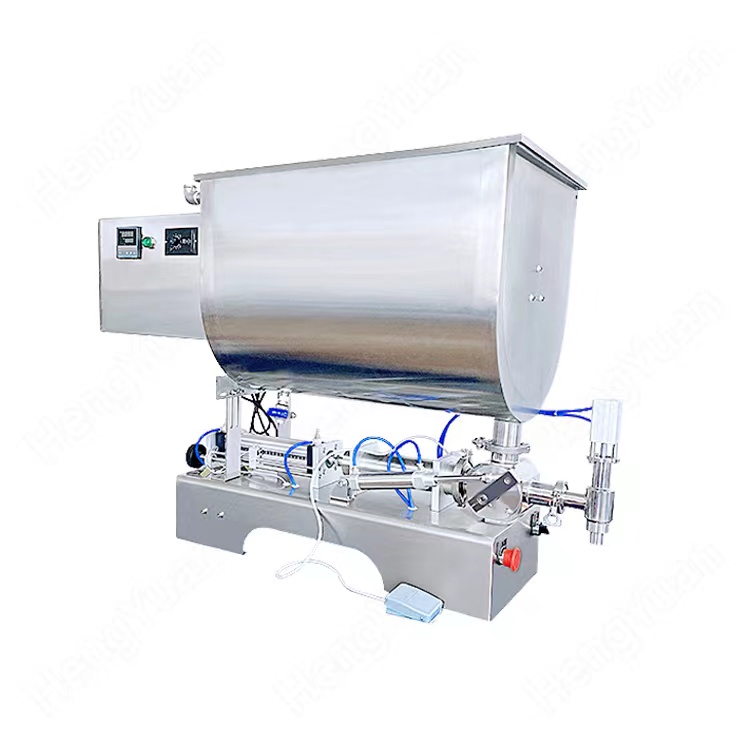

HYSP1-PU-1000H U Shape Hopper Mixing Heating Pneumatic Piston Filling Machine.jpg
HYSP1-PU-1000H Table Top U Shape Hopper Mixing Heating Pneumatic Piston Filling Machine.jpg
HYSP1-PU-1000H Desktop U Shape Hopper Mixing Heating Pneumatic Piston Chili Sauce Filling Machine.jpg
HYSP1-PU-1000H Desktop U Shape Hopper Mixing Heating Pneumatic Piston Chili Sauce Filling Machine.jpg
HYSP1-PU-1000H Semi-automatic Hopper Mixing Heating Pneumatic Piston Filling Machine.jpg
HYSP1-PU-1000H Table Top U Shape Hopper Mixing Heating Beef Sauce Filling Machine.jpg
HYSP1-PU-1000H Desktop U Shape Hopper Mixing Heating Pneumatic Piston Sauce Dispensing Machine.jpg


HYSP1-PU-1000H Table Top U Shape Hopper Mixing Heating Pneumatic Piston Sauce Filler.jpg
HYSP1-PU-1000H Desktop Mixing Heating Pneumatic Piston Sauce Filling Machine.jpg
HYSP1-PU-1000H Table Top Mixing Heating Pneumatic Piston Ketchup Filling Machine.jpg
HYSP1-PU-1000H Desktop Mixing Heating Pneumatic Piston Semi-automatic Filling Machine.jpg
HYSP1-PU-1000H Desktop Material Mixing Heating Pneumatic Piston Sauce Filling Machine.jpg
HYSP1-PU-1000H Desktop Pneumatic Piston Granuled Sauce Filling Machine.jpg

HYSP1-PU-1000H Semi-automatic Heating Stirring Sauce Piston filling machine is suitable for below bottle samples
10-5000ml customized single-head granules mixed heated viscous sauce filling machine.
For examples: Beef paste filling machine, chilli sauce filling machine, soybean paste filling machine, pepper paste filling machine, sesame seasoning oil filling machine, hotpot base dispensing machine, vegetable paste filling machine, meat soap mixing filler, etc. any liquid, half-flowing liquid, viscous cream, with or without granules, semi-automatic desktop sauce dispenser, liquid filler, refill equipment.
HYSP1-PU-1000H Desktop Material Mixing Heating Pneumatic Piston Sauce Pouch Filling Machine.jpg
Click here to view HYSP1-PU-1000H Desktop Heating Stirring Sauce Piston filling machine running video on YouTube
https://youtu.be/F1nmyJGyx2g
