Star Wheel High Speed Filling Plugger Capping Machine

MODEL: HYG4P2S2-100
Nozzles No.: 2-4pcs customized
Inner Plugger Station: 2Station
Outer Cap Station: 2Station

BASIC INFO

Technical Description

Automatic filling plugging capping machine is mainly available to fill eye-drop, electric-liquid into various round and flat plastic or glass bottles with the range from 10 to 100ml customized. High precision cam provides a regular plate to position, cork and cap, accelerating cam makes capping heads going up and down. Constant turning arm screws caps, creepage pump or piston measure filling volume and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

Main Technical Data

Filling Volume: 10-100ml
Productivity: 50-90bottles/min
Filling Precision: ≤±1%
Power Supply: 220V/50Hz or customized
Capping Rate: ≥99%
Stoppering rate: ≥99%
Air Supply: 2m3/h 0.4-0.8Mpa
Power: 2.0 kw
Weight: 600 kg
Dimension: 2000*1450*1650mm

Automatic E Liquid or Eye Drop Bottle Filling Plugging Sealing Machine Pictures

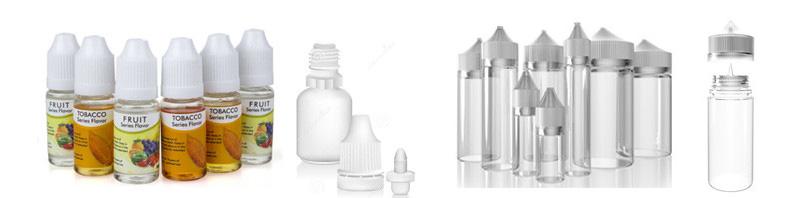

Star Wheel Filling Plugging Sealing Machine is suitable for below bottle samples

e liquid filling machine, eye drop bottle filling machine

Click here to view E liquid Bottle Unscrambling Filling Plugging capping machine running video on YouTube

https://youtu.be/NV3ZYDAzQXU
