BASIC INFO
Technical Description
Automatic inline piston filling machine is for different viscous liquid and cream with different bottle or jars. Through PLC, and servo motor, it can be changed to fill different volume on touch screen. No bottle no filling. The above mentioned parts are made of stainless steel 304. The body of pump is made of stainless steel 304 for chemical liquid, and SUS316 for food liquid. Piston filler is suitable for bottles like square bottles, round bottles, special shaped bottle, totally matching GMP requirements.
Automatic Piston Type Liquid filling machine 100ml is mainly used for bottling of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.
Main Technical Data
Inline Piston filling machine Pictures
Inline Piston filling machine is suitable for below bottle samples
facial cream filling machine, pesticides filling machine, daily intimate wash filling machine, sunscreen cream filling machine, emulsion filling machine, eye cream filling machine, eyeglass care fluid filling machine, cough mixture filling machine, syrup filling machine, nasal spray filling machine
Click here to view Automatic Inline Piston filling machine running video on YouTube
https://youtu.be/Hx277qN9Ua4
Contact us to get more information and quotation
Automatic inline piston filling machine is for different viscous liquid and cream with different bottle or jars. Through PLC, and servo motor, it can be changed to fill different volume on touch screen. No bottle no filling. The above mentioned parts are made of stainless steel 304. The body of pump is made of stainless steel 304 for chemical liquid, and SUS316 for food liquid. Piston filler is suitable for bottles like square bottles, round bottles, special shaped bottle, totally matching GMP requirements.
Automatic Piston Type Liquid filling machine 100ml is mainly used for bottling of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.
Main Technical Data
- Filling range: 20-100ml
- Diameter of bottle: Φ20mm~Φ65mm
- Height of bottle: 25mm-150mm
- Filling accuracy: ±0.5%
- Output: ≤8000BPH
- Air resource: 0.6-0.8MPa
- Air consumption: 200L/h
- Power: 1.5KW/AC220V/380V/50Hz/60Hz Customized
- Weight: 400kg
- Size(LxWxH): 2000x1050x2300mm

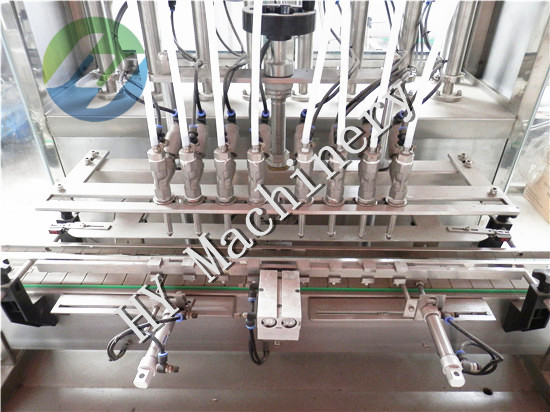

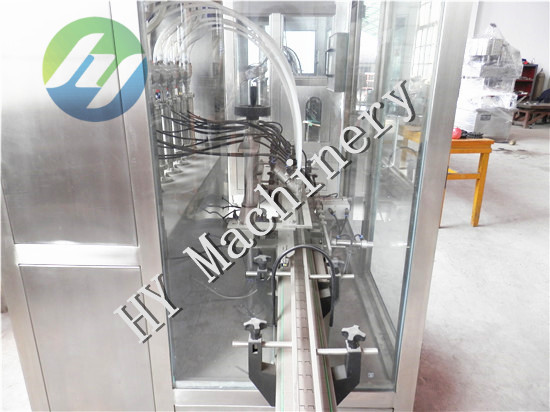

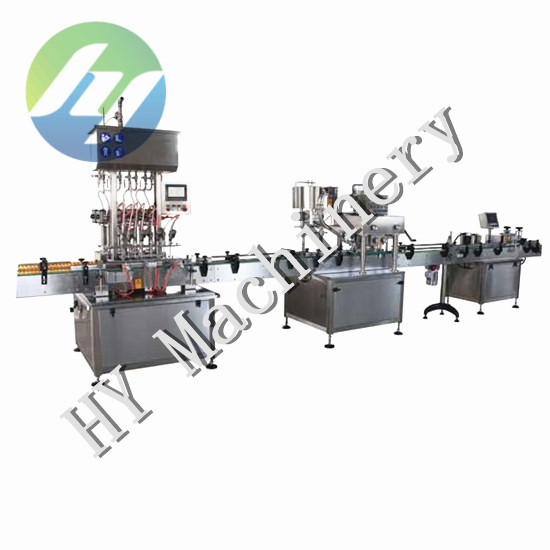

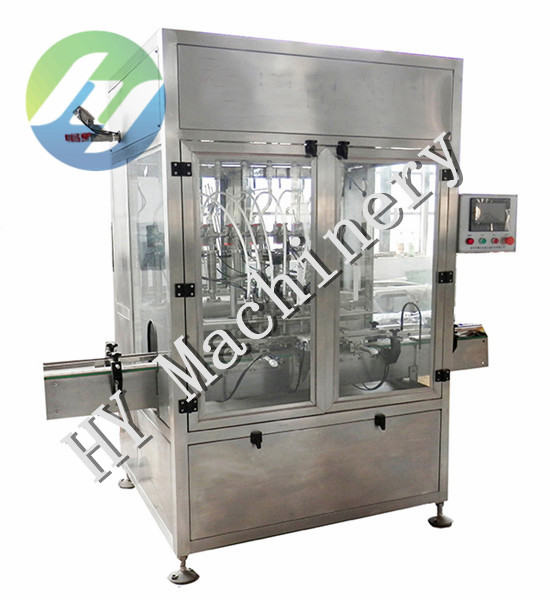

Inline Piston filling machine Pictures
Inline Piston filling machine is suitable for below bottle samples
facial cream filling machine, pesticides filling machine, daily intimate wash filling machine, sunscreen cream filling machine, emulsion filling machine, eye cream filling machine, eyeglass care fluid filling machine, cough mixture filling machine, syrup filling machine, nasal spray filling machine
Click here to view Automatic Inline Piston filling machine running video on YouTube
https://youtu.be/Hx277qN9Ua4
Contact us to get more information and quotation
- Email : sales@myhymachinery.com or hymachinery01@gmail.com
- Skype: hymachinery01@hotmail.com
- WhatsApp: +8613776804621
- Mobile: +8613776804621
