Automatic 5Liter Volume Piston Filling Machine

MODEL: HYPF-5000S
Nozzles No.: 1-8pcs customized

BASIC INFO

Technical Description

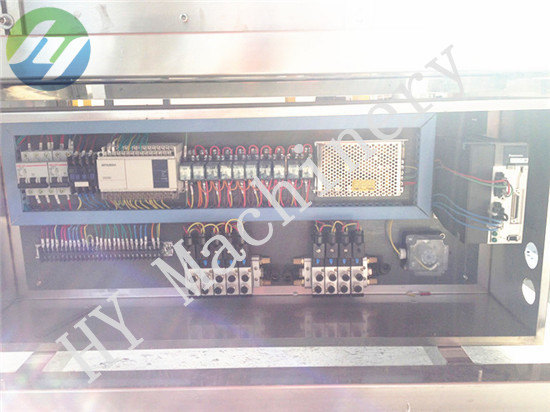

Inline piston filling machine is for different viscous liquid and cream with different bottle or jars. Through PLC, and servo motor, it can be changed to fill different volume on touch screen. No bottle no filling. It can be used for shampoo, liquid soap and other liquid of chemical industry.

Main Technical Data

Filling head no.: 2, 4, 6, 8 filling heads optional
Application bottlenecks: min60x60x100 mm, max140x200x340 mm
Measurement accuracy: ±1 %
Canned capacity: 1000-5000 ml
Capacity: 200-1500 bottles/hour
Air pressure: 0.7-0.9 MPa
Gas consumption volume: 500 liters/minute
Power supply: 380V/50 Hz or customized according to client request
Total power: 2 kw
Dimension: 2000×850×2200 mm
Weight: 800 kg

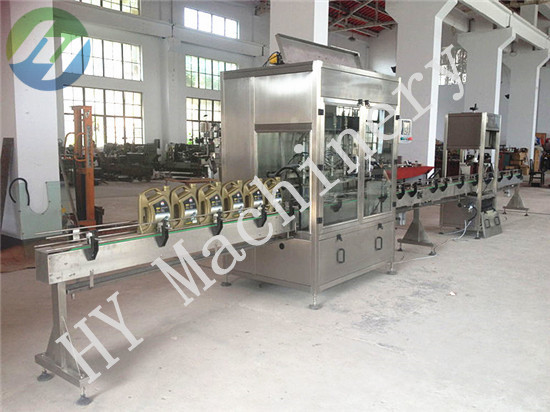

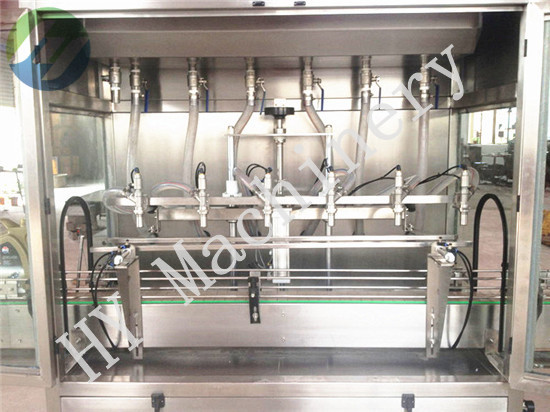

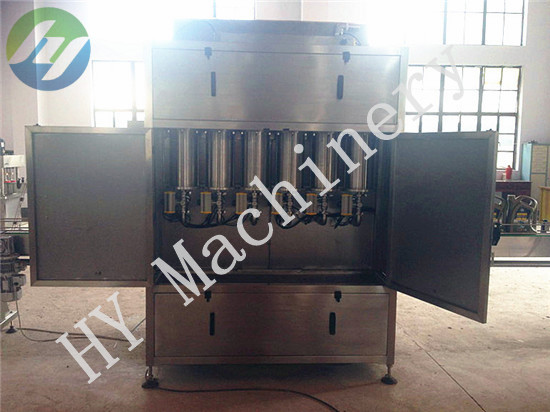

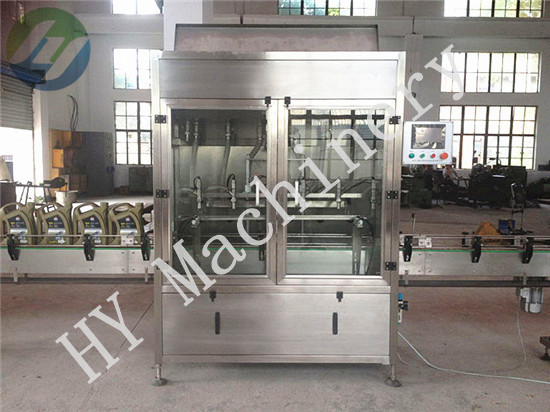

Inline Piston filling machine 5 Liter Volume Pictures

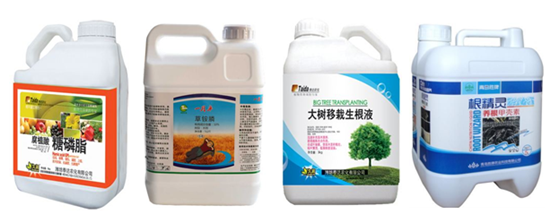

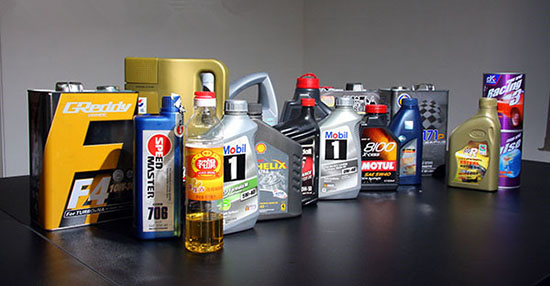

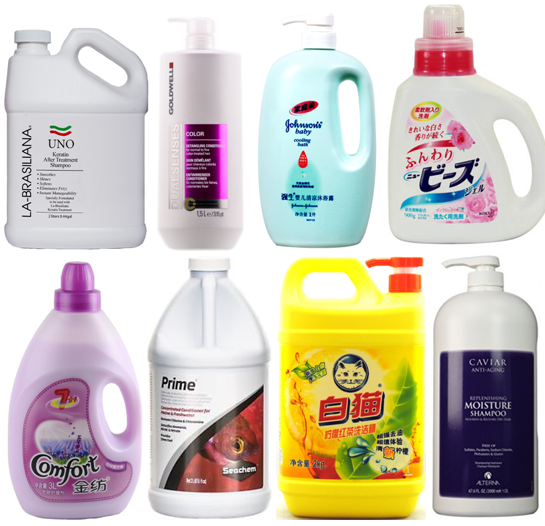

Inline Piston filling machine 5Liter Volume is suitable for below bottle samples

Shampoo filling machine, Conditioner filling machine, Body Lotion filling machine, Laundry Detergent filling machine, Cleanser Essence filling machine

Engine Oil filling machine, Antifreeze Liquid filling machine, Pesticides filling machine, Suspending Agent filling machine, Emulsifiable Concentrate filling machine, Liquid Fertilizer filling machine, Seed Dressing Agent filling machine

Click here to view Automatic Inline Piston filling machine running video on YouTube
https://youtu.be/YxVvNZ-4HHg
