Automatic Bottle Mouth Shrink Sleeve Labeling Machine

  • Model: HYTS-100
  • Suitable for: bottle mouth
  • Capacity: 3000~5000BPH
BASIC INFO

HYTS-100 Bottle Mouth Automatic Shrink Sleeve labeling machine Introduction

Automatic Bottle Mouth shrink sleeve labeling machine is a intelligent equipment which adopts HMI touch screen, PLC programmable controller, imported servo motor, servo driver and frequency converter. Besides, it adopts the positioning module to ensure the casting label precise, rapid and stable. It not only has a highly precise position for casting label, but also can withstand the perfect shape of the bottle after shrinkage. It is matched with electrical or steam heating oven. Automatic shrink sleeve label applicator is widely used in food industry, pharmaceutical industry, daily chemical industry, chemical industry, daily necessities field, etc.

Main Technical Data

Sleeve label putting machine
Labeling capacity 3000~6000BPH. speed depends on bottle length
Pass rate ≥98%
Bottle width 28 mm ~300 mm customized
Bottle length 28 mm ~ 300 mm customized
Bottle height 50 mm -350 mm customized
Applicable labels PVC, PET, OPS Shrink Sleeve Label in Roll
Label length 30mm ~250mm
Label thickness 0.035mm ~0.13mm
Transparent space between labels ≥5mm
Inner diameter of core label roll ≥5’’(127mm)
Outer diameter of label roll ≤500mm
Input voltage Three phases, AC 380V / 220V, 50/60Hz customized
Power  2Kw
Dimensions 150(L)×85(W)×180(H)cm
Weight 200Kg
Steam Shrinkage Furnace
Input voltage Three phases, AC 380V / 220V, 50/60Hz customized
Blower power 6Kw
Steam source pressure 1-8Kg/cm2
Steam consumption 10Kg/H
Dimensions 100(L)×50(W)×130(H)cm
Weight 60Kg
Electrical Shrinkage Furnace
Steam Shrinkage Furnace Three phases, AC 380V / 220V, 50/60Hz customized
Power 6Kw
Dimensions 100(L)×50(W)×130(H)cm
Weight 60Kg


HYTS-100 Bottle Mouth Automatic Shrink Sleeve Labeling Machine pictures

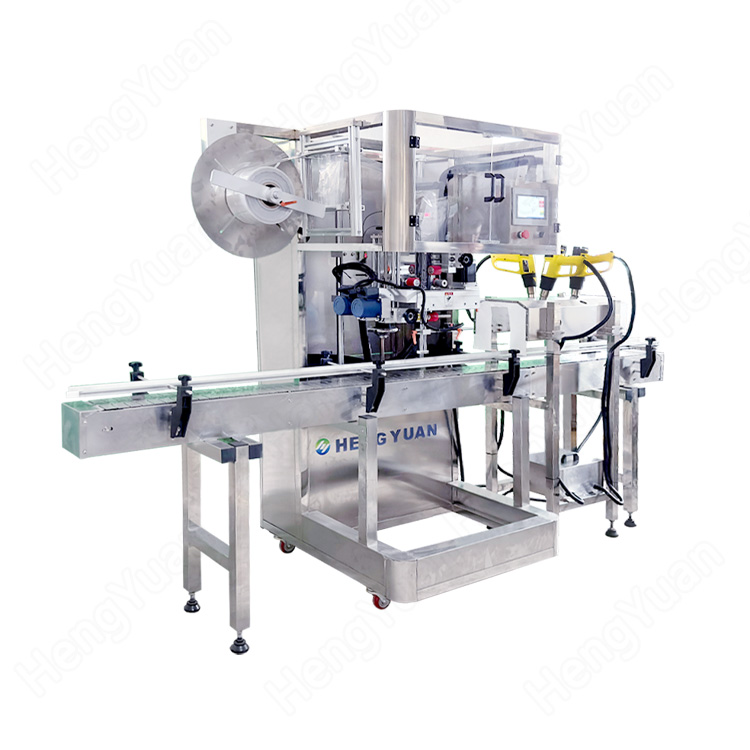

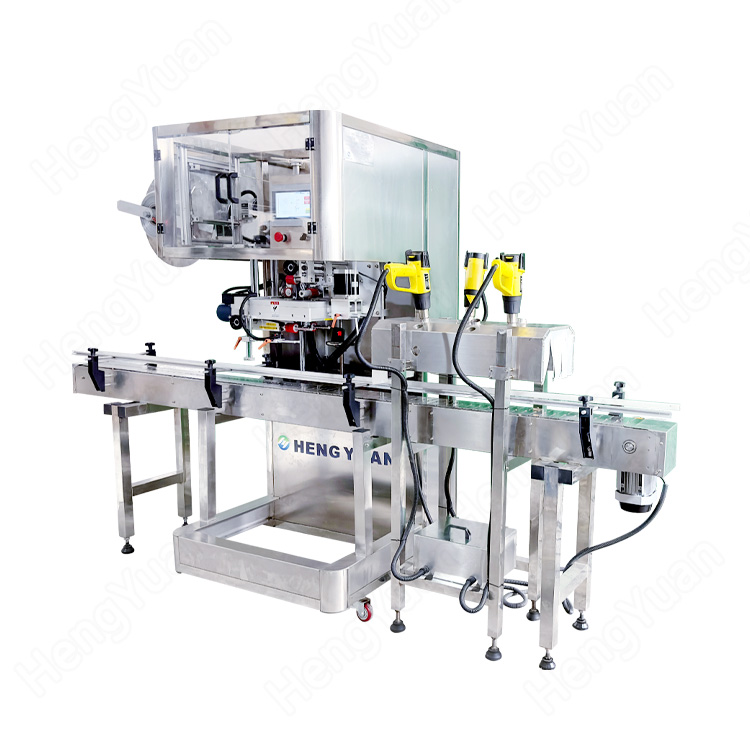

HYTS-100 Automatic Bottle Mouth Shrink Sleeve Labeling Machine.jpg

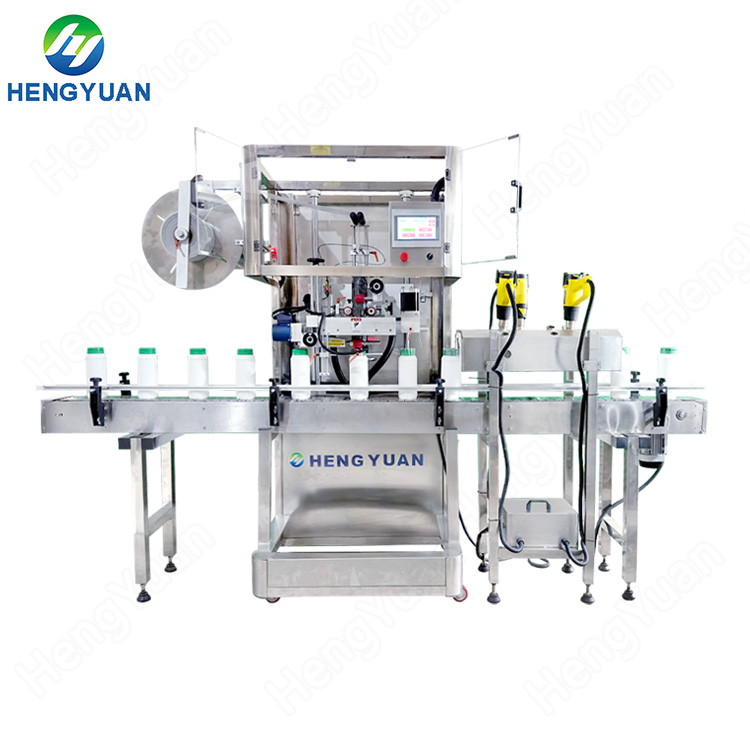

HYTS-100 Automatic Bottle Mouth Shrink Sleeve Label Applicator.jpg
Automatic 5 Gallon Barrel Mouth Shrink Sleeve Labeling Machine HYTS-100.jpg

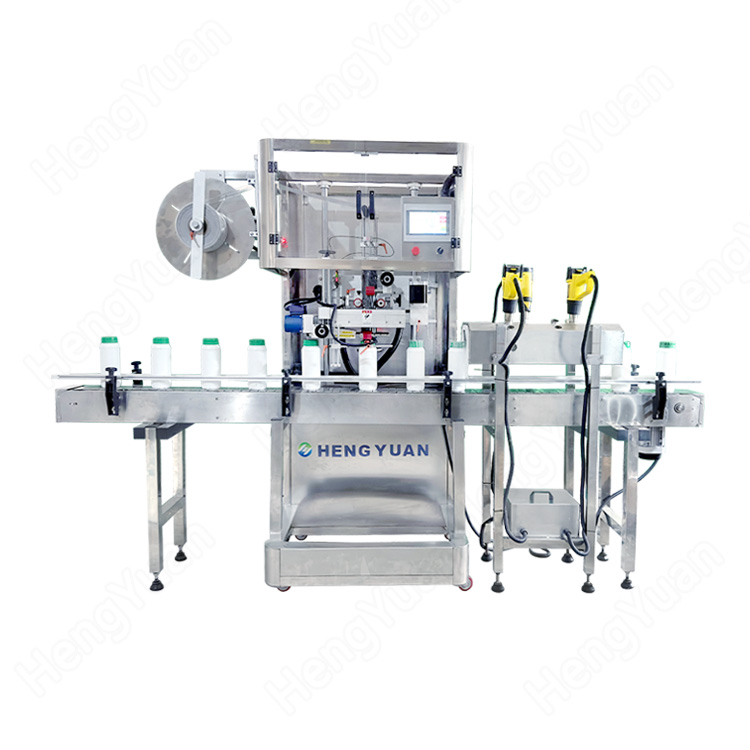

Automatic Shrink Sleeve Labeling Machine HYTS-100 for Bottle Mouth .jpg

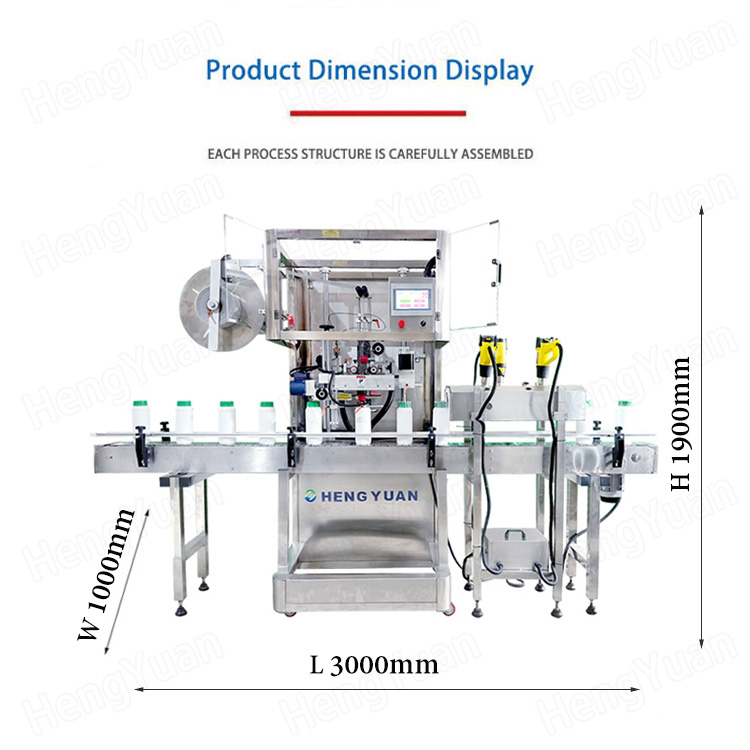

Automatic Bottle Mouth Shrink Sleeve Labeling Machine Dimension HYTS-100.jpg

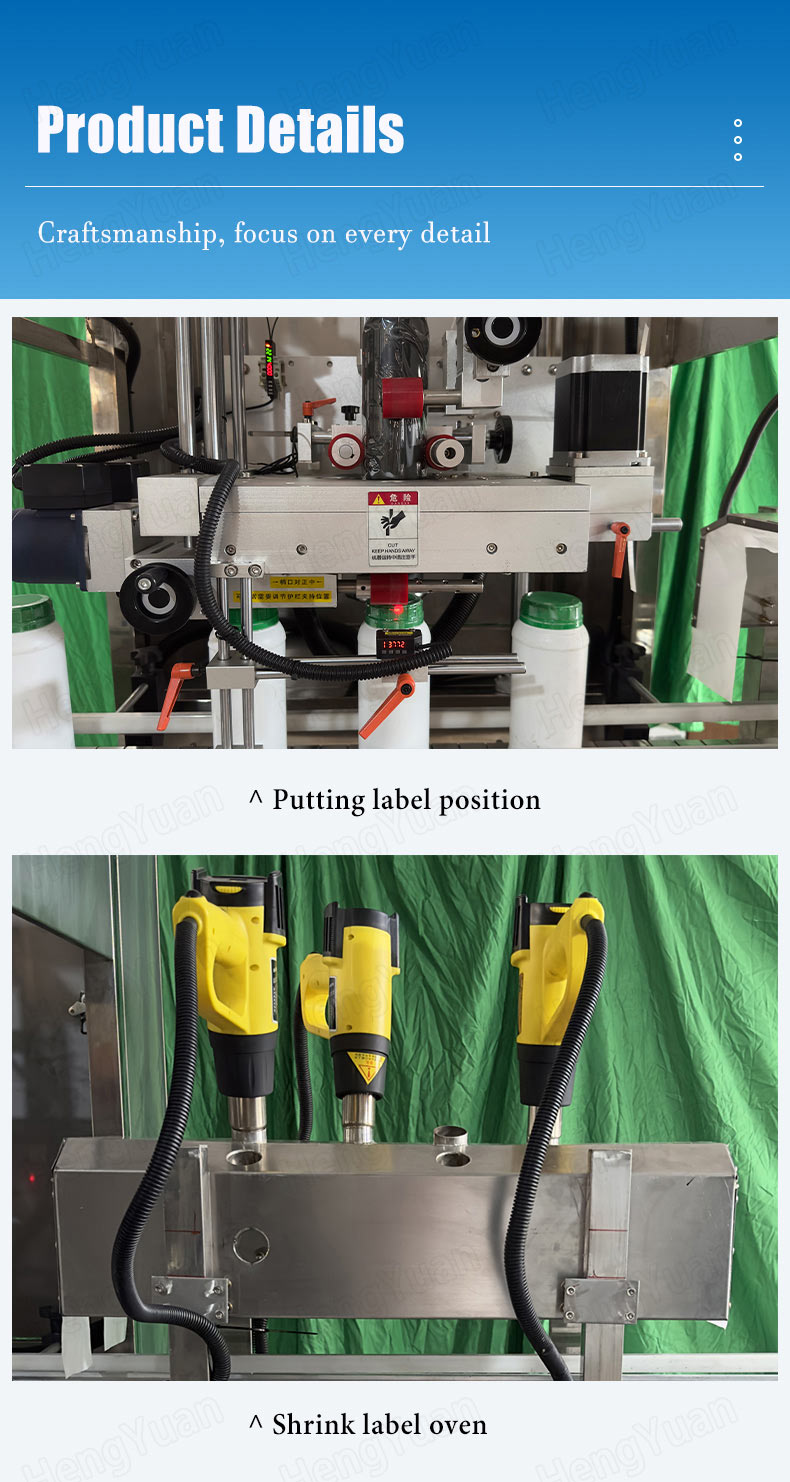

HYTS-100 Automatic Bottle Mouth Shrink Sleeve Labeling Machine Details.jpg
HYTS-100 Automatic Bottle Mouth Shrink Sleeve Labeling Equipment.jpg

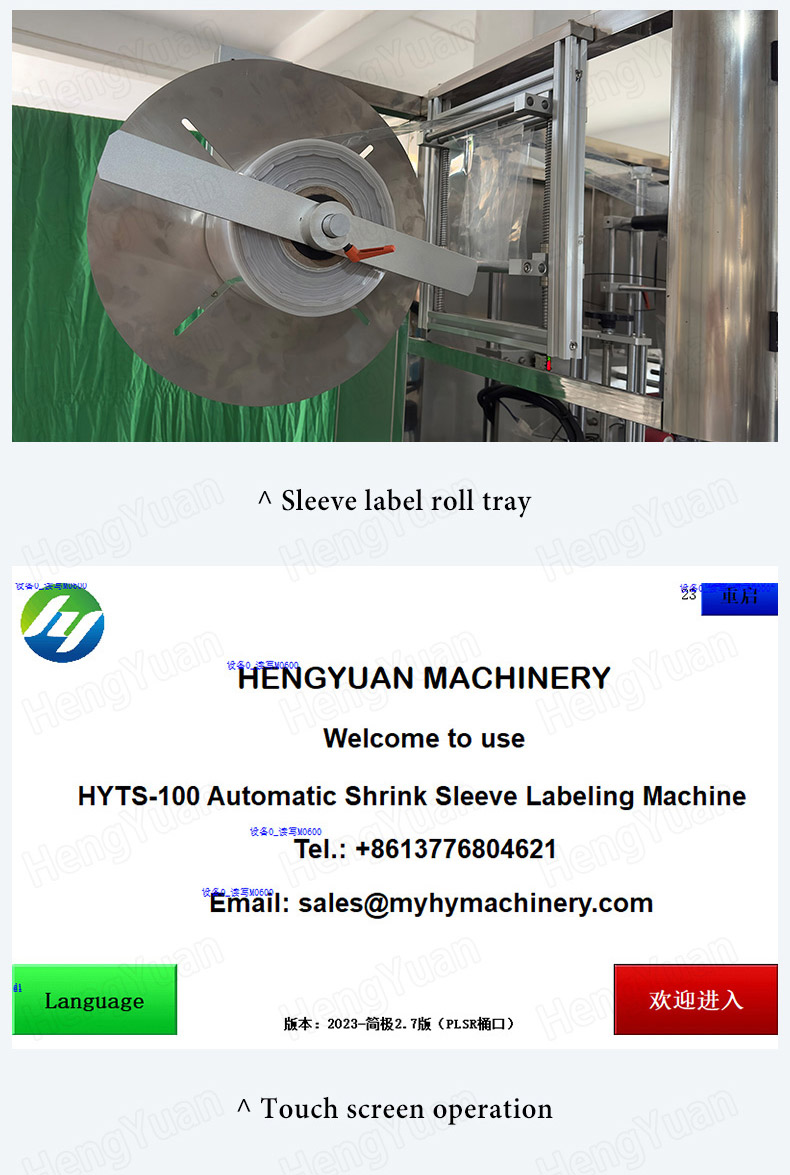

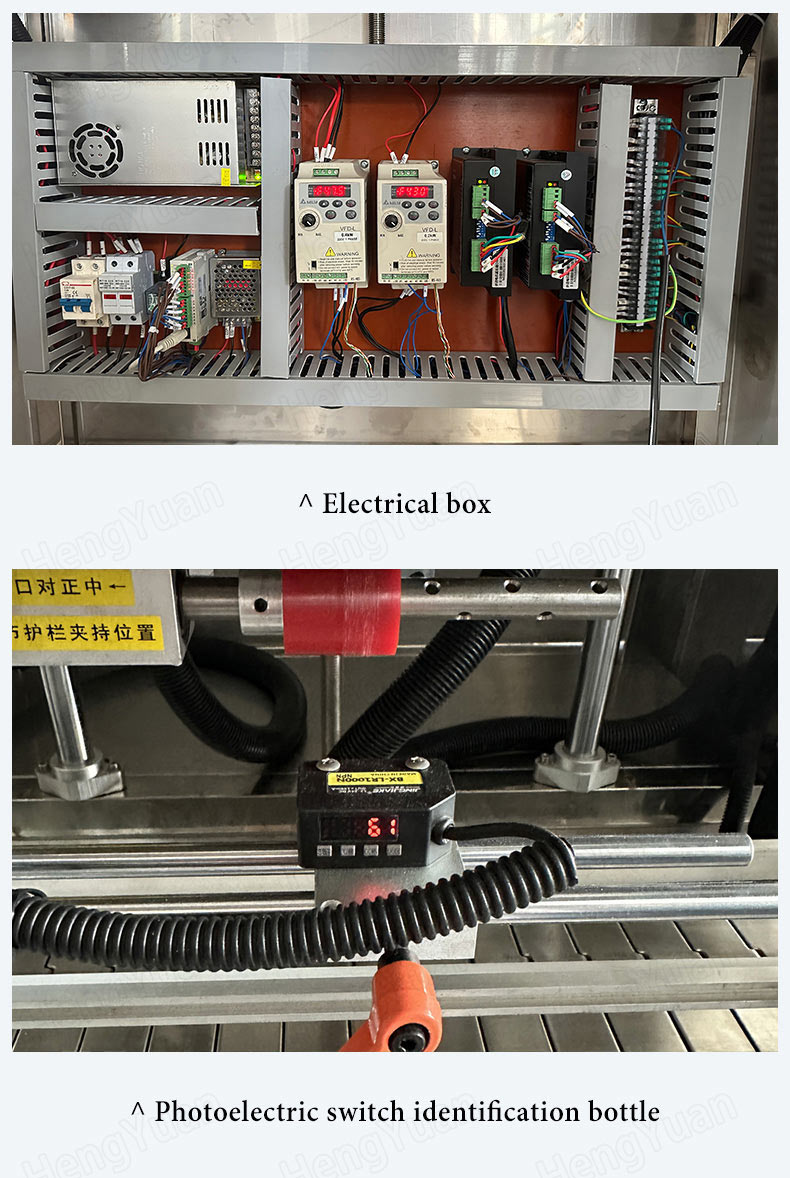

HYTS-100 Automatic Bottle Mouth Shrink Sleeve Labeling Machine detailed parts

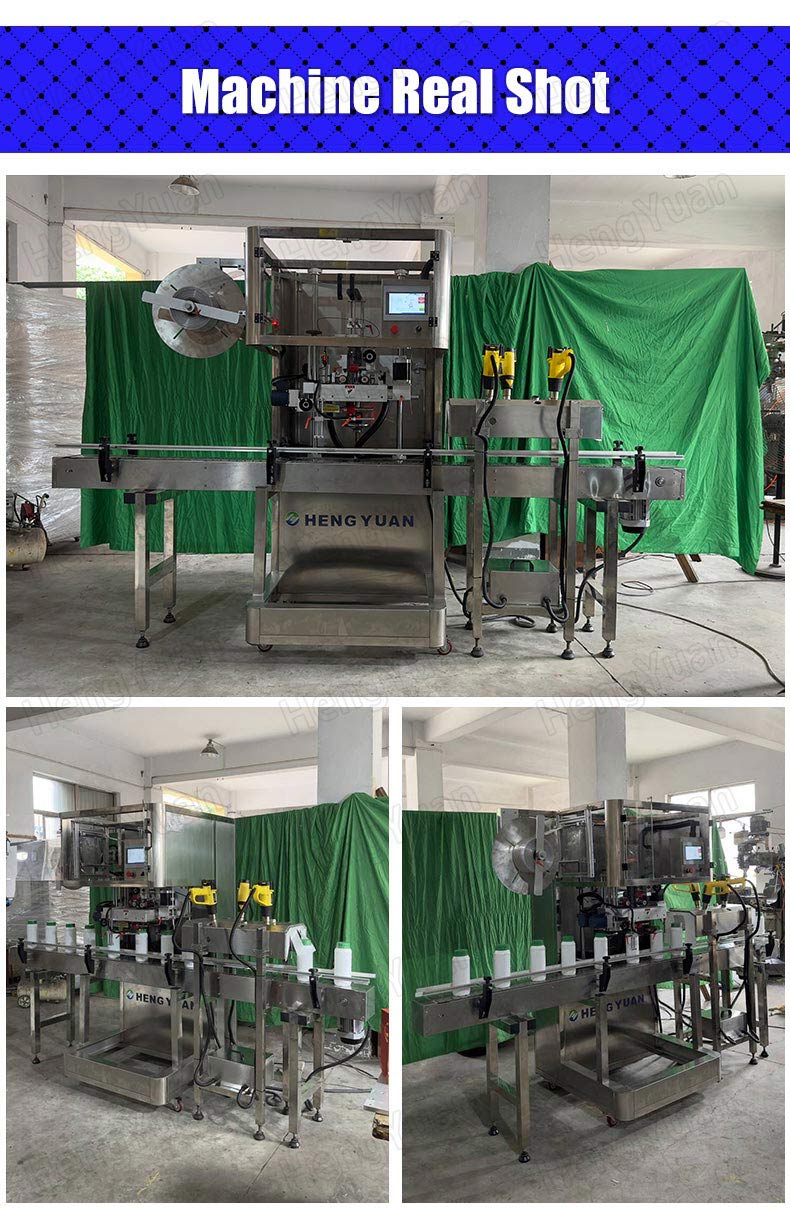

HYTS-100 Automatic Bottle Mouth Shrink Sleeve Labeling Machine Real Shot


HYTS-100 Shrink Sleeve labeling machine for Bottle Mouth Application

It is suitable for various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped, pet bottles, plastic bottles, glass bottles, jars, cans, aluminum bottles, containers, etc. Such as plastic bottle mouth shrink sleeve labeling machine , glass jars mouth shrink sleeve labeling machine, 5 gallon water barrel mouth shrink sleeve labeling machine, sauce glass jar mouth shrink sleeve labeler, ketchup bottle mouth shrink sleeve labeling machine, pesticide bottle mouth shrink sleeve labeling equipment, liquid seasoning bottle mouth shrink sleeve labeler, etc.
HYTS-100 Automatic Bottle Mouth Shrink Sleeve Labeling Machine



Click here to view HYTS-100 Bottle Mouth Shrink Sleeve labeling machine running video on YouTube
https://youtu.be/HGriGvrPz8o?si=dqoW5pBF8LOmw6wT
