Automatic Cartoning Machine

  • MODEL: HYCM-100
Technical Description

Automatic cartoning machine is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for cardboard case packaging of medicine bottles (round, square),cosmetic ,food into carton in a range. The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine, etc to form a production chain.
Main Features
  • International famous brand of electrical component such as PLC touch screen, frequency inverters, etc
  • Adopt human-machine operation system.
  • Automatically displaying device for trouble, speed and finished products counting.
  • Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
  • No products not suction leaflet, no leaflet not suction carton .
  • Automatic detection and rejection device for lacking blister goods and leaflets
  • Protecting automatically for overloading.
  • stable performance , operation is easy.
Main Technical Data
  • Production speed: 30-100pcs/min
  • Power supply: AC380V 50Hz, others are customized
  • Total power: 1.5KW
  • Folding machine speed: 30-100pcs/min
  • Air consumption: 20m3/h(Pressure 0.5-0.7mpa)
  • Packaging material: box weight 250-450g/㎡(according to box sizes)
  • Specification: Maximum(LxWxH)250x170x90mm, Minimum(LxWxH)50x20x15mm
  • Instructions: paper weight 55-65g/㎡
  • Specification: Maximum size(LxW)260x190mm, Minimum size(LxW)100x100mm
  • Demension: 3300x1350x1650mm
  • Weight: About 1200KG

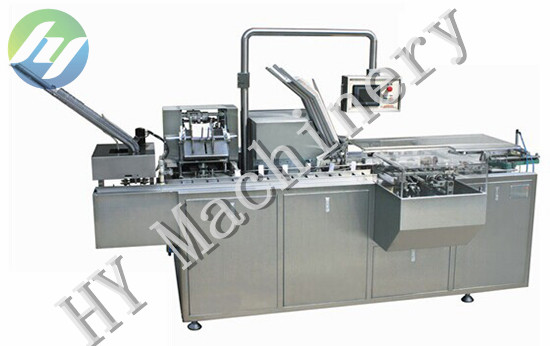

Automatic Cartoning Machine Pictures


Automatic Cartoning Machine is suitable for below samples
