Automatic Double Heads Pneumatic Piston Sauce Filling Machine

Model: HYAP2-10TMHS
Nozzles No.: 1pc
Standard filling volume: 100-1000ml

BASIC INFO

Automatic Double Heads Pneumatic Piston Sauce filling machine Technical Description

The automatic sauce filling machine adopts piston type metering and integrates electromechanical and pneumatic components. Material hopper has heating and stirring function. The electrical and pneumatic components are selected from world-renowned brands, controlled by PLC, with novel design, compact structure and beautiful appearance. It has the characteristics of accurate measurement, stable and reliable performance, high degree of automation, simple operation and convenient maintenance. It is widely used in filling of various (including granule) sauces.

Main Technical Data

Model	HYAP2-10TMHS
Heads	2pc ( Other qty available )
Capacity (BPH)	200ml: Approx 2400
Volume	100-1000ml customized ( other volume is availabel )
Accuracy	≤±0.5%
Suitable Bottles	Height: 100-280mm, Diameter: Φ30-110mm, (can be customized)
Control method	Touch screen and PLC
Air supply	0.5-0.7Mpa
Volume of hopper	100L (with stirring function, and optional heating function)
Power supply	5.5kw (with heating)
Voltage	415V/380V/220V, Three Phases , 50/60Hz, customized globally

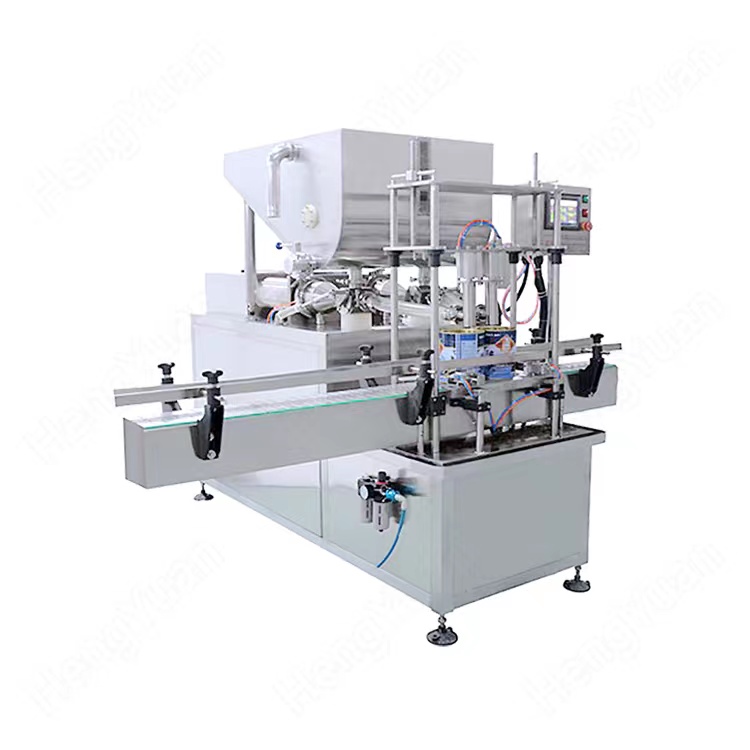

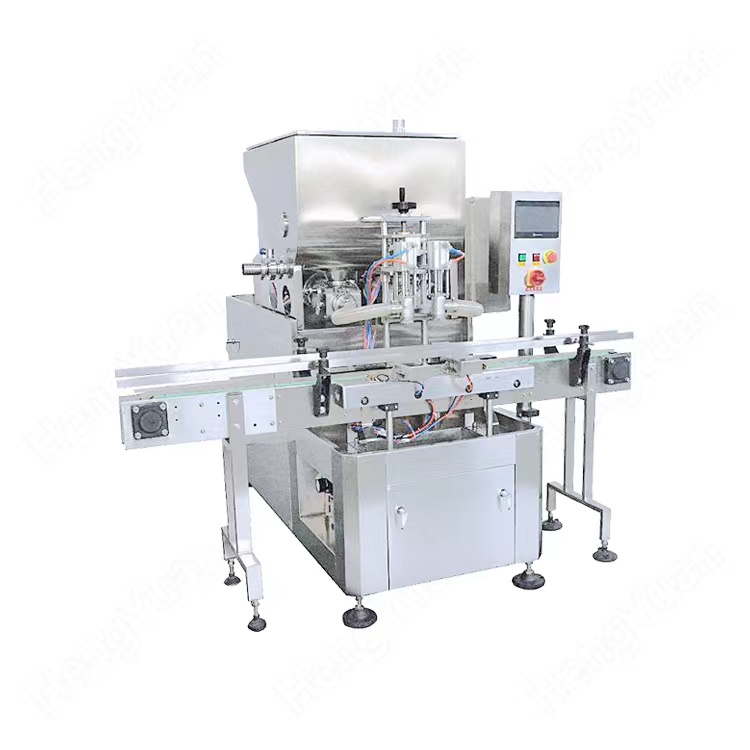

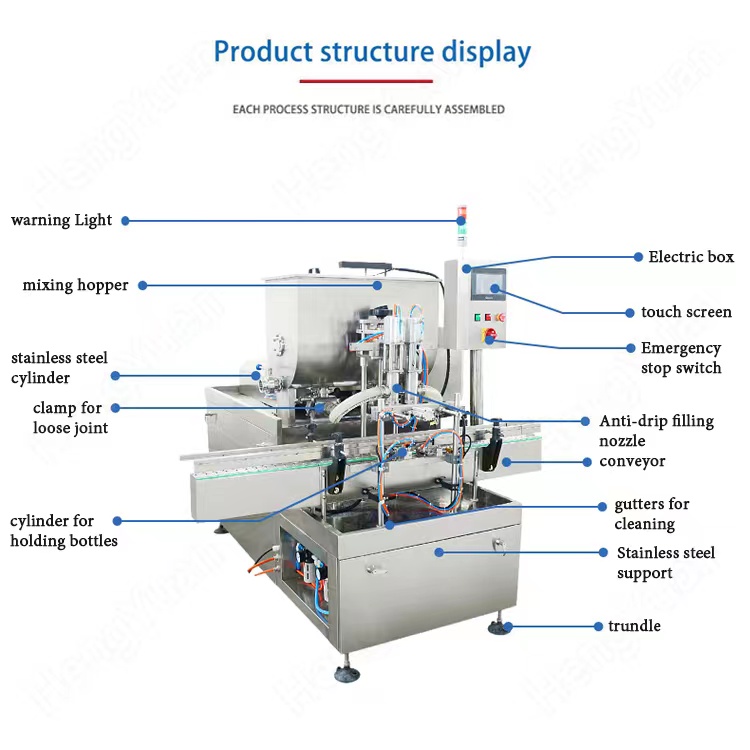

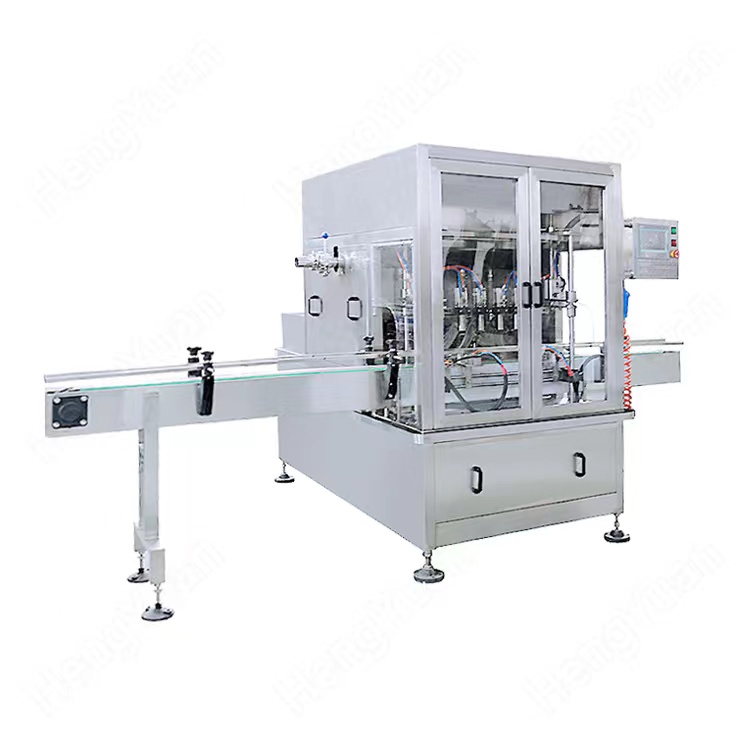

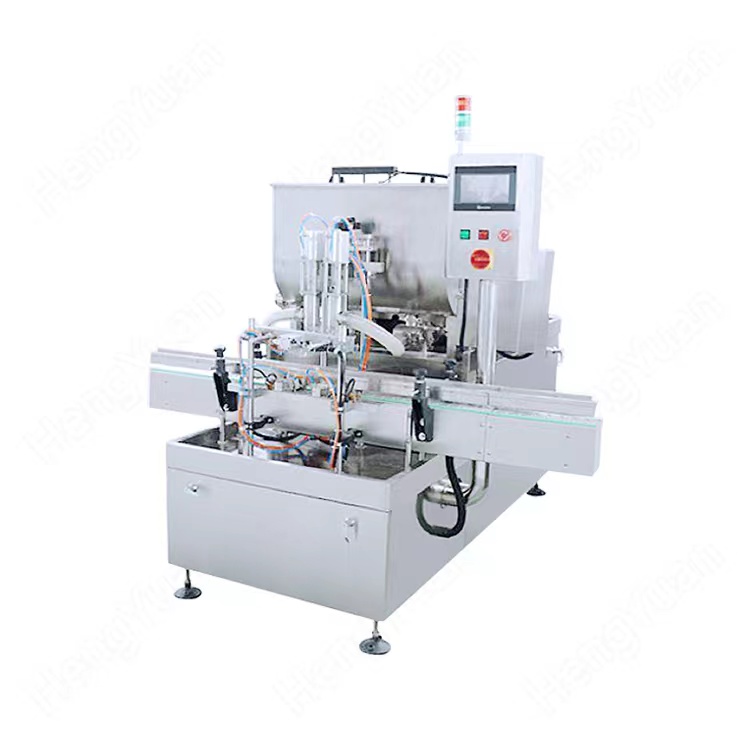

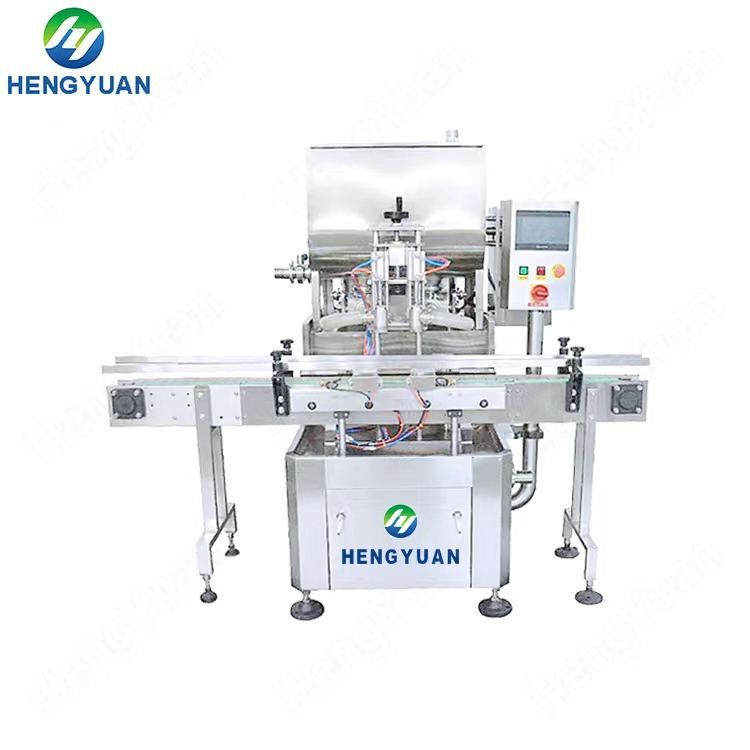

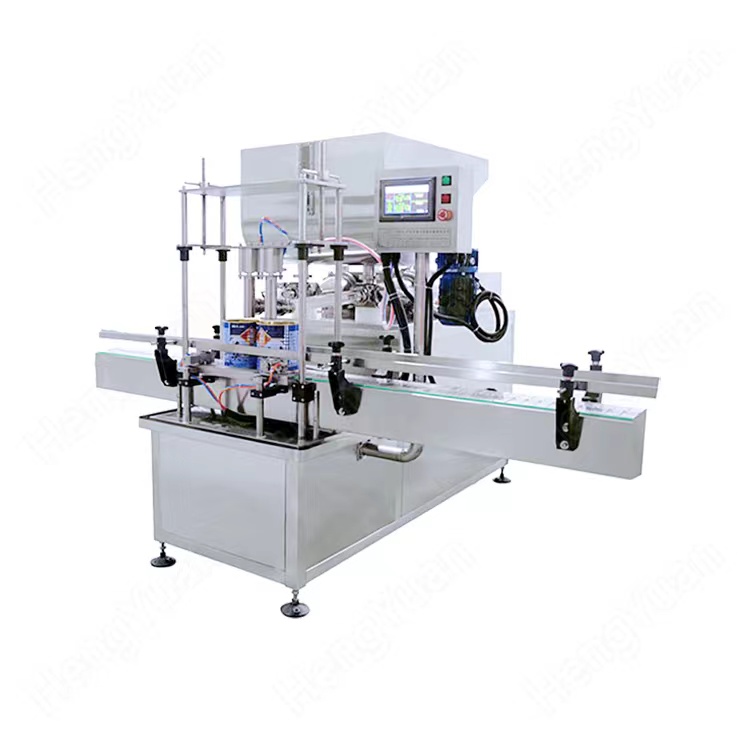

Automatic Double Heads Pneumatic Piston Sauce filling machine Pictures

China Automatic Food Sauce Two-headed Bottle Dispensing Equipments

HYAP2-10TMHS Automatic Food Sauce Two-headed Bottle Filler

Automatic Double Heads Pneumatic Piston Sauce filling machine is suitable for below bottle samples
Chili sauce filling machine, Beef paste filling machine, Mushroom sauce filling machine, Granuled sauce dispensing equipment, Soybean sauce filling machine, Pepper chili filler, sesame seasoning oil dispenser, hotpot base filling equipment, vegetable paste filling machine, meat soup dispenser, etc.

Click here to view Automatic Double Heads Pneumatic Piston Sauce filling machine running video on YouTube
https://youtu.be/MVPU8VUBtuQ
