Automatic Gravity Flowing Anti Corrosive Bottle Filling Machine

  • MODEL: HYGF-1000A
  • Nozzles No.: 1-20pcs customized
Technical Description
Automatic anti-corrosive filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable,equip with photo electricity tran sduction and pneumatic action.Contact liquid parts is use anticorrosive non-metallic material and with diving function ,can effectively eliminate the bubbles. This machine mainly use for packing of chemical products,such as detergent,bleaching, sulphuric acid84 disinfectant, gelwater, strong acid liquid fertilizer,can suits for packing of all kinds of bottle shape and irregular bottle.
Main Technical Data
  • Number of filling heads: 4,6,8,12,16,20 filling heads optional
  • Operation interface: Touchscreen
  • Measuring method: By time
  • Filling capacity: 50-1000ml or 1000-5000ml or 5000-10000ml or 10000-20000ml
  • Filling speed: 400-6000B/H
  • Filling error: ±1 %
  • Application bottle diameter: Acorrding to clients sample bottle
  • Liquid inlet method: Liquid transducer automatic control
  • Automatic: No bottle no filling
  • Suitable liquid: Liquid with good mobility
  • Air pressure: 0.60.8MPA
  • Gas consumption volume: 500 liters/minute
  • Power supply: AC380V/220V, 50HZ, 1.5KW
  • Dimension: 2000×900×2300 mm
  • Weight: 600kg

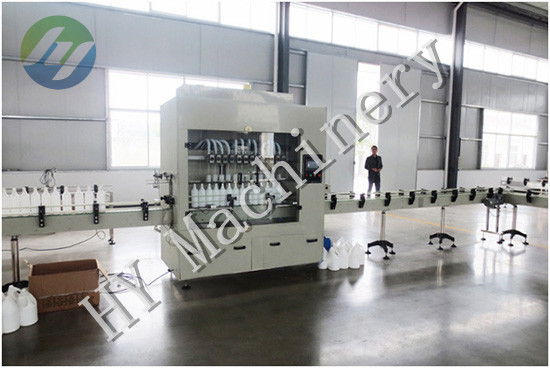

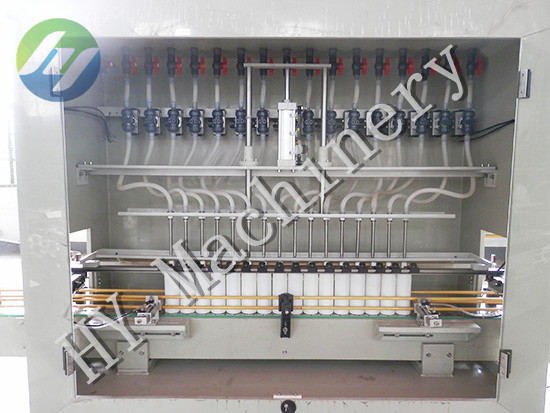

Automatic Inline Gravity Type Anti Corrosive Bottle filling machine Pictures

Automatic Inline Gravity Type Anti Corrosive Bottle filling machine is suitable for below bottle samples
