BASIC INFO
Technical Description
1-5Liters Inline Gravity Type Bottle filling machine is normal pressure filling machine. Under control through PLC and servo motor, it is easy for operation and change bottles without changing any elements. Through controlling filling time, we can change the filling volume according to different bottles and request. The whole machine is made of advanced stainless steel and anti-corrosion materials. It is suitable for the filling requirements of bottles (containers) with different shapes and other containing except liquid and gas containing.
Automatic Gravity Type Liquid filling machine is mainly used for bottling of daily chemical, agricultural chemical and pharmaceutics industry.
Main Technical Data
Automatic Inline Gravity Type Bottle filling machine Pictures






Automatic Inline Gravity Type Bottle filling machine is suitable for below bottle samples
1-5 Liters liquid filling machine, soybean sauce filling machine, vinegar filling machine, wine filling machine, liquor filling machine, alcohol filling machine, iodophor filling machine, 1 Liter Antifreeze filling machine, 1.8 Liter bath of glass filling machine, Pesticides filling machine, 1 gallon farm chemical filling machine, 5 Liters emulsifiable concentrate filler, etc. Automatic free flowing liquid filling machine.

Click here to view Automatic Inline Piston filling machine running video on YouTube
https://youtu.be/4vCA92akPKc
Contact us to get more information and quotation
1-5Liters Inline Gravity Type Bottle filling machine is normal pressure filling machine. Under control through PLC and servo motor, it is easy for operation and change bottles without changing any elements. Through controlling filling time, we can change the filling volume according to different bottles and request. The whole machine is made of advanced stainless steel and anti-corrosion materials. It is suitable for the filling requirements of bottles (containers) with different shapes and other containing except liquid and gas containing.
Automatic Gravity Type Liquid filling machine is mainly used for bottling of daily chemical, agricultural chemical and pharmaceutics industry.
Main Technical Data
- Number of filling heads: 4,6,8,10,12filling heads optional
- Filling range: 1000-5000ml
- Diameter of bottle: Customized
- Filling accuracy: ≤+1%
- Output: 1100BPH (5Liters)
- Air resource: 0.6-0.8MPa
- Air consumption: 200L/h
- Power: 0.5KW/AC220/50Hz customized
- Weight: 500kg
- Size(LxWxH): 2000x1050x2300mm

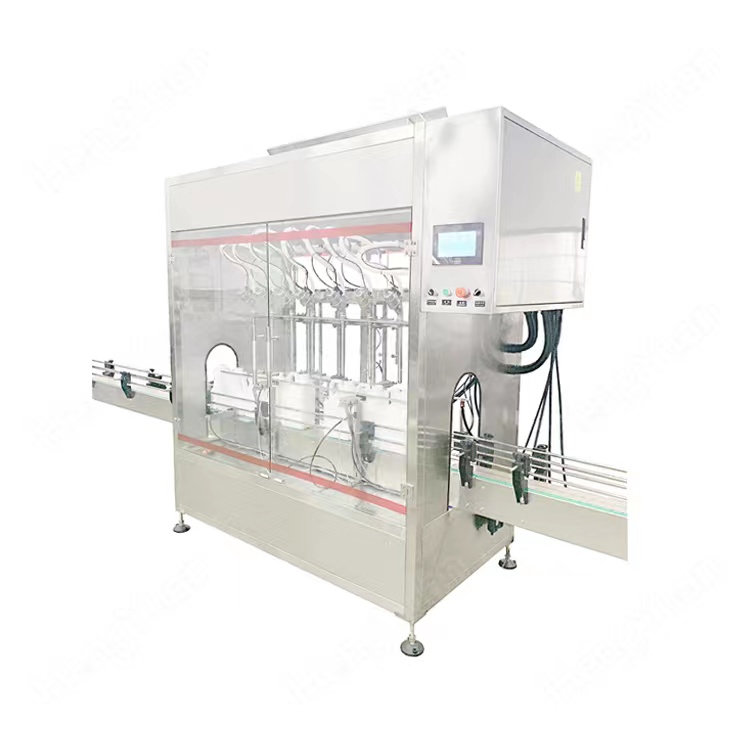

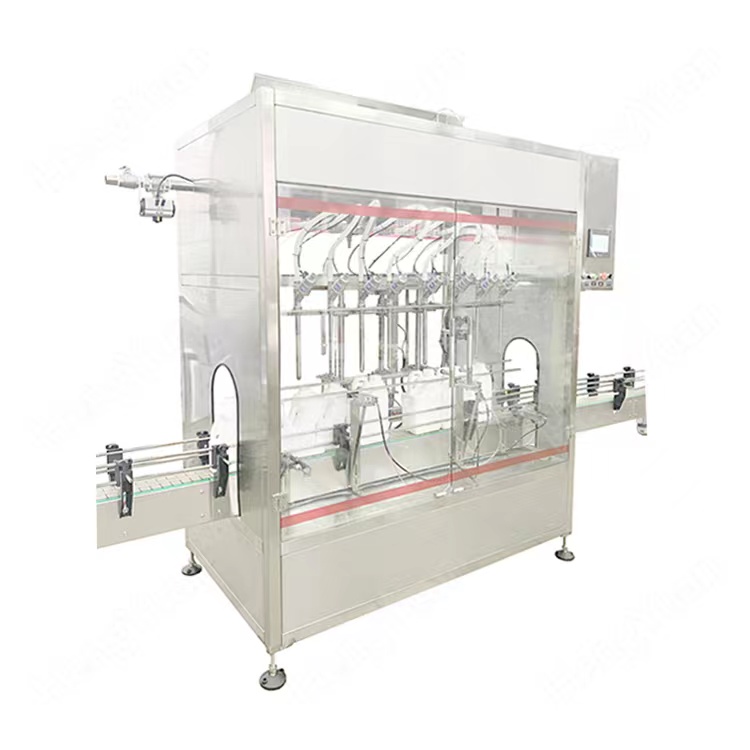

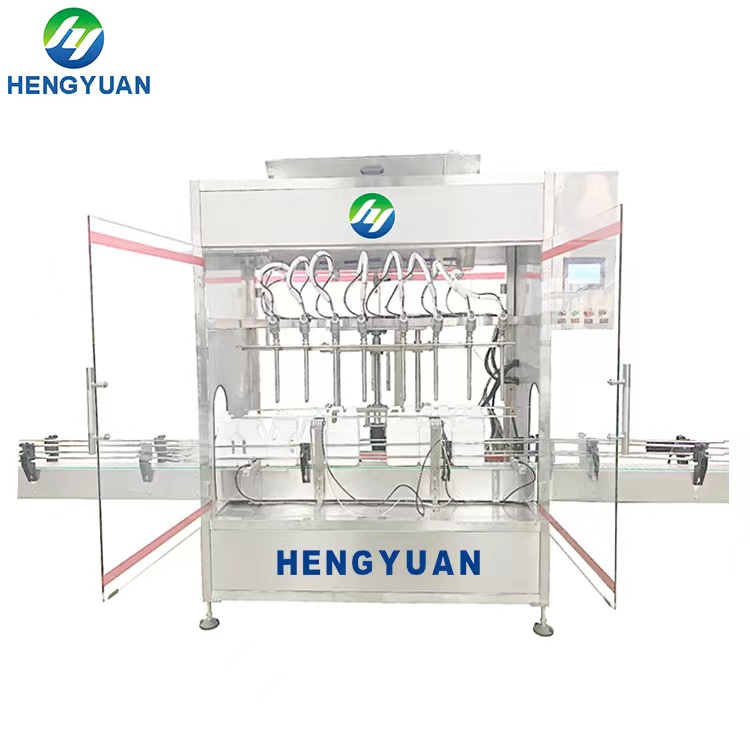

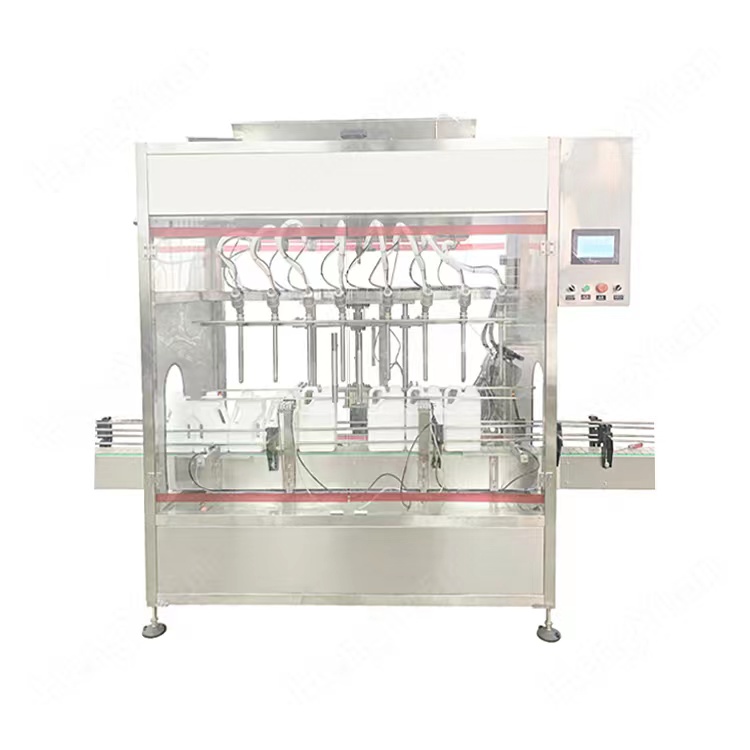

Automatic Inline Gravity Type Bottle filling machine Pictures






Automatic Inline Gravity Type Bottle filling machine is suitable for below bottle samples
1-5 Liters liquid filling machine, soybean sauce filling machine, vinegar filling machine, wine filling machine, liquor filling machine, alcohol filling machine, iodophor filling machine, 1 Liter Antifreeze filling machine, 1.8 Liter bath of glass filling machine, Pesticides filling machine, 1 gallon farm chemical filling machine, 5 Liters emulsifiable concentrate filler, etc. Automatic free flowing liquid filling machine.

Click here to view Automatic Inline Piston filling machine running video on YouTube
https://youtu.be/4vCA92akPKc
Contact us to get more information and quotation
