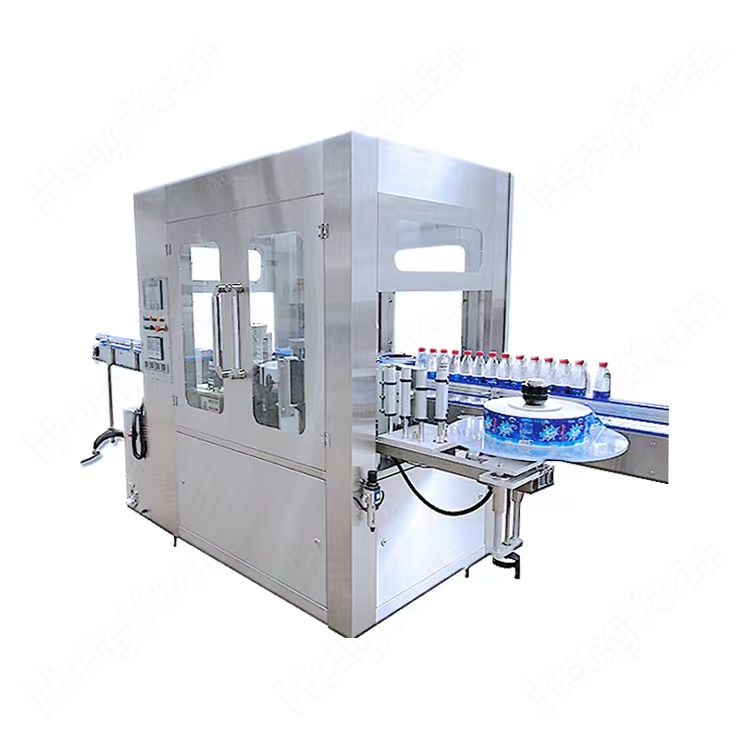

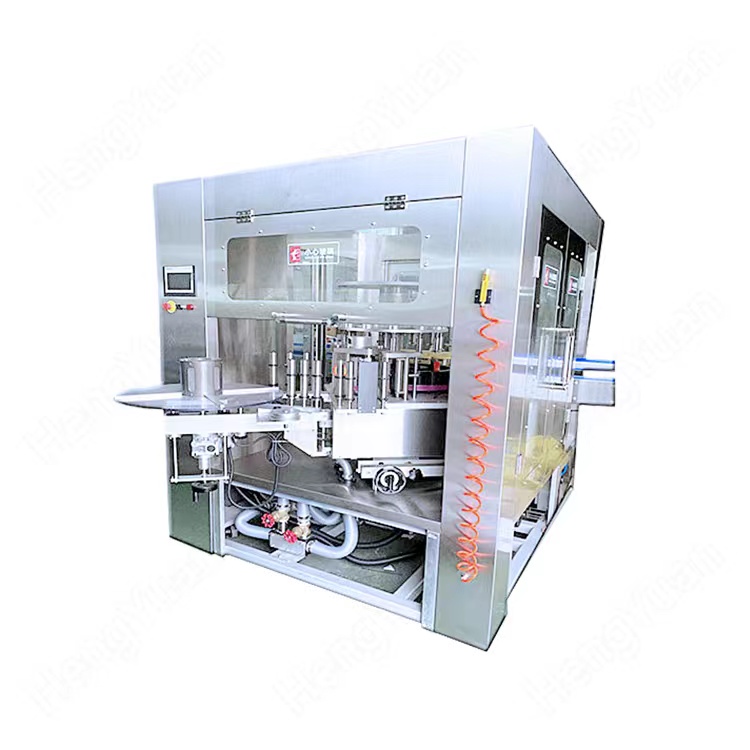

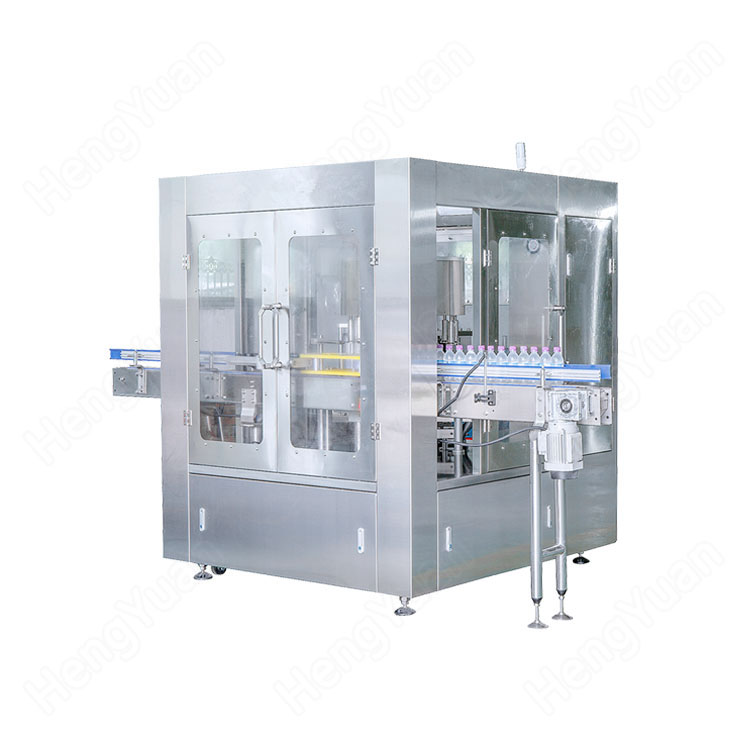

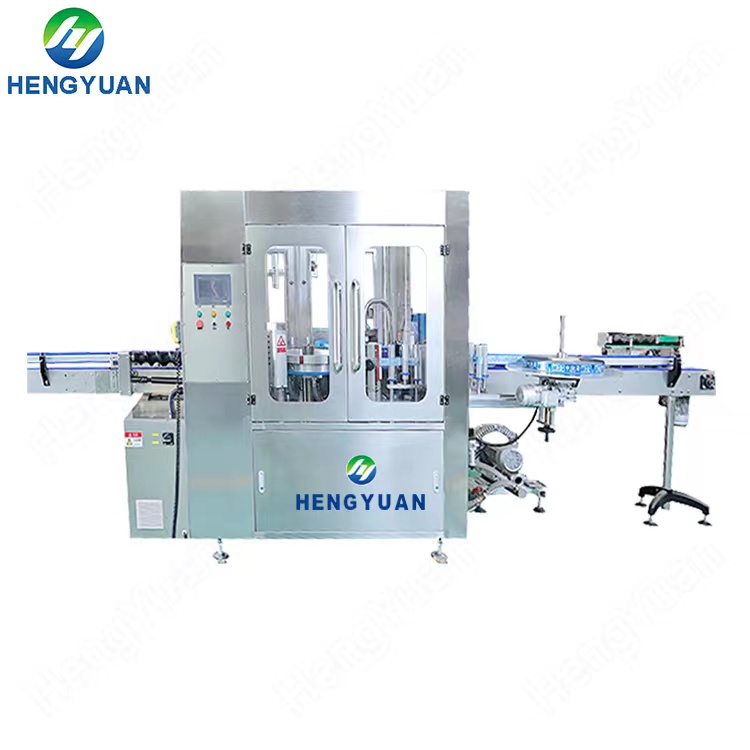

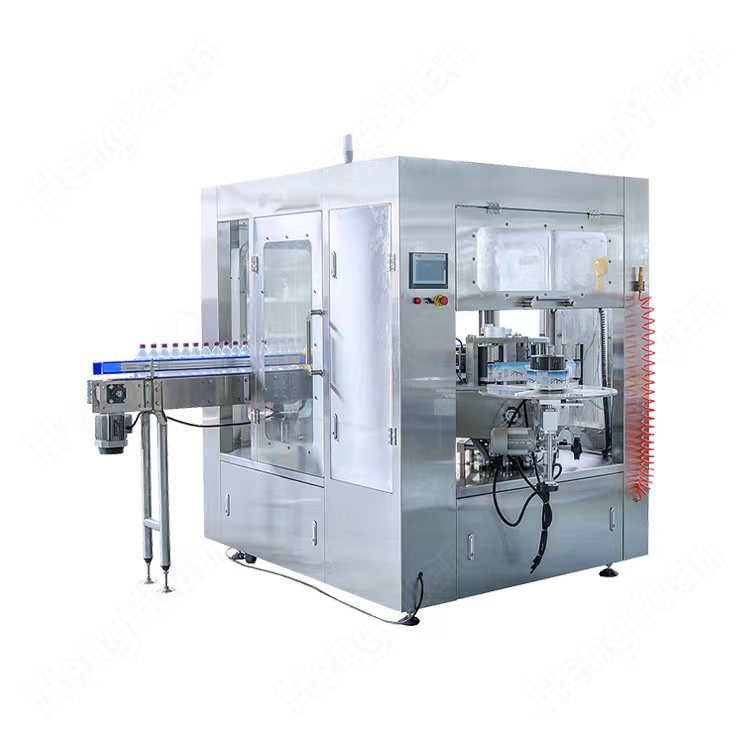

China HYHM-R Automatic Rotary Hot Melt Glue labeling machine Technical description
This hot melt adhesive OPP labeling machine is a new type of rotary and continuous labeling machine. The equipment can automatically adjust the inlet and outlet transmission of the container; The containers conveyed by the conveyor belt are separated by a certain distance by the bottle separating screw according to the spacing of the star wheels, then the imported star wheels convey the containers to the container turntable, and after the containers are fixed by the bottle pressing mechanism and the mold base of the containers, the containers start to rotate at a certain speed; Mechanical pre-positioning in the process of product rotation; And carry out positioning and labeling according to the track of the mechanism.
When the container reaches the electric eye detection position, the computer host controls the label delivery system to deliver the label, and after a label delivery action is completed, the high-speed cutter cuts off a label; Because Sanyo small inertia high-speed servo motor is adopted, the accuracy and stability of high-speed bid sending and cutting are ensured.
The cut label is sent to the gluing system; In this part, the system glues the front and rear edges of the label, which makes the consumption of hot melt adhesive the lowest.
When the glued label is turned to the labeling position, the label can be accurately and effectively adhered to the container. Because the container is in a rotating state during the label conveying process, the label can be stably and tightly attached to the container. The adhesive tape at the glue tail can form a good label lap seal, thus completing a labeling process. Suitable for labeling OPP/bopp hot melt adhesive, film label, paper-plastic composite film, label, paper label on plastic, metal, glass and other round containers. Labeling stations: 12, 15, 18, 24, 30, can be specially designed according to customer requirements.
Main technical data
HYHM-R Automatic Rotary Hot Melt Glue labeling machine Application
Automatic hot melt glue labeling machine, bopp / opp label applicator, wine bottle hot melt glue labeling machine, tin can hot melt glue labeling machine, aluminum can hot melt glue bopp / opp label applicator, glass bottle hot melt glue bopp / opp labeling machine, beverage pet bottle hot melt glue label applicator, plastic bottle hot melt glue label applicator, etc.
Click here to view HYHM-R Automatic Rotary Hot Melt Glue labeling machine running video on youtube
https://youtu.be/bCucMy7O5oE
