Automatic Round Barrel Sticker Labeling Machine

  • Model: HYTB-150S-B
  • Application: Big Round Objects, Big Round Bottles, Big Round Pails
  • Stick label quantity: 1
BASIC INFO
Technical description

Automatic Vertical Big Round Bottle Self-adhesive Sticker labeling machine can stick non-dry sticker label for round bottle. With inspection of sensor, tracking label synchronously, ensure to labeling speed and smoothly.
Host design labeling machines using imported and domestic advanced technology to improve and make a solution for instability of general domestic labeling. By optical fiber computer control, we can get the synchronization track. The output of labels is controlled by a stepper motor or servo motor. It can detect the objects and size of labels automatically. It is modern and advanced electromechanical integration equipment automatically controlled by microcomputer mode, with large LCD touch panel, display and memory devices containing dozens of memory devices. The operation is simple, the labeling is accurate, the performance is reliable, and there is low noise. Sticker labeling machine is easy to clean, not moldy, beautiful after labeling and of high production efficiency. It is strong and won't fall off on its own.


Main technical data

Labeling capacity
0-50pcs/min
Labeling accuracy
±1.0 mm
Label material
Adhesive sticker, opaque or transparent label
The inner diameter of label roll
76 mm
The outer diameter of label roll
350 mm(max)
The suitable size of label
Width 20-200 mm length 15-300 mm
The suitable size of labeling objects
Can be customized
Operating direction
Left or Right
Total Power
1.5kw
Power supply
AC220V/110V, Single phase. Globally customized
Net weight
About 280kg
Machine size
200(L)×80(W)×100(H)cm
Optional device
Ribbon coder, transparent label detecting sensor

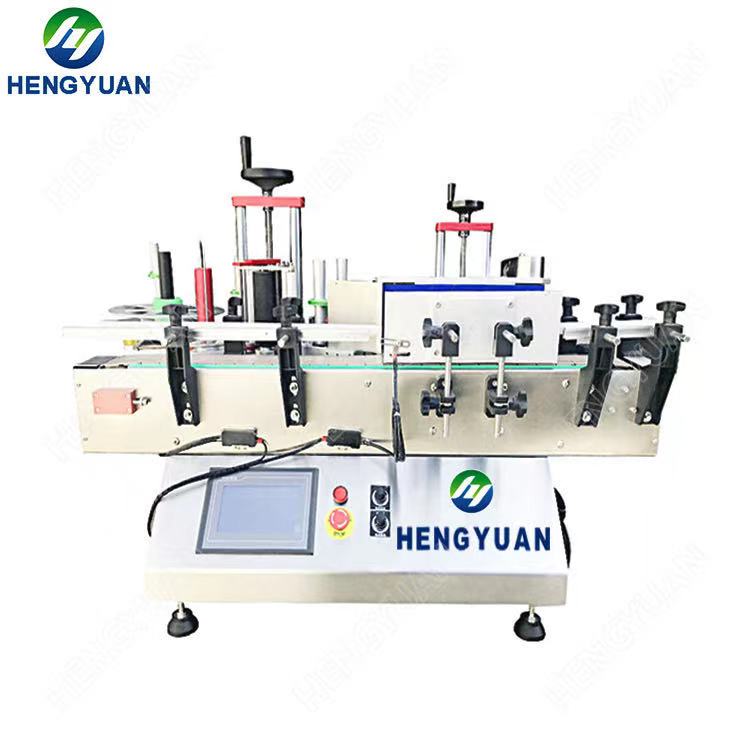

Chinese Excellent Performance Automatic Big Round Barrel labeling machine Picture

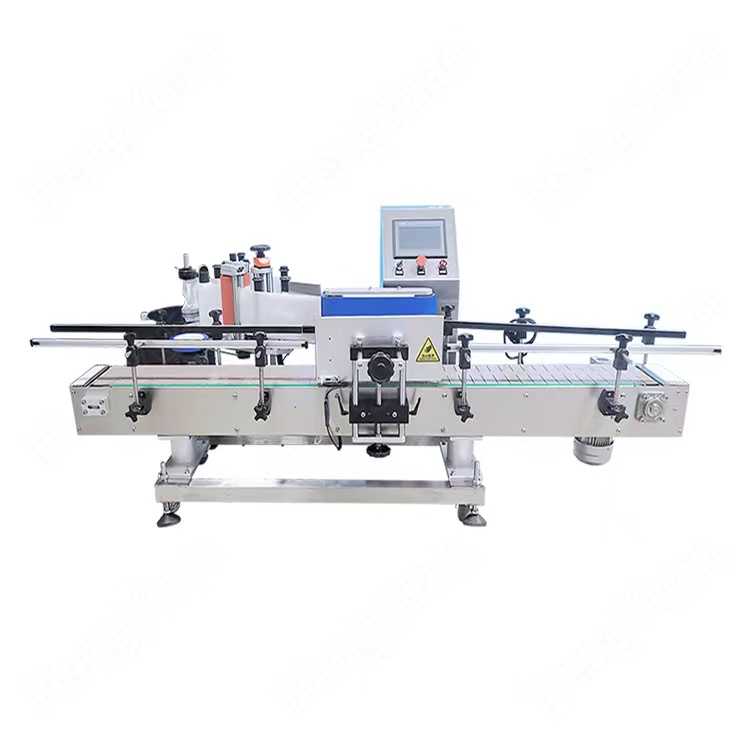

HYTB-150S-B Automatic One Gallon Round Barrel Labeling Machine

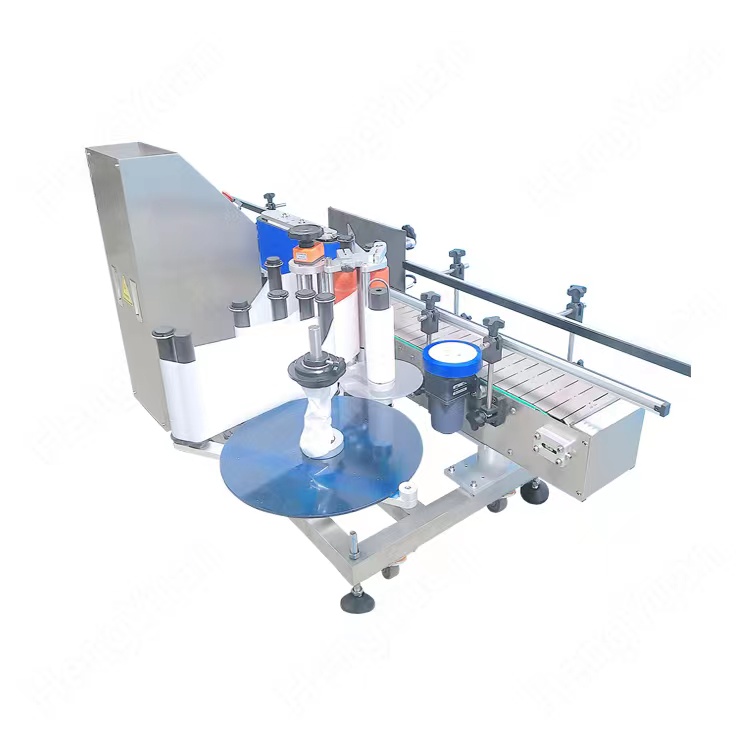

HYTB-150S-B Automatic Big Round Barrel Labeler

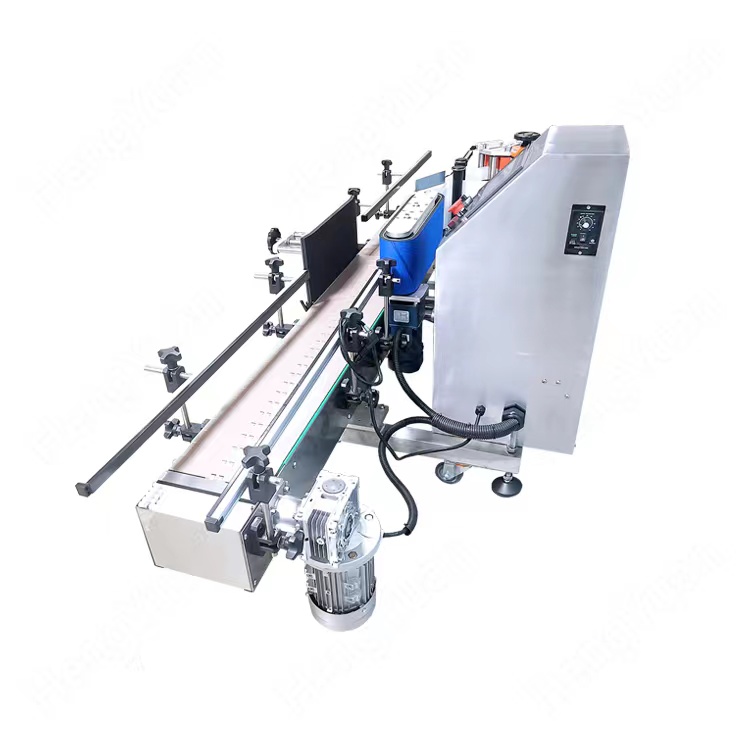

HYTB-150S-B Automatic Big Round Barrel Label Applicator

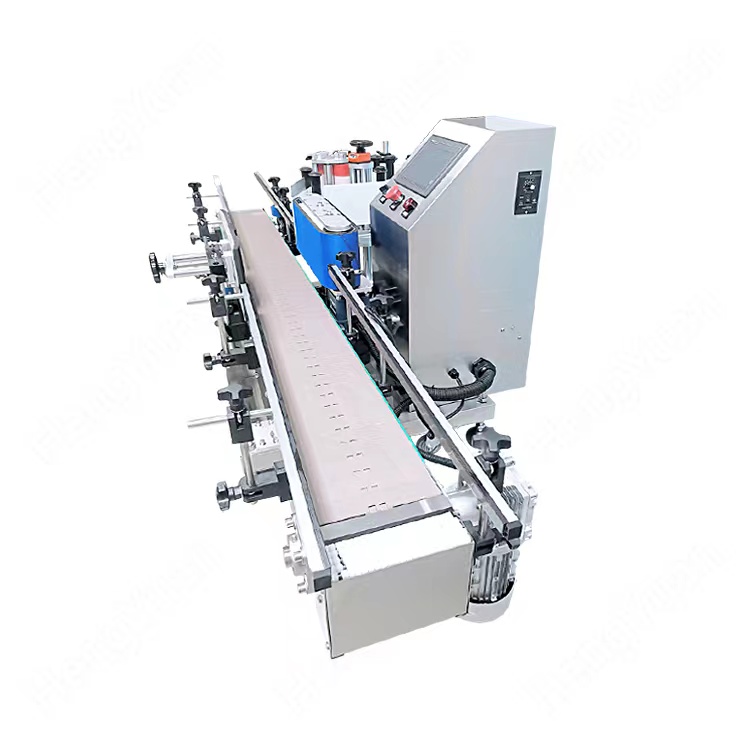

HYTB-150S-B Automatic Big Round Barrel Label Application Machine

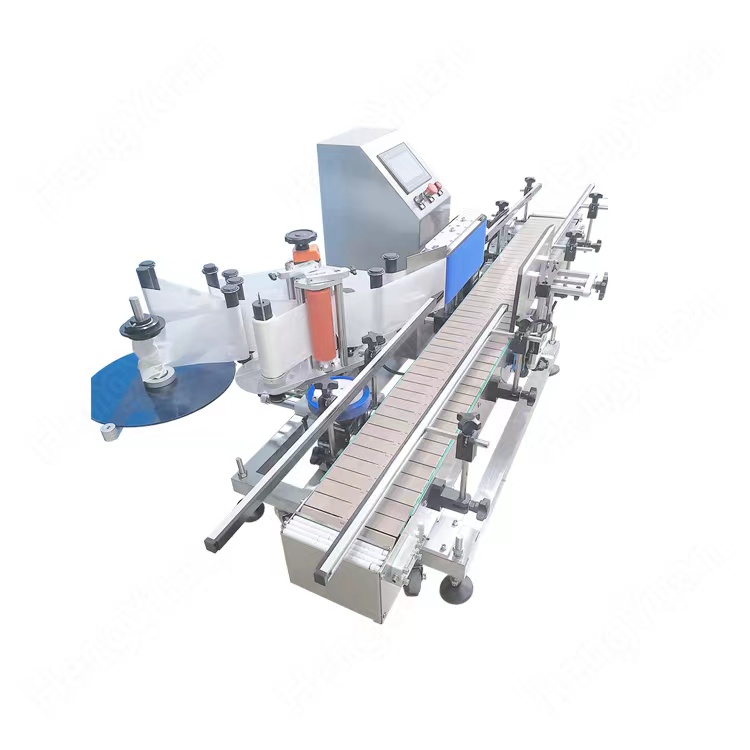

HYTB-150S-B Automatic Big Round Bottle Labeling Machine
HYTB-150S-B Automatic 5 L Round Shampoo Barrel Labeling Machine


HYTB-150S-B Automatic 5 Liter Round Hand Sanitizer Barrel Labeling Machine



HYCL-150S-B
 Automatic Positioning Big Round Pail Label Applicator Application


Automatic clamping round object sticker labeling application machine is suitable for labeling for labeling on round bottles with one, two, three, etc labels. It is widely used in bottling of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.
For examples: 1 gallon round bottle labeling machine, 5 liters round barrel label applicator, 10 liters round barrel sticker labeller, one gallon cooking oil pet barrel labeling machine, 5 liters shampoo barrel label applicator, 10 liters edible oil barrels label application machine, etc. HYTB-150S-B Automatic One Gallon to Ten Liters Round Bottles Vertical Self-adhesive Sticker labeling machine



HYTB-150S-B Automatic Cooking Oil Round Barrel Labeling Machine



Click here to view Automatic Positioning Round Pail labeling machine running video on youtube
https://youtu.be/fVBuIoIx468
