Automatic Tracking Type Piston Two Heads Filling Machine

  • Model: HYPFT2-1000
  • Nozzles No.: 2pc ( 1pc and 2 pcs optional)
  • Standard filling volume: 5-1000ml Customized
BASIC INFO
HYPFT2-1000 Automatic Tracking Type Servo Motor Control Piston filling machine Technical Description

Automatic tracking servo filling machine is controlled by PLC, touch screen and servo positioning. The bottle is convenient and quick to change and adjust. One-key adjustment, filling parameter setting and filling quantity adjustment can be carried out in the touch screen, and it has the function of specification parameter memory. The filling head adopts two-speed filling, which has the functions of diving filling and vacuum suck-back, and the filling process does not leak. The tank adopts liquid level control and automatic pump feeding. The outer frame of the whole machine adopts stainless steel environmental protection outer frame with beautiful appearance.



Automatic Tracking Type Servo Motor Control Piston filling machine Technical Data

Model
HYPFT2-1000
Heads
2pc ( 1 and 4 pcs available )
Capacity(BPH)
200ml: Approx 2500
Volume
5-1000ml customized ( other volume is availabel : 200-2000ml, 500-5000ml)
Accuracy
≤±0.5%
Suitable Bottles
Height: 100-280mm, Diameter: Φ30-110mm, (can be customized)
Control method
Touch screen and PLC
Air supply
0.5-0.7Mpa
Dimension
200x110x220cm
Power supply
2.5kw
Voltage
415V/380V/220V/110V, Three Phases/One phase , 50/60Hz, customized globally


Automatic Tracking Type Servo Motor Control Piston filling machine Pictures

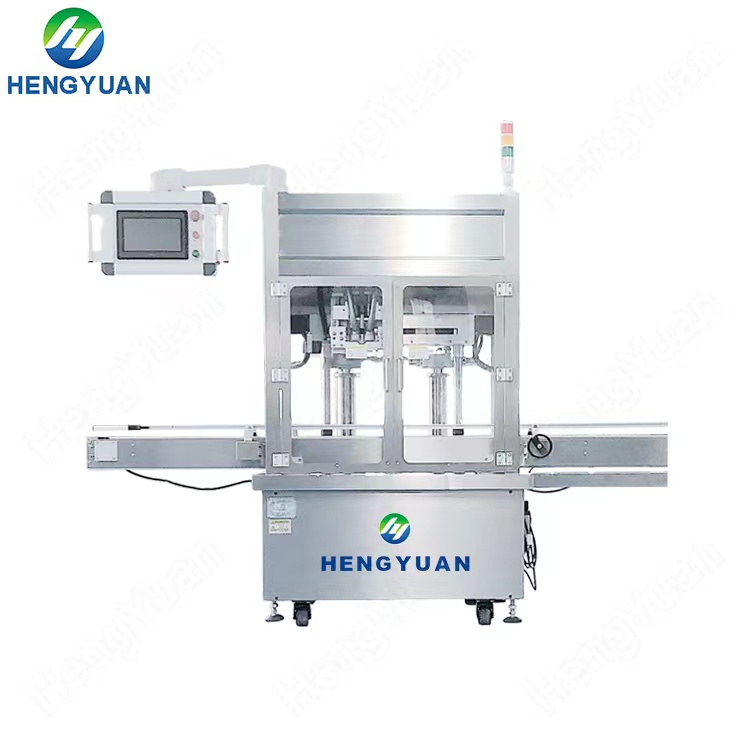

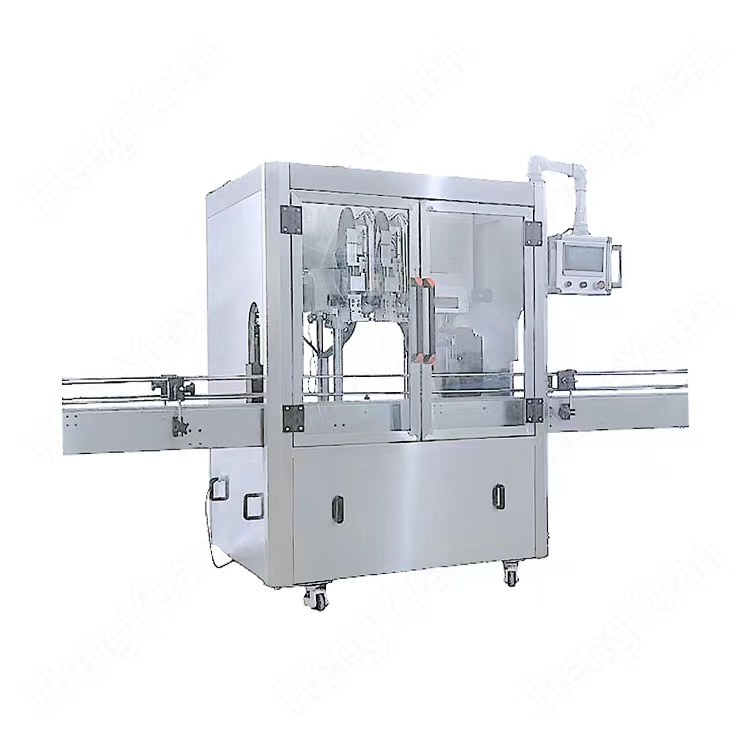

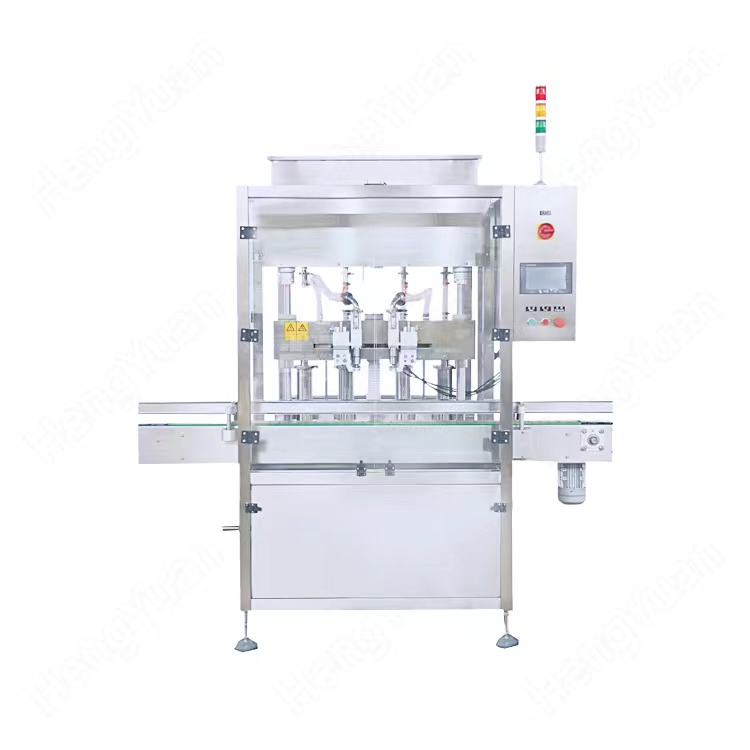

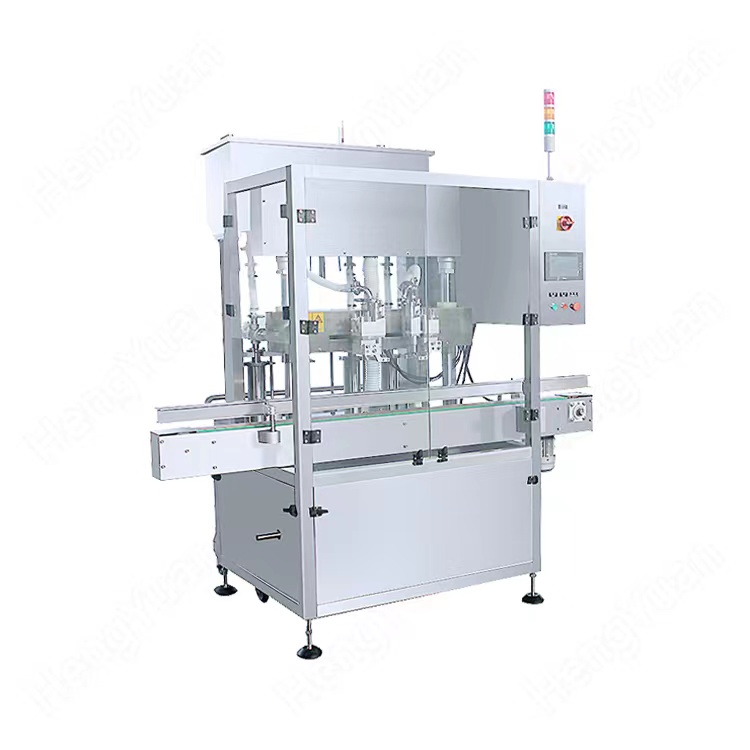

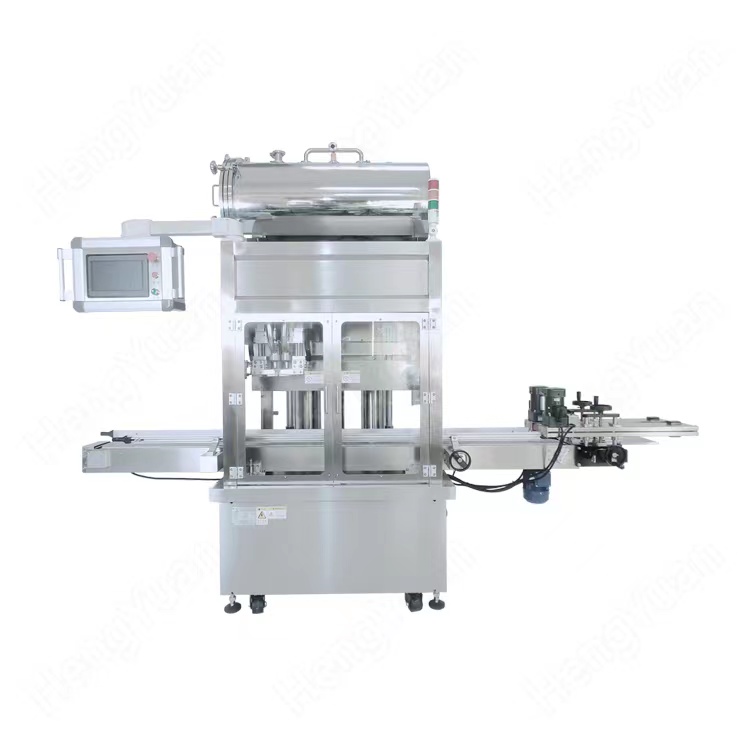

HYPFT2-1000 Tracking type piston filling machine
HYPFT2-1000 Tracking type servo motor piston filling machine








HYPFT2-1000 Automatic tracking type piston filling machine
HYPFT2-1000 Tracking type piston bottle filling machine


HYPFT2-1000 Tracking type servo piston filler

Automatic Tracking Type Piston Two Heads filling machine is suitable for below bottle samples
For examples: tracking type filling machine, none-stop bottle liquid filling machine, shampoo filling machine, hair conditioner filling machine, handwashing liquid filling machine, liquid soap filler, shower gel dispensing machine, laundry detergent bottle filler, facial toner filling machine, hand sanitizer filler, facial cream filler, sauce bottle filler, gel dispensing machine, viscous liquid filler, lubricant filler, etc.
HYPFT2-1000 Automatic Tracking Type Piston filling machine

HYPFT2-1000 Tracking Type Two Heads Piston Filling Machine

Click here to view HYPFT2-1000 Automatic Tracking Type Piston Two Heads Filler running video on YouTube
https://youtu.be/VHV-G-QHi-A
