Automatica Cylinder Raking Bottle Washing Machine

  • MODEL: HYWB-100F
  • Speed: 2000-3000bottles/hour
BASIC INFO
Technical description

Automatic rolling drum ultrasonic bottle washing machine is suitable for 20-1000ml, all kinds of materials or irregular bottles which have bolders wash the bottle inside and outside alternately by water, lutetium water and air to achieve the production request and it can below initial. According to your production requirement, you can add the ultrasonic system, meet the GMP requirements. Structure is compact and special, the washing crafts is rational. The clean class of the bottle after washing is high. Dosage of the water is less. Simple operation, convenient maintenance.
Automatic rolling drum ultrasonic bottle washing machine is widely used in bottle inside washing of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.

Main technical data
  • Bottle range: 20-1000ml customized
  • Capacity: 30-50bot/min
  • Air Supply: 15m3/h,0.4-0.8Mpa
  • Water Wastage: 0.6-1 t/h, 0.8Mpa
  • Power Supply: 220V/50Hz or customized
  • Power: 1.6kw
  • Weight: 400 kg
  • Dimension: 1300X950X800mm

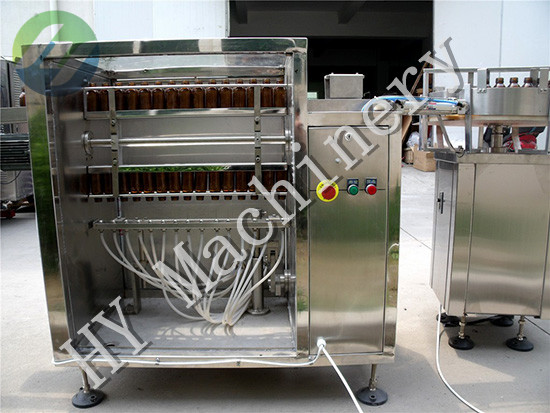

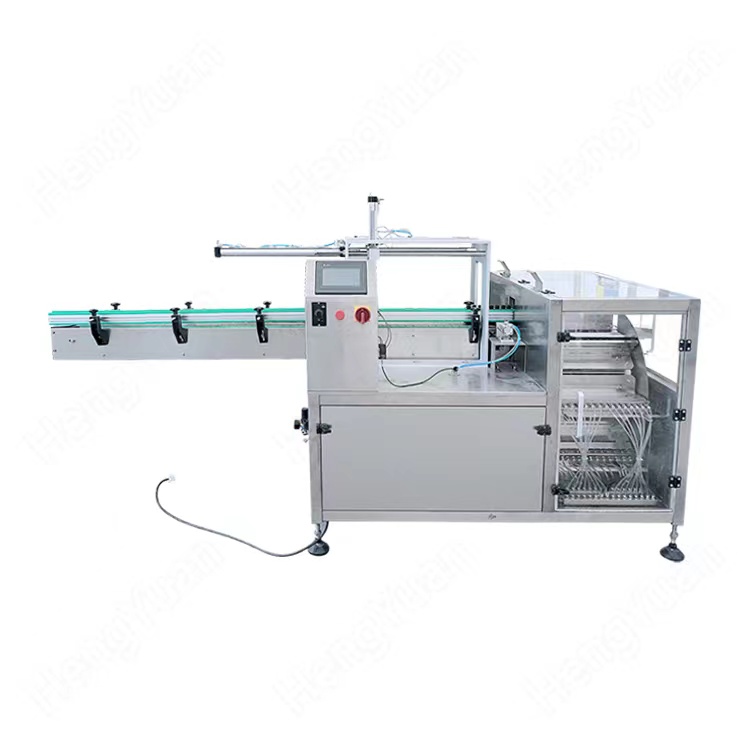

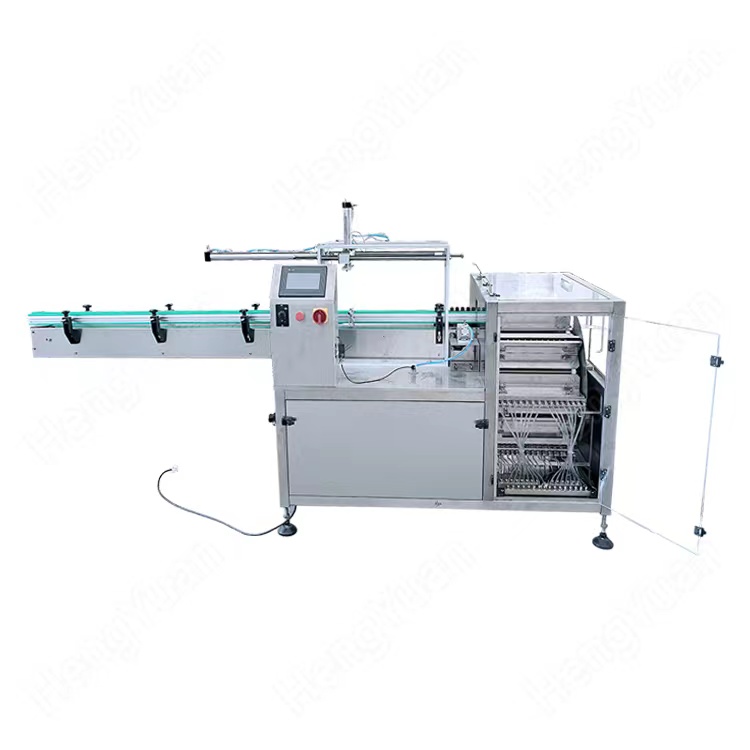

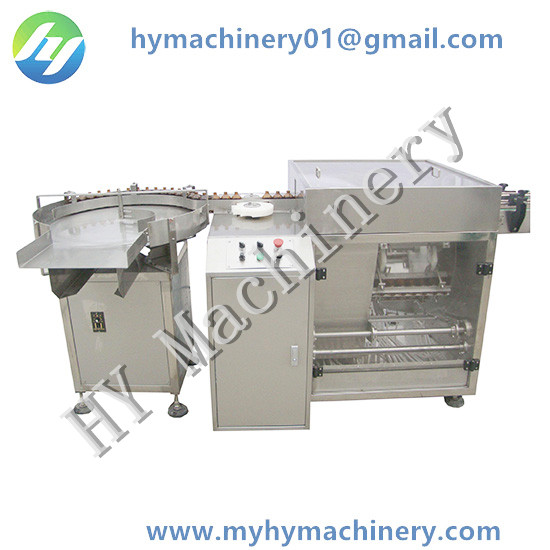

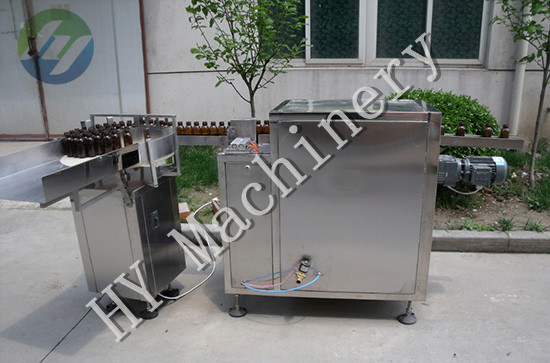

Automatica Rolling Drum bottle washing machine pictures

HYWB-100F Automatic Rolling Driving Bottle Rinsing Machine.jpg





HYWB-100F Drum Structure Rolling Driving Bottle Washing Machine.jpg
HYWB-100F Drum Structure  Bottle Rinsing Machine.jpg
HYWB-100F Automatic Drum Structure Rolling Driving Bottle Rinsing Machine.jpg
HYWB-100F Drum Structure Rolling Driving  Cough Syrup Bottle Washing Machine.jpg











Automatica Rolling Drum bottle washing machine is suitable for below product samples

22061501 HYWB-100F Automatic Drum Rolling Type Bottle Rinsing Machine.jpg


Click here to view Automatic Rolling Drum bottle washing machine running video on youtube

https://youtu.be/jik7dNJosZ8
