CGF14-12-4 High Quality Automatic 3000-4000 BPH drinking water pet bottle rinsing filling capping 3 in 1 mono-block machine

CGF series PET plastic bottle washing, filling and capping three in one filling machine is a kind of high filling precision and adjustable filling speed water bottling machine. It adopts bottle-neck block technology, not only avoid bottle-neck second pollution, but also can suitable for different designed bottle shape. By this technology, usage scope of this kind of machine has been enlarged. According to different model, capacity of the machine is in the range of 1,000 BPH to 24,000 BPH. Machine is forced by frequency variable motor, controlled by world famous brand PLC and other electronic components, such as Mitsubishi, Siemens, Airtac etc.  It is the ideal first-choice equipment of beverage manufacturers.
3 in 1 rinsing filling capping pet bottle drinking water filling machine

Main Technical Data

Model

Washing
heads

Filling
heads

Capping
heads

Capacity(b/h)
500ml

Power
(KW)

Weight
 (KG)

CGF8-8-3

8

8

3

1500-3000

2KW

2000

CGF14-12-4

14

12

4

2000-5000

3KW

3000

CGF16-16-5

16

16

5

5000-8000

3KW

3500

CGF24-24-8

24

24

8

9000-12000

4KW

4000

CGF32-32-8

32

32

8

12000-15000

5.5KW

5000

CGF40-40-10

40

40

10

15000-18000

7.5KW

5800

CGF50-50-12

50

50

12

20000-24000

11KW

6800

CGF60-60-15

60

60

15

25000-30000

11KW

8000

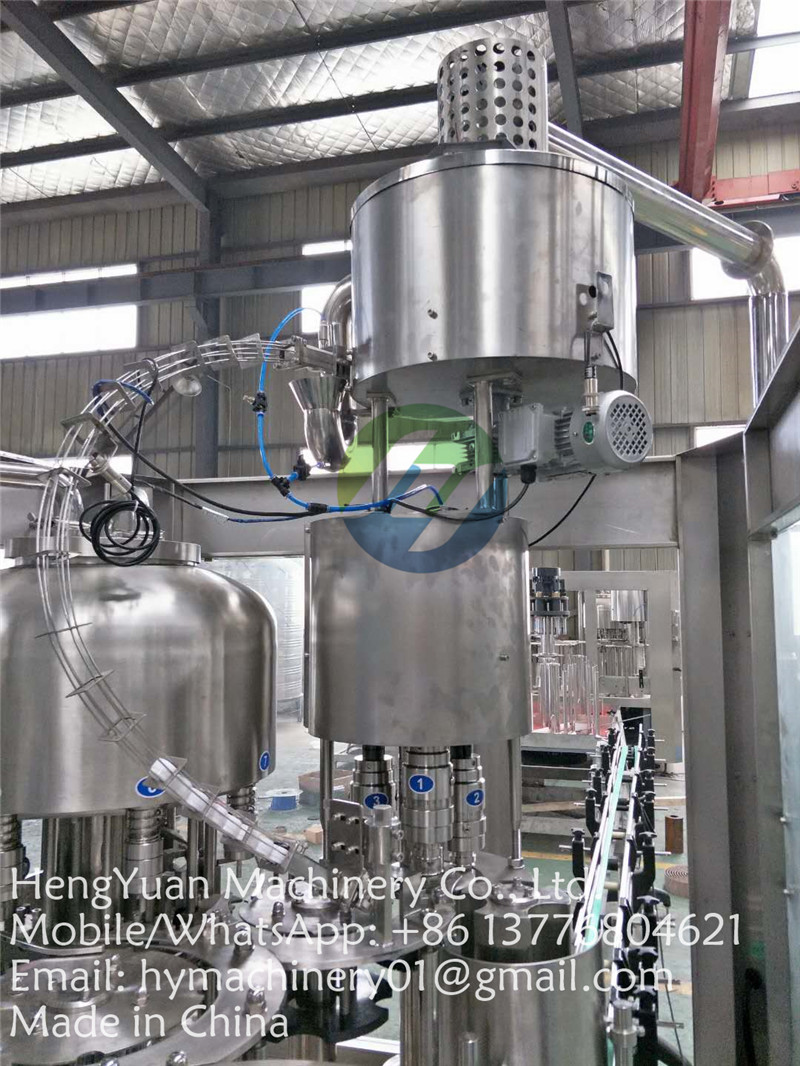

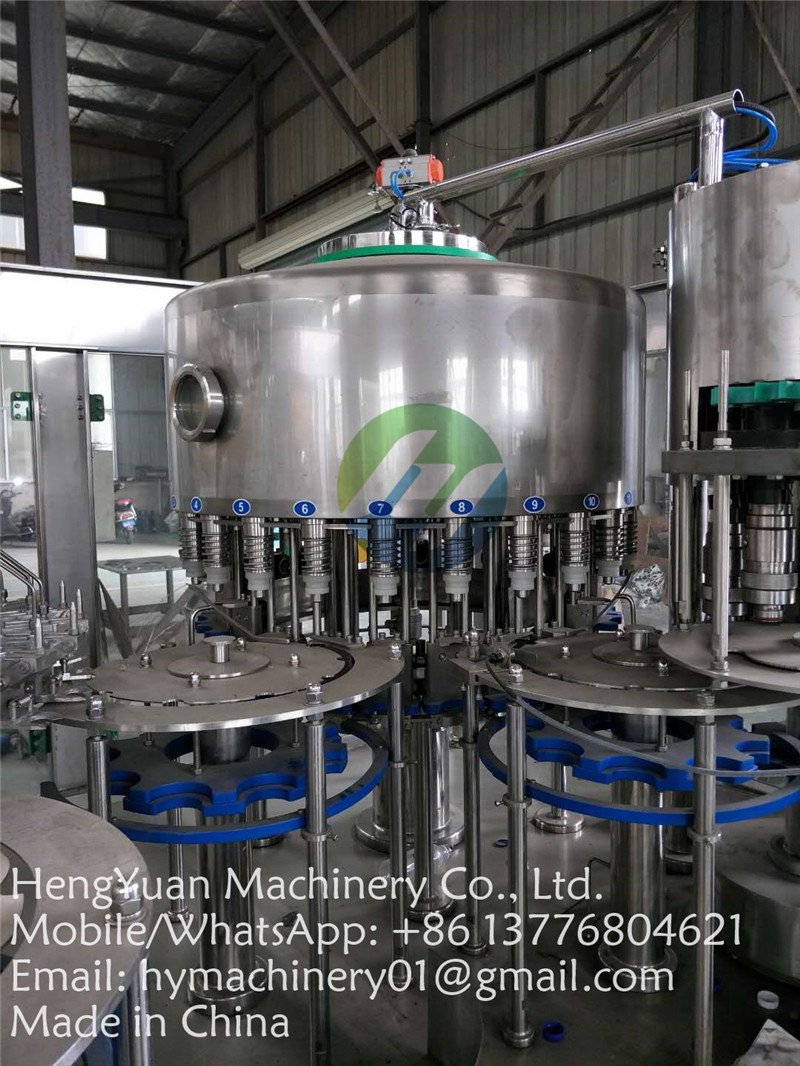

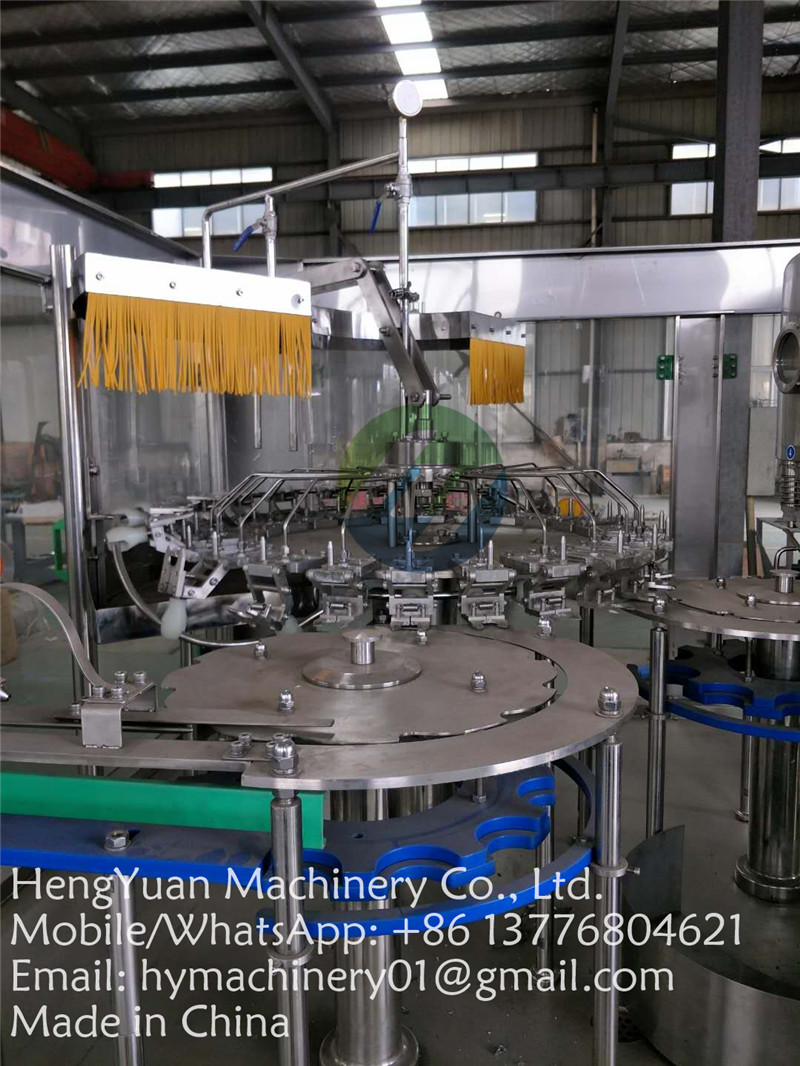

Automatic Rotary Bottle Washing Filling Capping Three in One Filling Machine Pictures

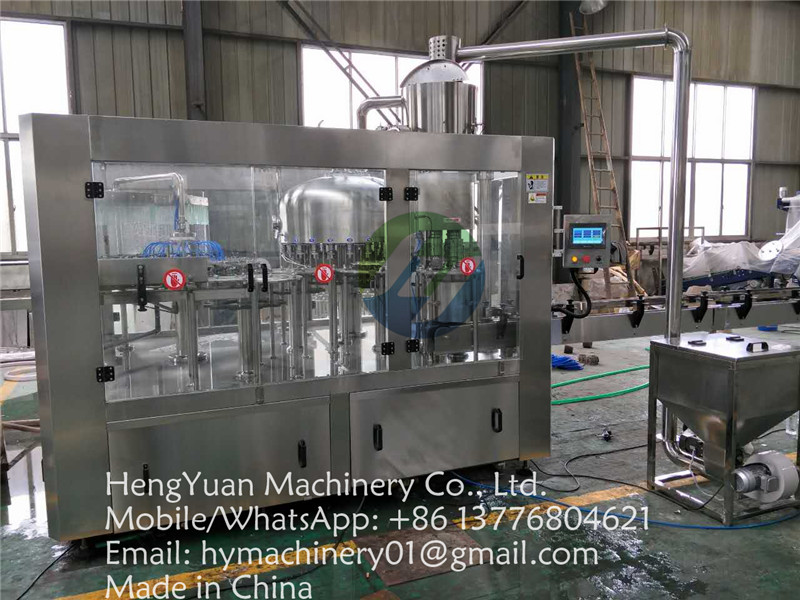

mineral drinking water filling machine
mineral drinking water pet bottle rinsing filling capping machine
beverage drinking water pet bottle washing filling capping machineautomatic drinking water pet bottle risining filling capping machine
mineral drinking water three in one washing filling capping machine

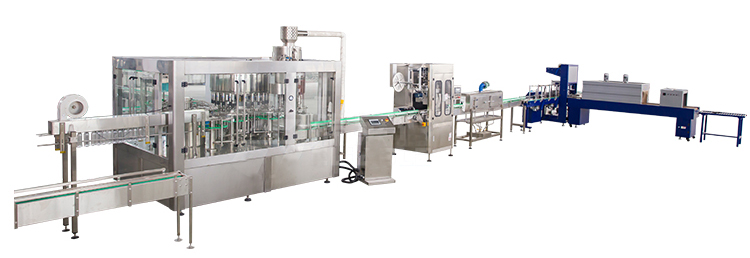

mineral drink water filling machine line

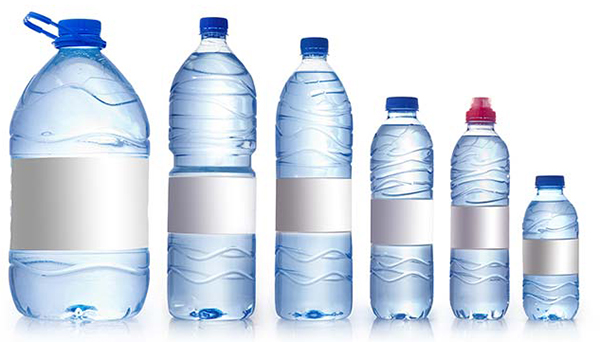

Automatic Rotary Mineral Drinking Pure Water Three in One Machine can fill bottle samples
automatic drinking water filling machine line

Click here to view Automatic Pet Bottle Drinking Water 3 in 1 Machine running video on YouTube
