Conveyor Belt Metal Detection Eliminating Machine

Model: HYD-M400
Detecting target: Metal, iron, stainless steel, aluminum
Key words: metal detector

BASIC INFO

Technical description

The core part of the food metal detector adopts an intelligent computer control system, which is used to detect metal impurities and metal foreign objects in food, bread, steamed buns, dumplings, biscuits and other products, as well as pharmaceuticals, toys, clothing, footwear, chemicals, leather, knitting and other industries. Detect metal impurities mixed in products or raw materials during production and processing. Such as: iron and non-ferromagnetic metal items (non-ferrous metals such as iron, copper, aluminum, stainless steel, etc. can be detected), improve the product coefficient and improve the quality of enterprise products.

Main Features

◆ Easy and intelligent operation: wide LCD and wizard interface, users can easily set and operate
◆ Hardware configuration: The metal detector adopts dual high-speed digital signal processor design, which has relatively high detection accuracy and high-speed processing speed
◆ Product effect suppression: multi-frequency design, intelligent self-learning, 3D detection algorithm and other advanced technologies can effectively suppress product effect
◆ Core technology: The metal detector adopts DDS frequency synthesis and DSP digital signal processing. Reliable data: The secondary user management mode and FRAM storage technology ensure that there will be no problems with system parameters and data.
◆ Good manufacturing process: The metal detector adopts all stainless steel probes and racks, with a variety of protection levels for customers to choose from, adapting to various production environments
◆ Anti-deviation design of conveyor belt: The special anti-deviation design scheme of conveyor belt can effectively avoid deviation of conveyor belt

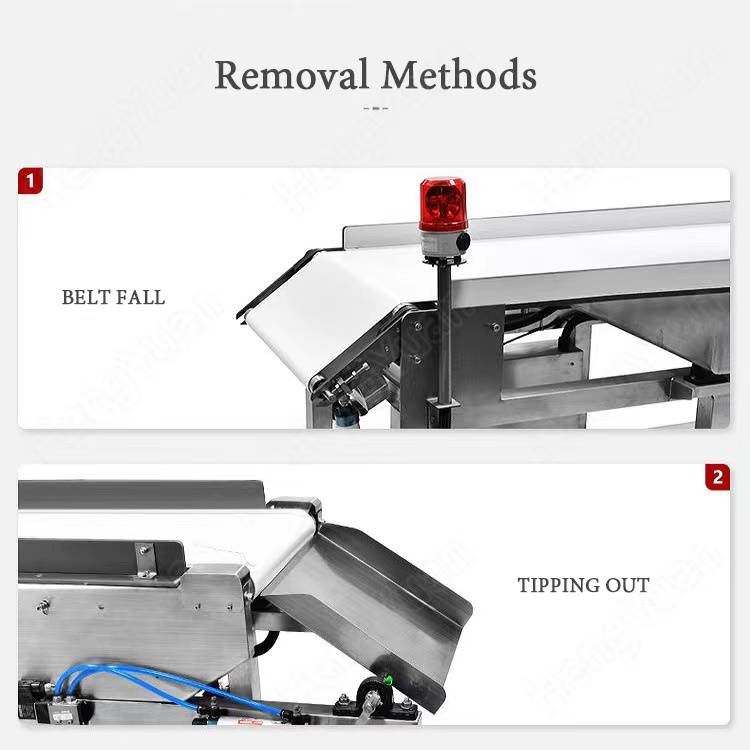

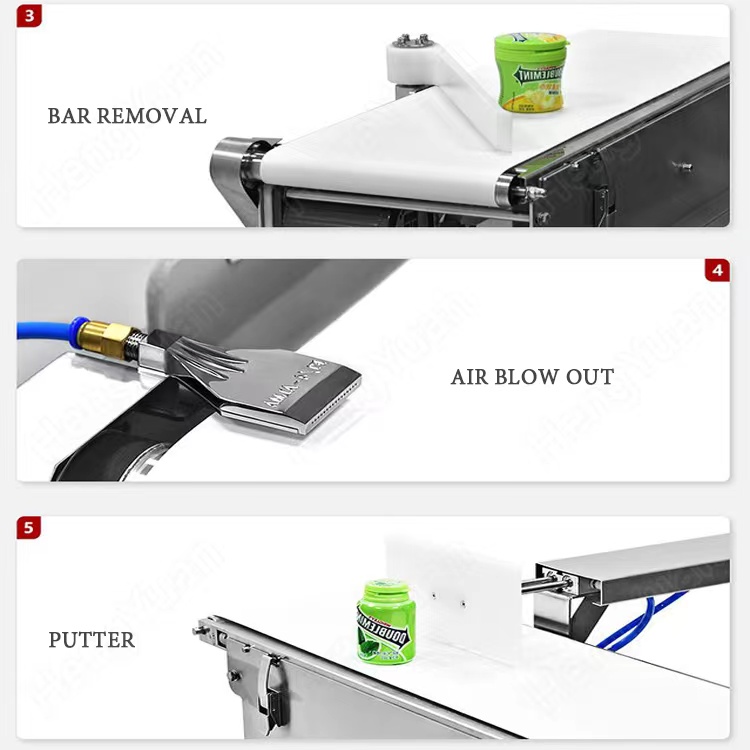

◆ Rejection device: Equipped with a blocking arm type, blowing type, flap type, lifting belt type and other rejection devices

Main technical data

Name	Digital type metal detector
Model	HYD-M400
Detection sensitivity	in empty state：Fe≥φ1.0mm，Non-Fe≥φ1.5mm，Sus304≥φ2.5mm
Effective detection of the hole width	400mm
Effective detection of the hole height	150mm
Delivery capacity:	10kg/time
Maximum conveyor belt speed	25m/min
Transfer direction	Left to right (facing the screen)
Conveyor height	750±50mm
Alarm method	Alarm shutdown, buzzer alarm or elimination mechanism can be optional costs
Material of conveyor belt	Food grade PU belt
Protection grade	IP65
Display and operation mode	LCD display key input ( touch screen is optional )
Power requirement	220v/110v, 50/60hz, globally customized
Main material	SUS304
Weight	180Kg

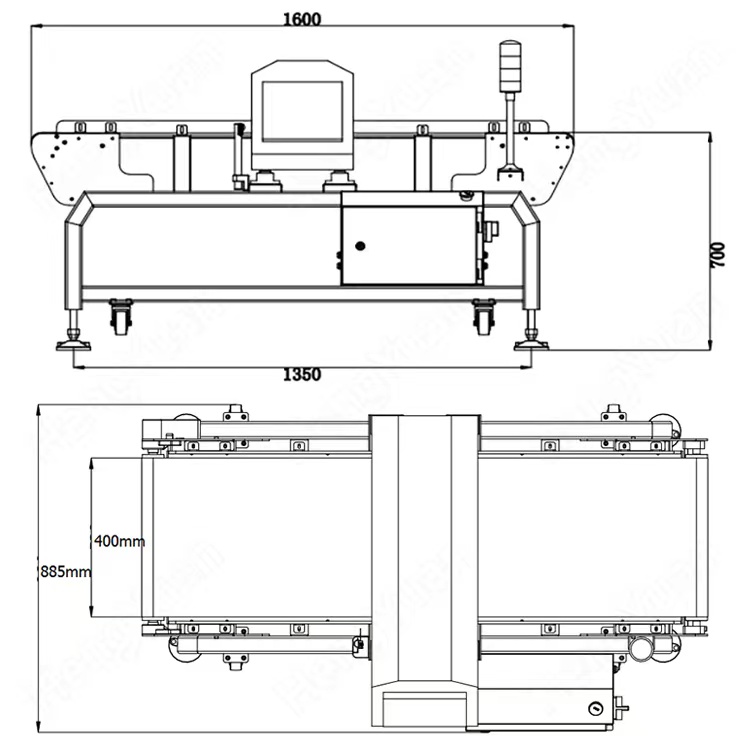

Dimension	160x88.5x100cm

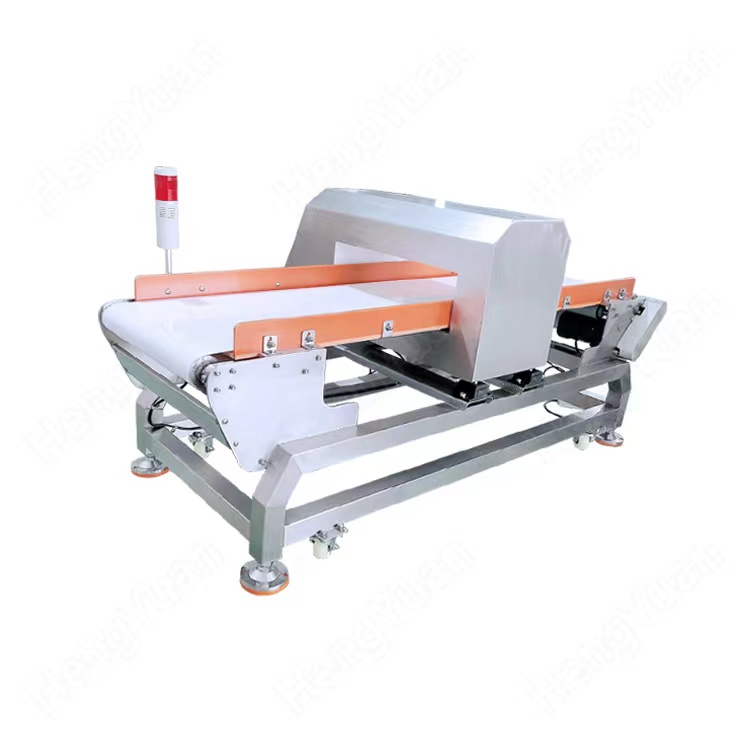

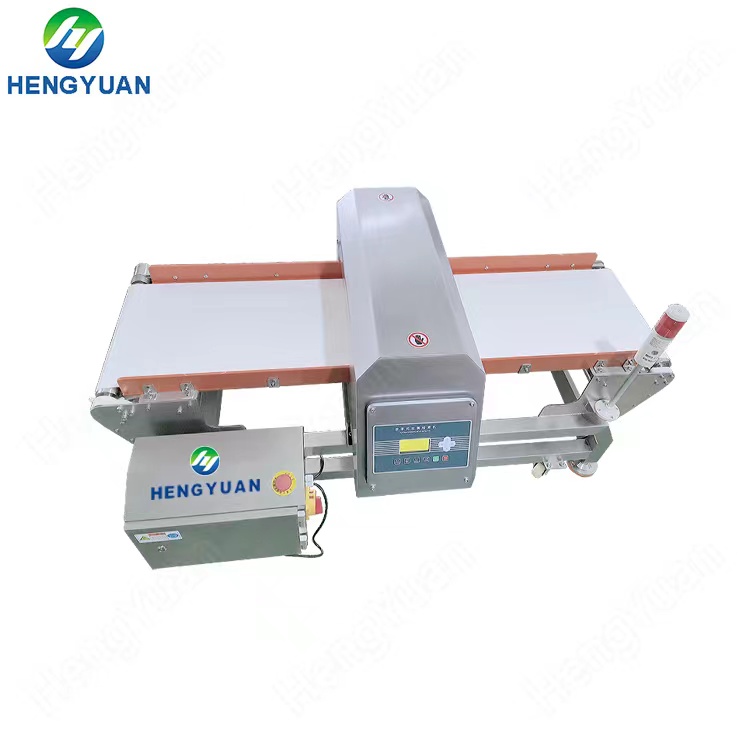

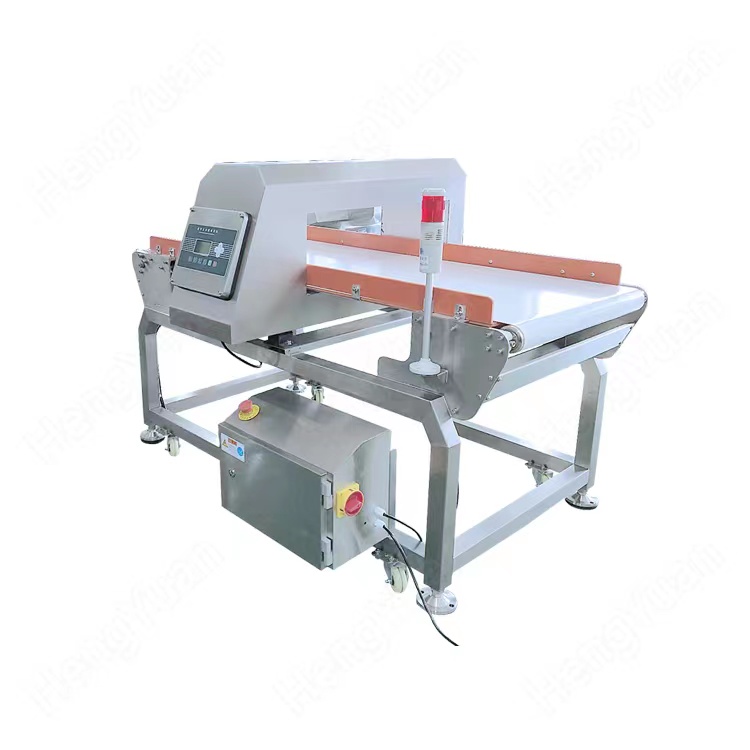

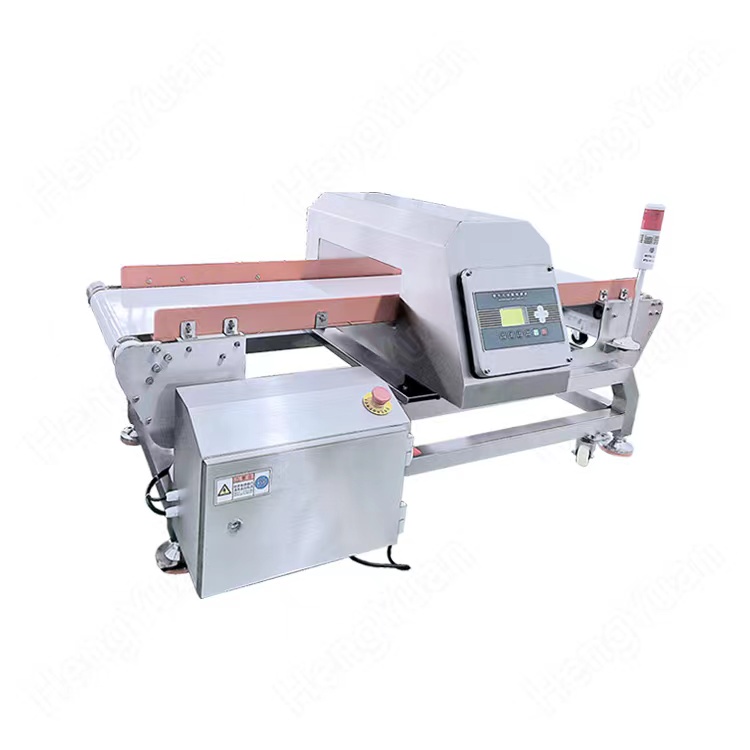

HYD-M400 Conveyor Belt Metal Detection Eliminating Machine Picture

HYD-M400 Conveyor Belt Metal Detection Eliminating Machine Application

1. It is used in various automated assembly lines and logistics conveying systems to identify foreign metal objects (such as iron, stainless steel, aluminum, etc.) mixed in the production process of food, medicine, cosmetics, textiles, etc., even if the fine metal is embedded in the product. can be detected. 2. In addition, it can directly replace manual inspection, so as to improve production efficiency and product consistency and reliability.

HYD-M400 Automatic Conveyor Belt Metal Detection Machine

Chemical industry metal detector, Food industry metal detector, Healthcare industry metal detection machine, Plastic industry metal detection equipment, Packing industry metal detecting machine, Textile industry metal detecting equipment, etc.
