Desktop Digital 2 Heads Liquid Filling Machine

  • Model: HY-GFK700
  • Nozzles No.: 2pcs
  • Filling range: 5ml-3500ml (customized)
  • Pump types: Gear Pump or Diaphragm Pump
BASIC INFO
Technical Description

GFK-700 series digital numerical control liquid filling machine uses micro-computer to control the mini-pump on filling time and the rotation rate of electric motor so that the machine can fill the liquid fluently and at high accuracy. There is no mechanical metal part or abrasion inside the pump.

This numerical control liquid filling machine is compact and portable. The casing uses stainless steel so it is durable and easy to clean. The machine has a self-prime pump that can suck in the liquid from your container and then output via the two nozzles. It is suitable for filling low-viscous liquid without pellets.

Main feature
1) Import single-chip microcomputer control, high efficiency, low power consumption
2) Automatic counting function, effectively control filling quantiy
3) LCD display, touch screen is very easy to operate
4) High filing accuracy
5) Wide Voltage range
6) Working performance is stable and can be used for long time
7) This can self-suck the liquid.
8) The pump can stand acid and alkali
9) Anti-dripping design.
10) Reasonable design, made of stainless steel, meet GMP requirement

Main Technical Data
Filling range
5ml-3500ml
Max Suck Distance
2meter
Max Flow Rate
3L/min
Repeat Error
<0.5%
Anti-dripping Function
Available
Memory Function without Electricity
Available
Power
50W
Voltage
220V/50Hz, 110V/60Hz globally customized
Machine Size
35x26x14cm
Net Weight
5.0 kg

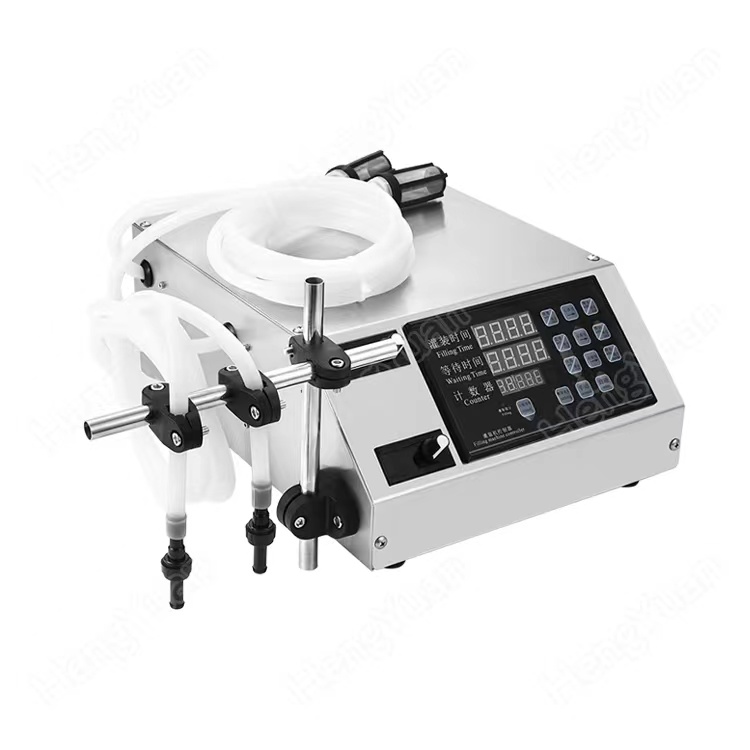

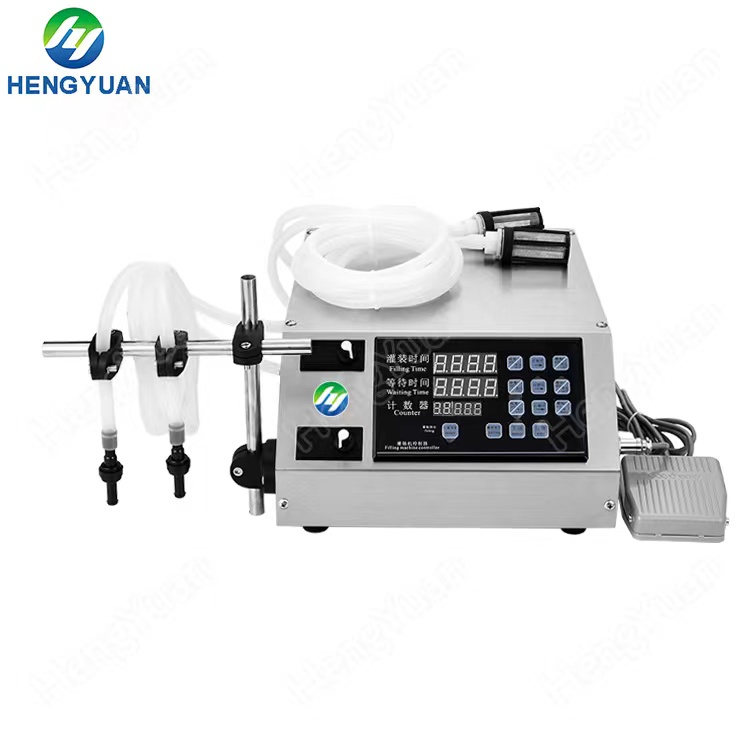

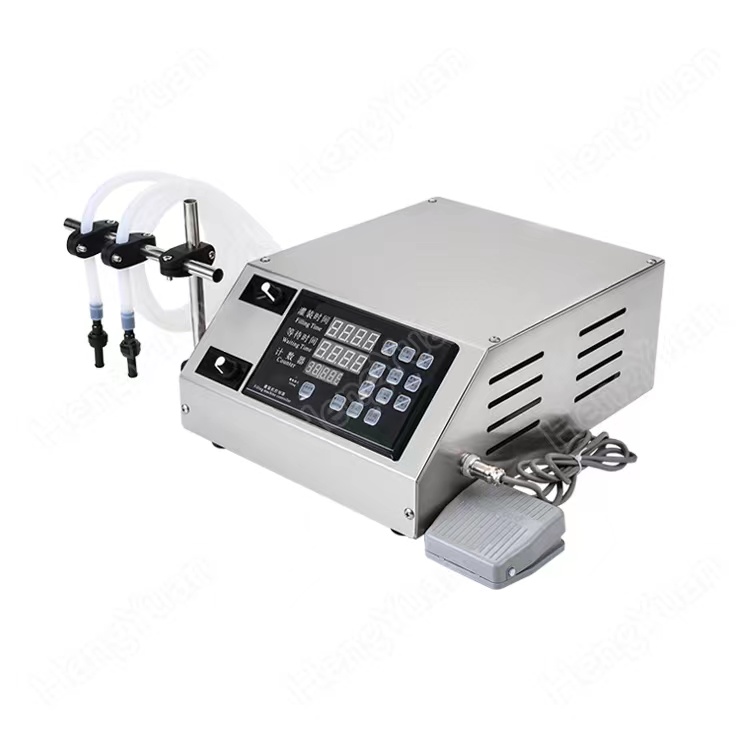

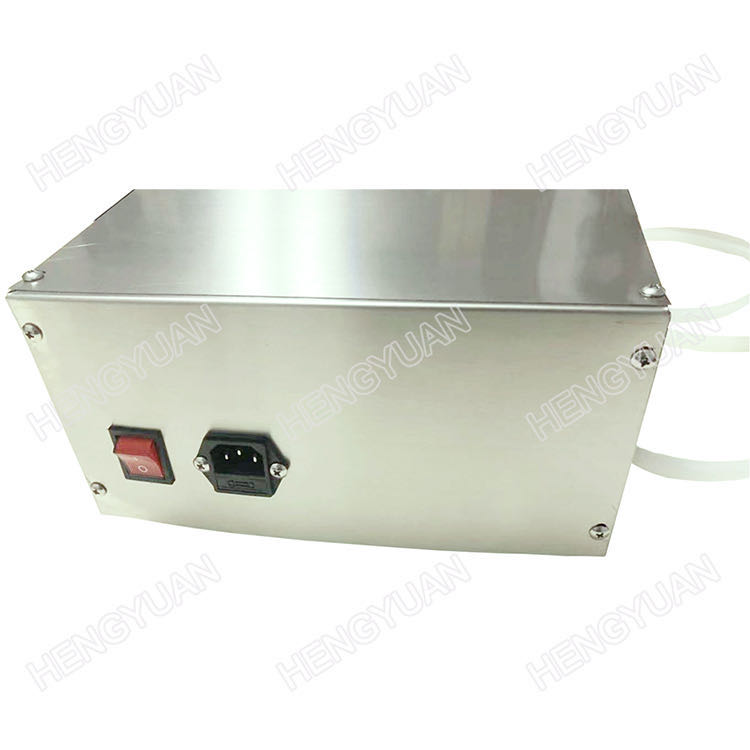

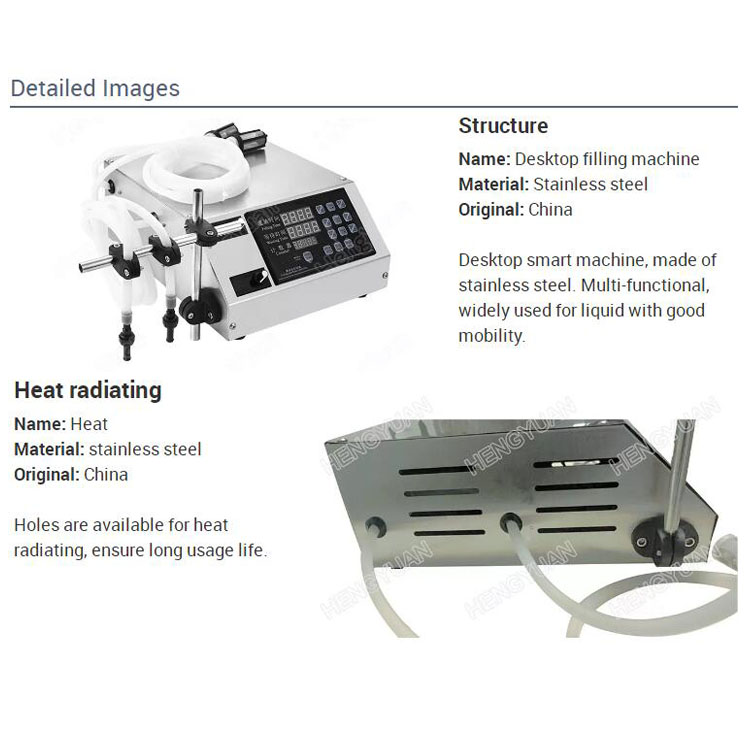

HY-GFK700 Semi-automatic Desktop Digital 2 Heads Liquid filling machine Pictures
HY-GFK700 Semi-automatic Digital Two Nozzles Liquid Filling Machine
HY-GFK700 Desktop Digital Two Nozzles Liquid Filler
HY-GFK700 Desktop Digital Two Nozzles Liquid Filling Machine
HY-GFK700 Semi-automatic Tabletop Electronic Water Filling Machine

HY-GFK700 Semi-automatic Desktop Electronic Bottle Liquid Filling Machine

HY-GFK700 Semi-automatic Tabletop Liquor Filling Machine
HY-GFK700 Desktop Digital Two Nozzles Liquid dispensing machine
HY-GFK700 Desktop Electronic Liquid Filler


HY-GFK700 Semi-automatic Desktop Digital 2 Heads Liquid filling machine is suitable for below bottle samples

Digital liquid filling machine, water filling machine, olive oil filling machine, drinks liquid dispensing machine, vinegar filling equipment, milk bottle filler, e-liquid filling machine, essential oil dispensing machine, liquor bottle filling machine, medical alcohol filler, juice pouch filling machine, cooking oil pouch filler, etc.
HY-GFK700 Semi-automatic Two Nozzles Liquid Filling Machine
Click here to view HY-GFK700 Semi-automatic Desktop Digital 2 Heads Liquid filling machine running video on YouTube
https://youtu.be/g2EclPKQ5s8
