HY-130 HFFS Horizontal Forming Filling Sealing Pouch Packing Machine

  • MODEL: HY-130
HY-130 HFFS Horizontal rolling film pouch forming filling sealing packing machine is suitable for heat sealable laminated multi-layers film. This machine contains motor film-releasing, film forming, bottom sealing, vertical sealing, cutting, pouch opening and filling, pouch transferring and top sealing.
PLC touch screen control panel, make the machine more convenient and adjustable.
HY-130 HFFS Horizontal Rolling Film Sachet Forming Filling Sealing packing machine can achieve the single bags’ packing. This machine with fast speed is easy to change the packing specifications, all the parts which contact the filling material are made of high quality stainless steel, it is an ideal choice for agrochemical, pharmacy, chemical foodstuff and cosmetic industries.

Main Technical Data
  • Model:HY-130
  • Packing precision:≤±1%
  • Filling capacity:200ml or gm (according to the proportion of materials)
  • Packing speed:40-65sachets/minute
  • Sachet width:65×140 mm
  • Sachet height:70×180 mm
  • Inner size of roller film:Φ70×80 mm
  • Outer size of roller film:≤Φ500 mm
  • Voltage:~380V/50Hz (three-phase four -wire)
  • Total power:3.5kw
  • Air pressure: 0.6-0.8Mpa
  • Air consumption: 0.6m3/min
  • Weight:About 800kg
  • Dimensions:2800×950×1500 mm
Automatic Horizontal Type Liquid Paste Powder Granule packing machine Pictures

130 HFFS sachets packing machine
horizontal powder sachets packing machine
130 type HFFS liquid packing machine

HFFS 130 sachet packing machine dosing system
HFFS 130 pouch packing machine samples

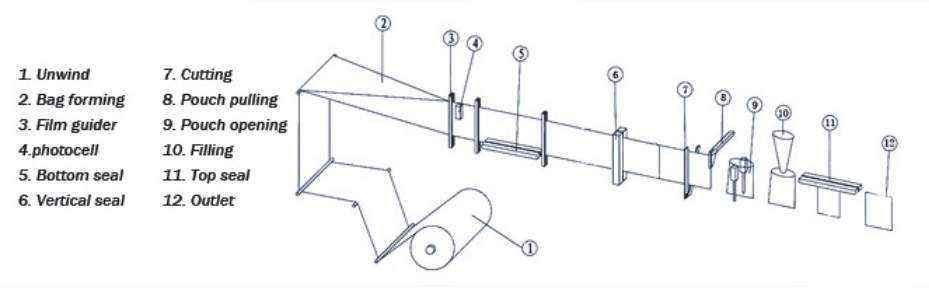

HY-130 Horizontal packing machine Work Flow

HFFS 130 horizontal sachet packing machine

Automatic HFFS Horizontal Roller Film Pouch Forming Liquid Powder Granule packing machine is suitable for below samples

HY-180 Horizontal Roller Film Bag Forming Packaging Machine Pouches1
Twin Link Sachets please choose model:  HY-180
HY-180 Horizontal Roller Film Bag Forming Packaging Machine Pouches2
HY-180 Horizontal Roller Film Bag Forming Packaging Machine Pouches2
HY-180 Horizontal Roller Film Bag Forming Packaging Machine Pouches4
