BASIC INFO

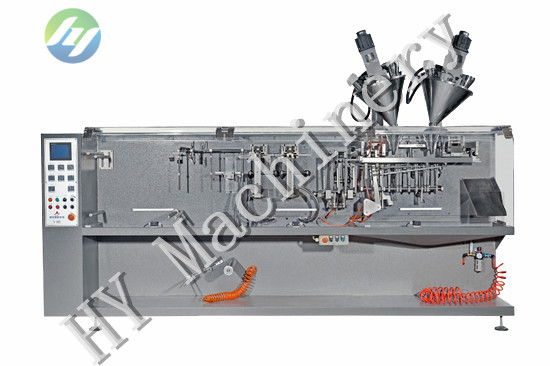

HY-180 HFFS Horizontal rolling film pouch forming filling sealing packing machine is suitable for heat sealable laminated multi-layers film. This machine contains motor film-releasing, film forming, bottom sealing, vertical sealing, cutting, pouch opening and filling, pouch transferring and top sealing.
PLC touch screen control panel, make the machine more convenient and adjustable.
HY-180 HFFS Horizontal Rolling Film Sachet Forming Filling Sealing packing machine can achieve the single or double-chambers bags’ packing. This machine with fast speed is easy to change the packing specifications, all the parts which contact the filling material are made of high quality stainless steel, it is an ideal choice for agrochemical, pharmacy, chemical foodstuff and cosmetic industries.
HY-180 Horizontal packing machine Work Flow
Automatic HFFS Horizontal Roller Film Pouch Forming Liquid Powder Granule packing machine is suitable for below samples
Click here to view HY-180 Automatic Horizontal Roller Film Pouch Forming packing machine running video on YouTube
https://youtu.be/XTLNG_akzsM
Contact us to get more information and quotation
PLC touch screen control panel, make the machine more convenient and adjustable.
HY-180 HFFS Horizontal Rolling Film Sachet Forming Filling Sealing packing machine can achieve the single or double-chambers bags’ packing. This machine with fast speed is easy to change the packing specifications, all the parts which contact the filling material are made of high quality stainless steel, it is an ideal choice for agrochemical, pharmacy, chemical foodstuff and cosmetic industries.
Main Technical Data
- Bag size :
single bag： 85-180mm（w）×100-220mm（H）
double bag ： 65-90mm（w）×100-220mm（H）
- Packing speed :
single bag：40-60bags/min
double bag ：80-120bags/min
- Volume: (powder)5g-300g/ (liquid)5-120ml (according to the proportion of materials)
- Voltage: 380V(three-phase four -wire )
- Power: 4Kw
- Filling precision: ≤±1%
- Roll film diameter: ≤500mm
- Air pressure: 0.6-0.8Mpa
- Air consumption: 0.8m3/min
- Dimensions: 3260* 1020*2390mm
- Weight: 1050 kg

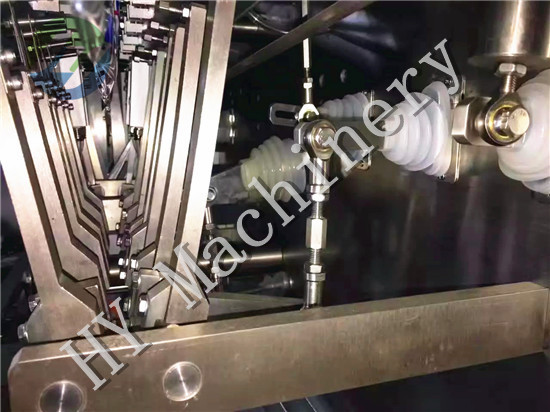

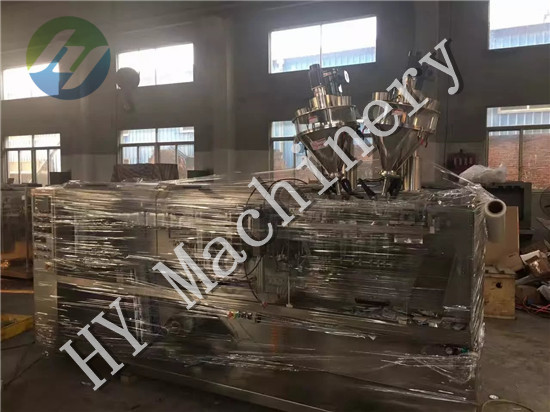

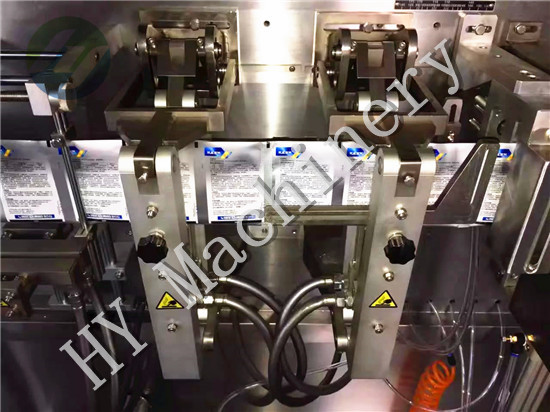

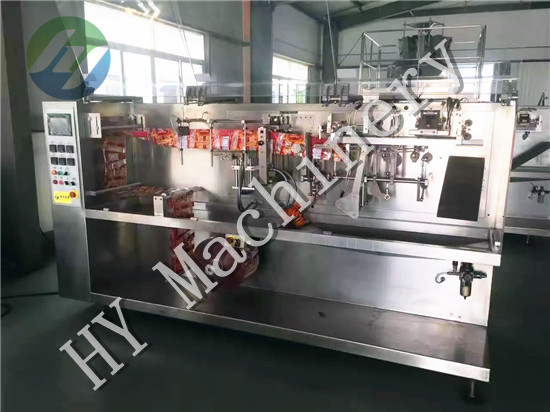

Automatic Horizontal Type Liquid Paste Powder Granule packing machine Pictures

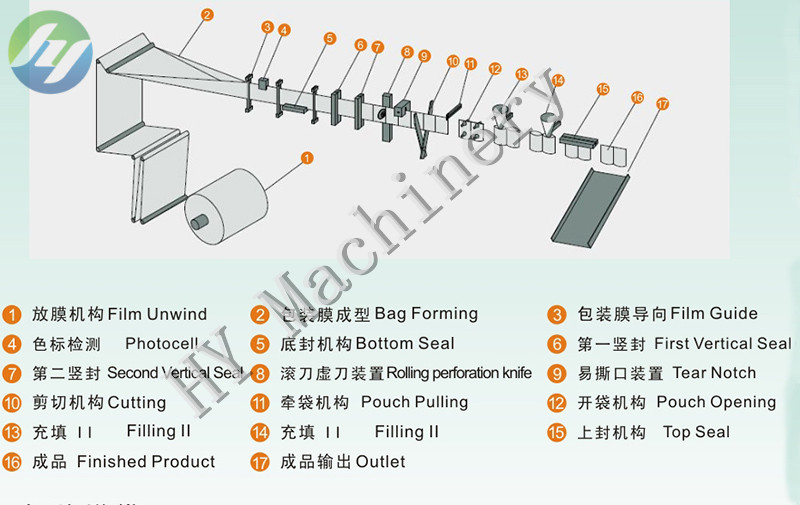

HY-180 Horizontal packing machine Work Flow

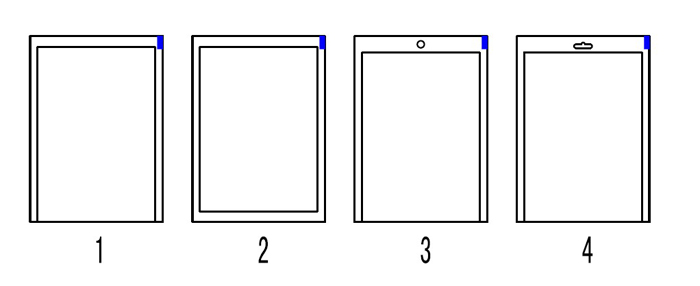

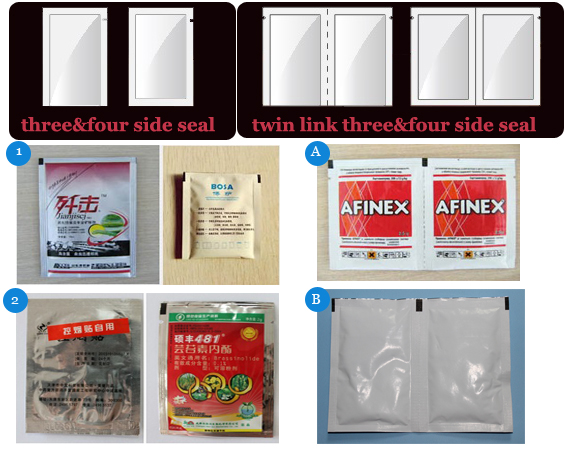

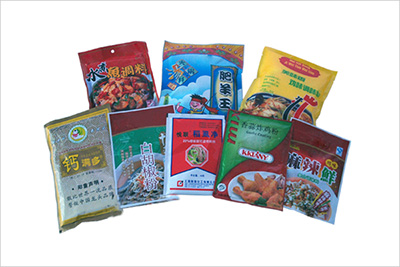

Automatic HFFS Horizontal Roller Film Pouch Forming Liquid Powder Granule packing machine is suitable for below samples
Click here to view HY-180 Automatic Horizontal Roller Film Pouch Forming packing machine running video on YouTube
https://youtu.be/XTLNG_akzsM
Contact us to get more information and quotation
