Manual Piston Liquid Filling Machine

  • USD120
  • Nozzles No.: 1pc
  • Filling range: 5ml-50ml , 10ml-100ml
  • Filling type: Piston cylinder
BASIC INFO

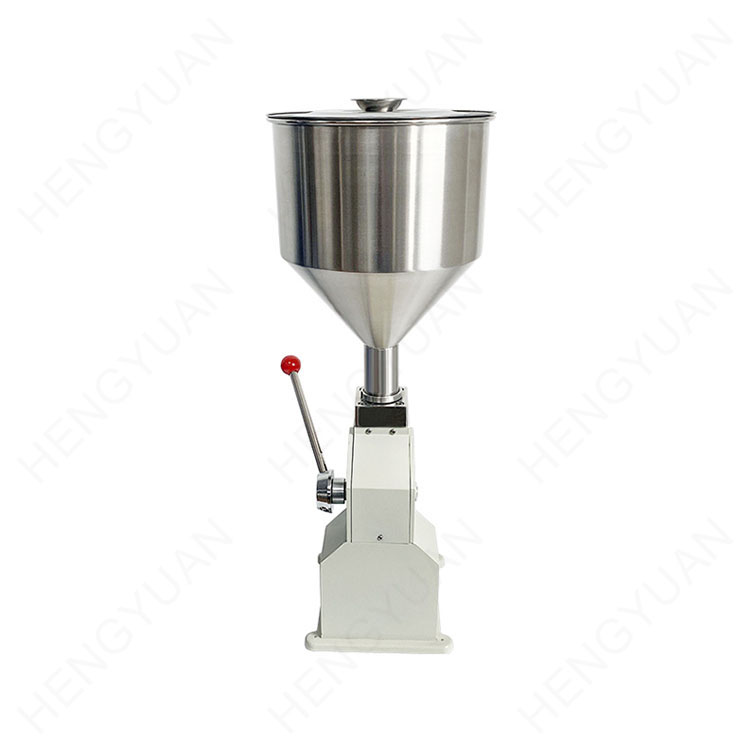

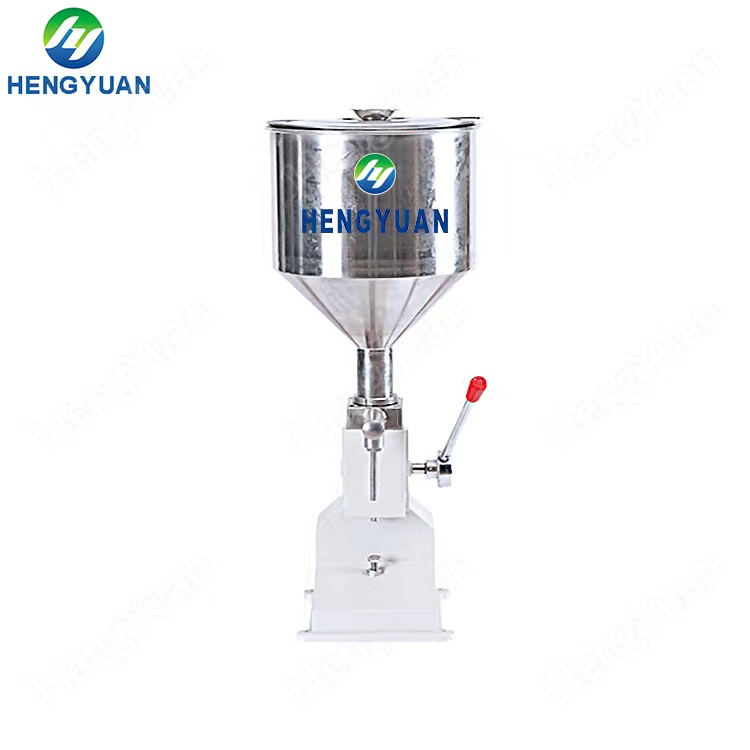

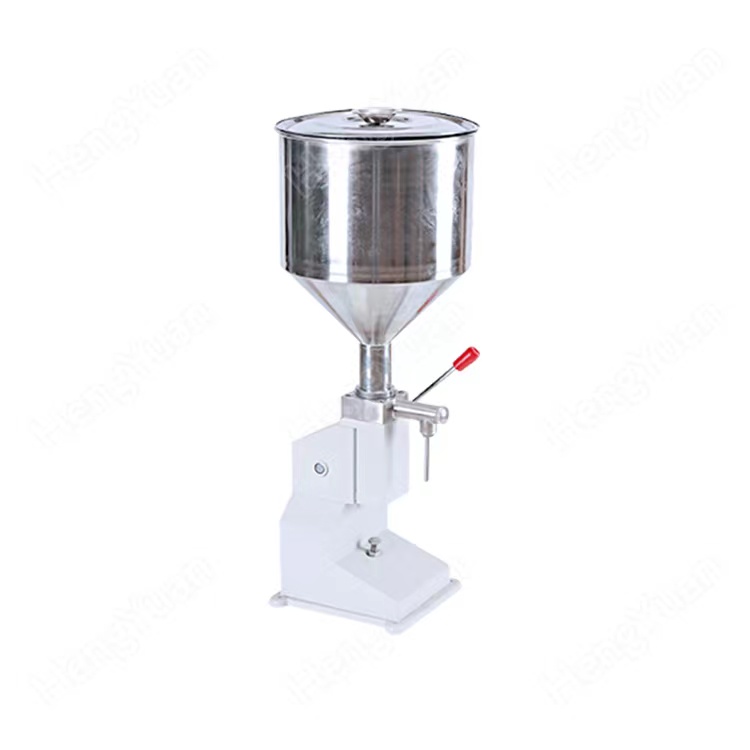

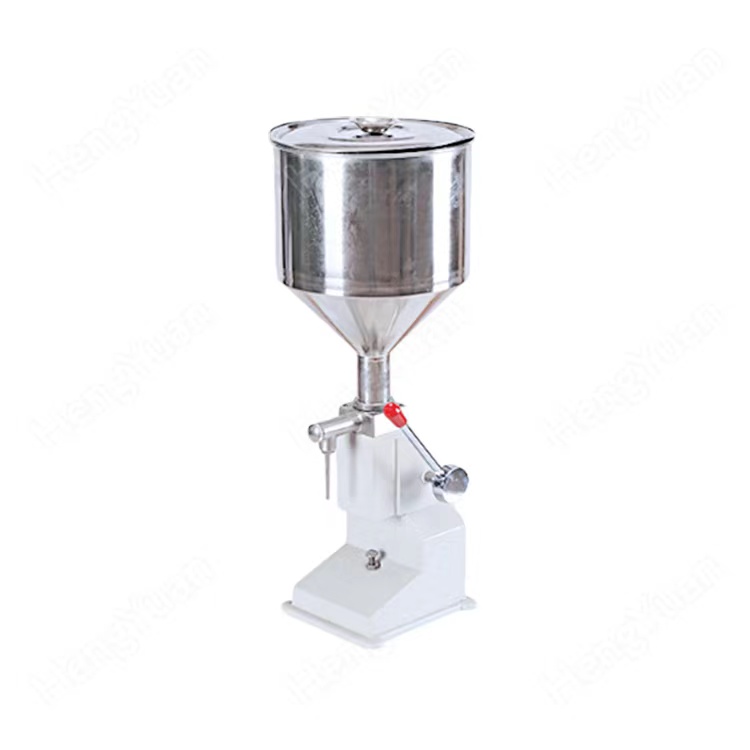

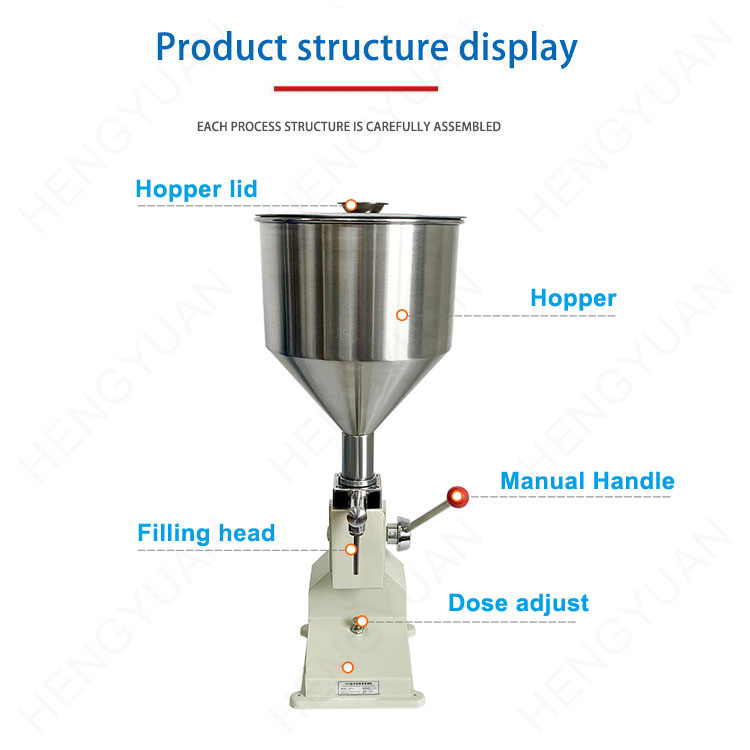

HY-A03 Manual Piston Liquid filling machine Technical Description

A03 manual paste filling machine adopts piston structure, which can quantitatively fill liquid, paste and other materials. It is suitable for pharmaceutical, daily chemical, food, pesticide and special industries, and can also be used for quantitative filling of sealed hoses. It is an ideal paste liquid filling equipment (which can be used for filling aqua, liquid medicine, liquid food, shampoo, shower gel and other materials) and has the function of an all-in-one paste liquid filling machine.


HY-A03 Manual Piston Liquid filling machineMain feature
1) Small filling range: 5-50ml, 10-100ml optional, prices are different. 2) Manual filling method: simple structure, no need electricity and compressed air. (Pneumatic type is availabel) 3) Contact part uses stainless steel, easy to clean. 4) Easy to operate, economical price.

HY-A03 Manual Piston Liquid filling machine Technical Data

Filling range
5ml-50ml , 10ml-100ml
Filling nozzle outer diameter
Customized according to bottle mouth
Filling accuracy
≤±0.5%
Filling speed
0~1200 bottles/minute according to bottle filling volume
Control method
Manual
Filling nozzle diameter
Inner diameter 7mm, outer diameter 8mm (can be customized)
Hopper volume (standard)
10L
Electricity consumption
None
Machine size
28.5*28.5*80cm
Weight
12Kg
Package size
40x40x88cm
Gross weight
14Kg


HY-A03 Manual Piston Liquid filling machineSemi-automatic Rotary Bottle Negative Pressure Wine filling machine Pictures
HY-A03 Manual Cream Filling Machine
HY-A03 Manual Gel Filling Machine
HY-A03 Manual Sauce Filling Machine
HY-A03 Manual Gel Filler
HY-A03 Manual Cream Filling Equipment
HY-A03 Manual Gel Dispensing Machine







HY-A03
 Manual Piston Liquid filling machine Semi-automatic Rotary Bottle Negative Pressure Liquid filling machine is suitable for below bottle samples
Manual liquid filling machine, manual piston filling machine, Honey sachet filling machine, Jam filling machine, Ketchup filling machine, Yogurt filling machine, Facial Cream filling machine, Shampoo sachet filler, Portable Hand Sanitizer Filler, viscous liquid filling machine, lip cream dispensing machine, eye cream filling equipment, nail polish filling machine, hand cream filler, etc.
HY-A03 Manual Facial Cream Filling Machine
Click here to view HY-A03 Manual Power Piston Liquid filling machine running video on YouTube
https://youtu.be/rEZaBmd7vH4
