Pneumatic Piston Cylinder Sauce Filling Machine

Application：Food, Beverage, Chemical, Machinery & Hardware
Keywords：piston type filling machine
Usage：For sauce with granules

BASIC INFO

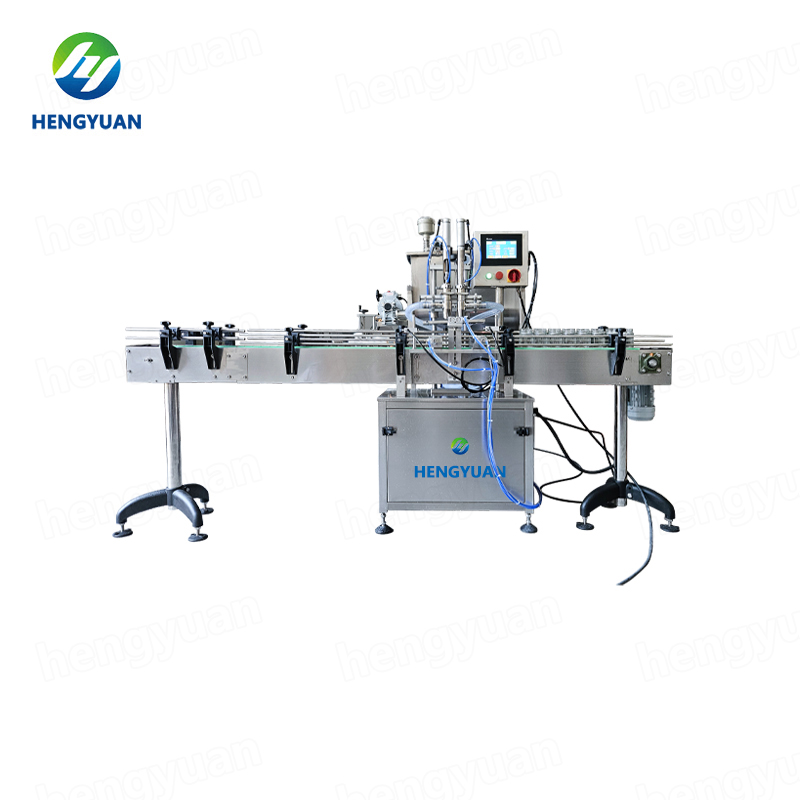

HYAP-1000PSM-2 Automatic Two Head Pneumatic Piston Food Sauce filling machine
With Stirring and Optional Heating Hopper

Automatic Pneumatic Piston Sauce Filler HYAP-1000PSM-2

Product Description

Product Introduction

The automatic sauce filling machine adopts piston cylinder type metering and integrates electronic mechanical and pneumatic components. Material hopper has stirring and optional heating function. The electrical and pneumatic components are selected from world-renowned brands, controlled by PLC, with novel design, compact structure and beautiful appearance. It has the characteristics of economical price, accurate measurement, stable and reliable performance, high degree of automation, simple operation and convenient maintenance. It is widely used in filling of various (including granule) sauces.

Product application

10-1000ml customized two-heads granules mixed viscous liquid filling machine.

For examples: Chili sauce filling machine, Beef paste filling machine, Mushroom sauce filling machine, Granuled sauce dispensing equipment, Soybean sauce filling machine, Pepper chili filler, sesame seasoning oil dispenser, hotpot base filling equipment, vegetable paste filling machine, meat soap dispenser, etc.

Any liquid, half-flowing liquid, viscous cream, with or without granules, sauce dispenser, liquid filler, refill equipment, Vaseline filling machine, paraffin wax filler, hand sanitizer filler, facial cream filler, etc.

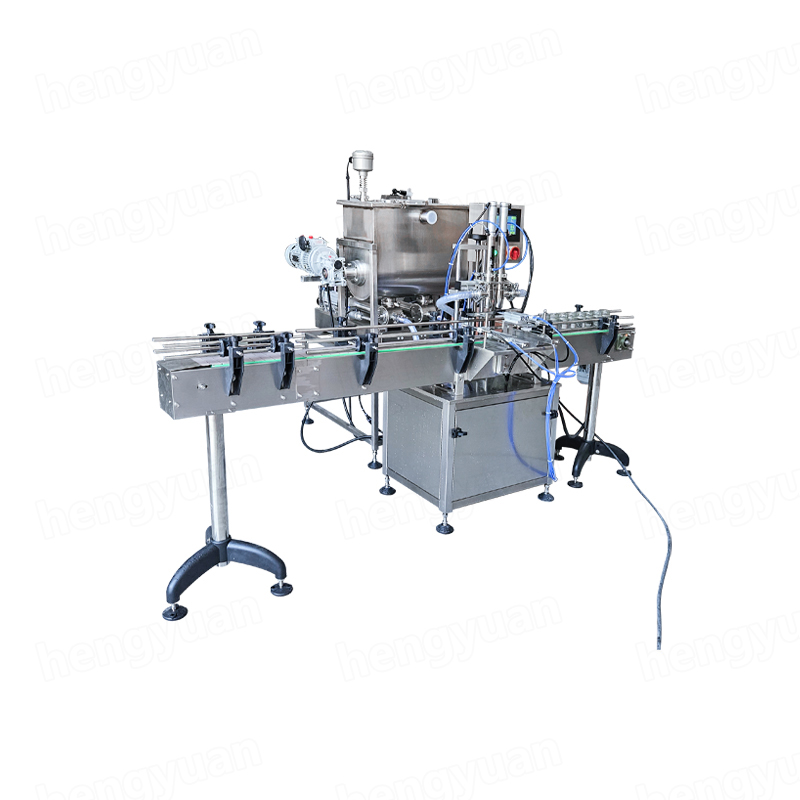

HYAP-1000PSM-2 Automatic Two Head Pneumatic Piston Food Sauce filling machine With Stirring and Optional Heating Hopper

Pneumatic Piston Cylinder Sauce Filling Machine application HYAP-1000PSM-2

Technical Parameters
Model	HYAP-1000PSM-2
Heads	2pc ( Other qty available )
Capacity(BPH)	200ml: Approx 2400
Volume	5-1000ml customized ( other volume is availabel )
Accuracy	≤±0.5%
Suitable Bottles	Height: 100-280mm, Diameter: Φ30-110mm, (can be customized)

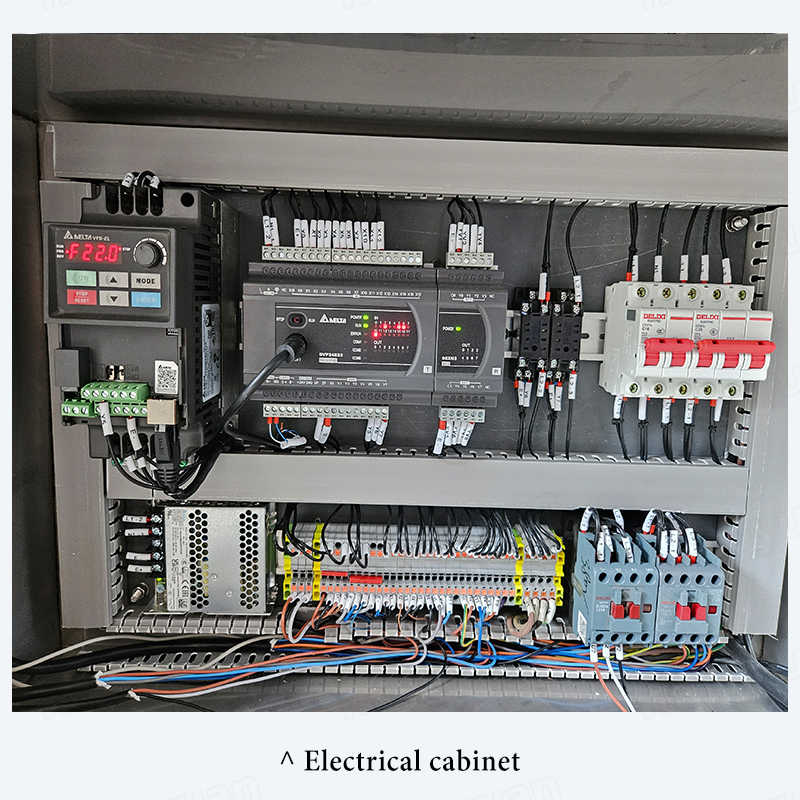

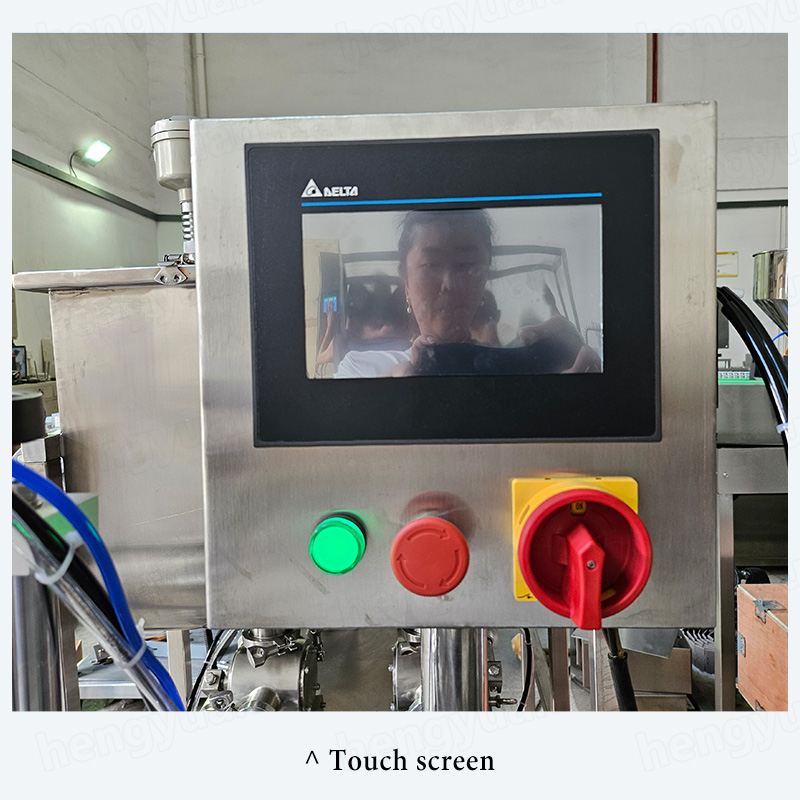

Control method	Touch screen and PLC
Air supply	0.5-0.7Mpa

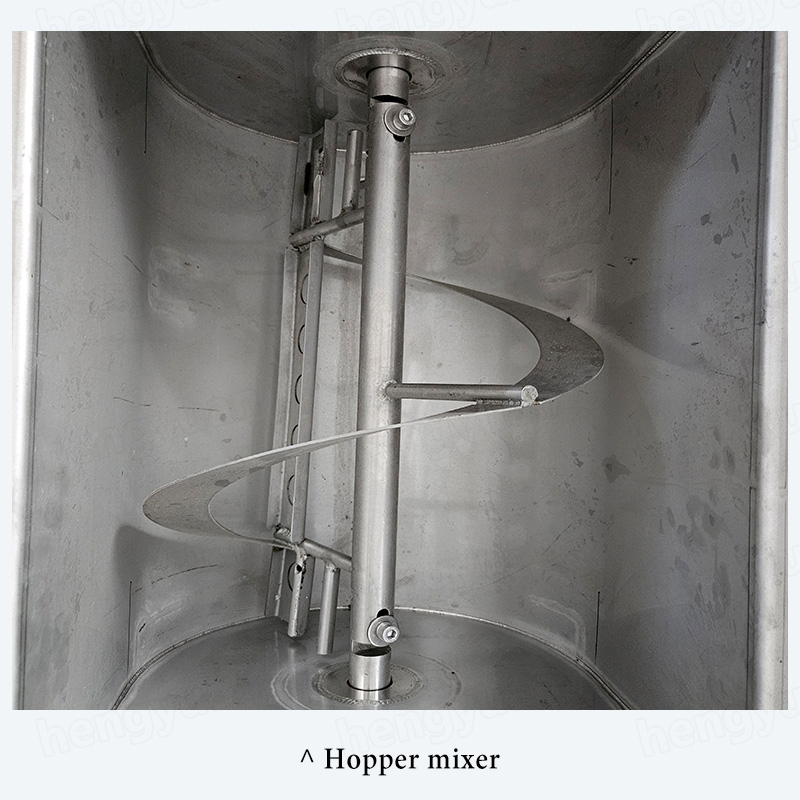

Volume of hopper	80L (with stirring and optional heating)
Power supply	1kw (with stirring, without heating)
Voltage	415V/380V/220V/110V, 3/1 phases , 50/60Hz, customized globally

Main Features

1) Simple structure in linear type, easy in installation and maintenance.

2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3) This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.

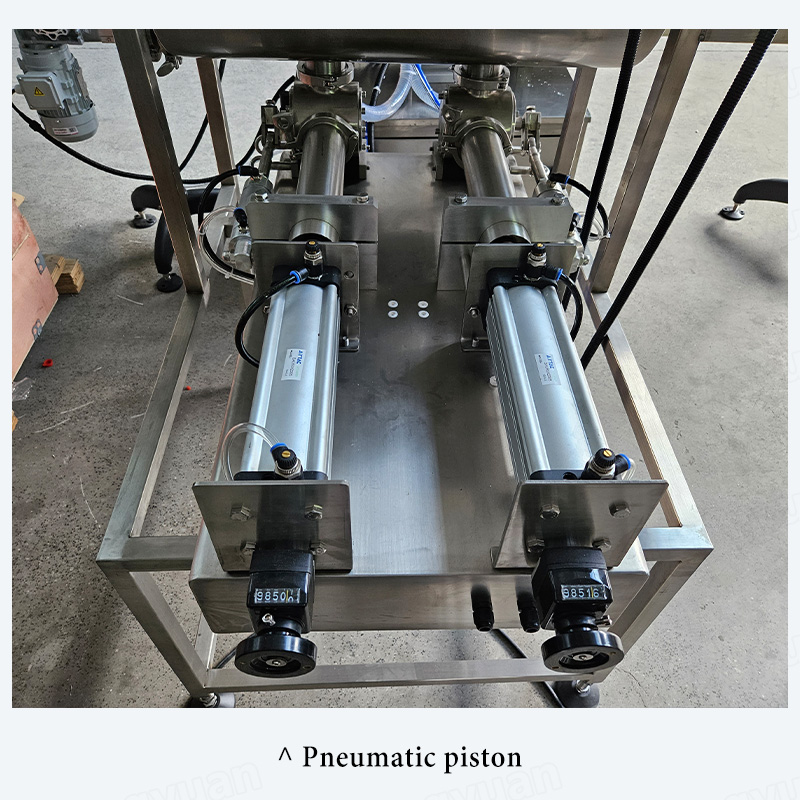

4) Accurate measurement: adopt pneumatic cylinder system, ensure the piston can always reaches constant position.

5) There is anti-leakage tray after nozzles (optional), prevent the liquid drop on conveyor cause pollution.

6) Convenient adjustment: replacement filling specifications only by a handle wheel.

7) Suitable material: sauce, cream, gel, Oil, jams, sauce, daily chemicals, and something that very viscous.

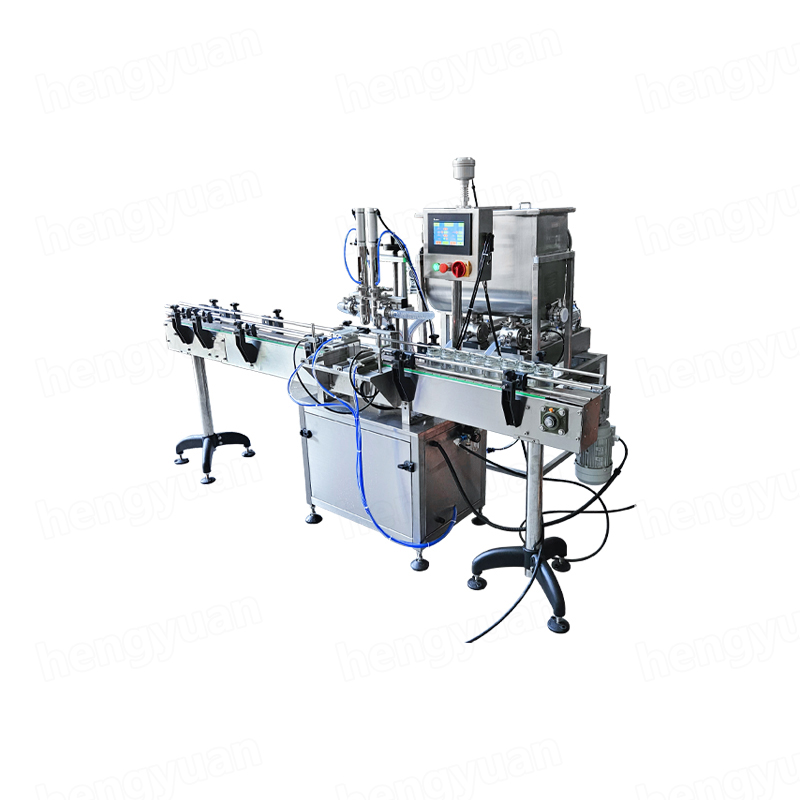

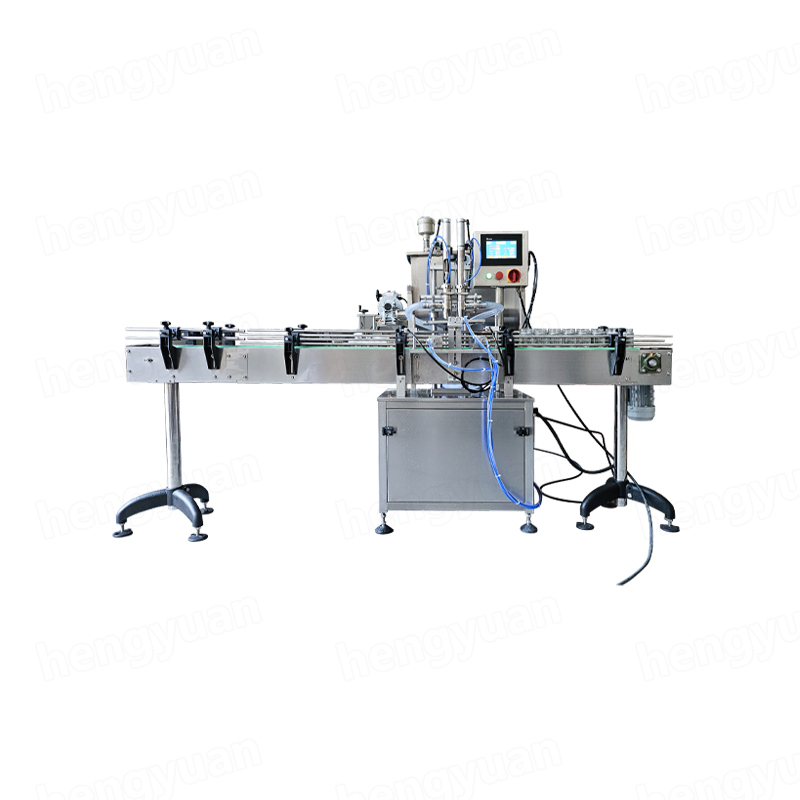

Automatic Pneumatic Piston Cylinder Filling Machine HYAP-1000PSM-2
