Rotary Bottle Unscrambler Machine

  • Model: HYLP-100A-B
  • Bottle size: 10-200ml
BASIC INFO
Single Box Rotary bottle unscrambler Machine Technical description

Automatic disc plate rotating bottle unscrambler machine is electromechanical integration equipment, convenient operation, simple maintenance and reliable running. This machine is equipped with a bottle of quantitative control detection and overload protection device. Noise is less than < 70 db. The machine plate adopt high quality stainless steel 304, in line with the GMP requirements. Using mechanical bottles of correcting mechanism, implement unified bottle. And equipped with for bottle device, greatly improving the production efficiency. This machine is equipped with three stepless speed regulating motor. One used to adjust unscramble bottle rotary speed, unscramble bottle rotary speed faster, the faster the speed of the bottle also, conversely the more slowly. And at the exit of this machine is equipped with a photoelectric switch, autonics testing bottle conveyor belt if there is a wall behind the phenomenon, such as a wall bottle, the bottle of rotary motor automatic stop. If detected lack of bottle, automatic startup. This machine realized the entire intelligent.


Main technical data
  • Applicable bottle diameter: ф 10 mm to 65 mm by changing rotating disc plate
  • Suitable bottle type: 10-200ml plastic bottles
  • Production capacity: 50-120BPM (according to bottle spec)
  • Power supply: 110V/60hz, AC220v / 50 hz customized
  • Power: 0.3 Kw
  • Weight: 200 kg
  • Overall dimensions (length * width * height) : 100* 90* 100cm

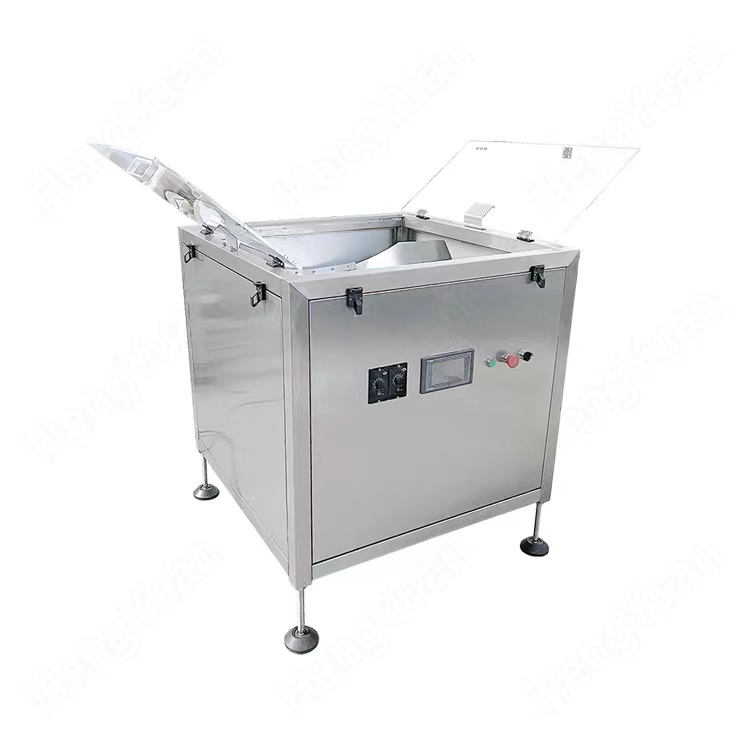

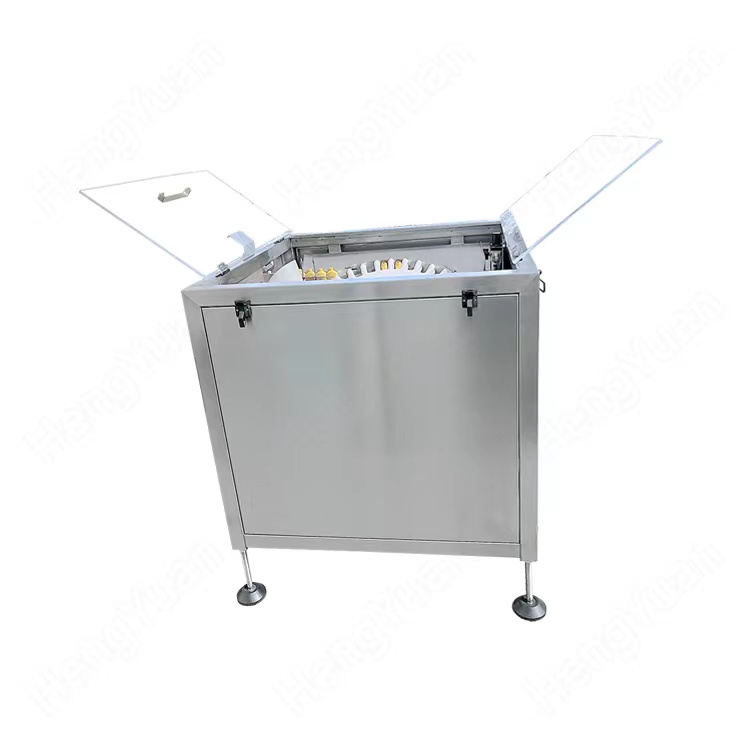

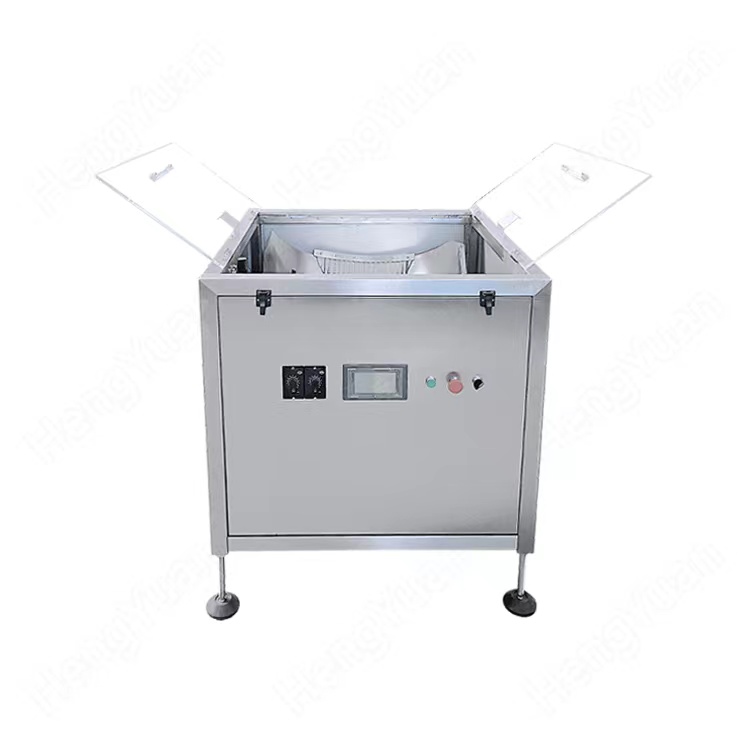

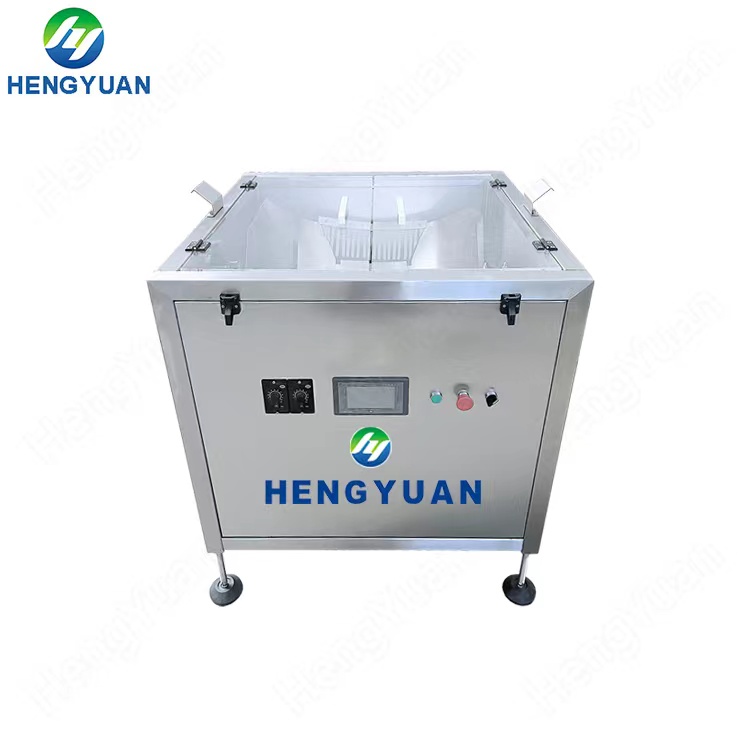

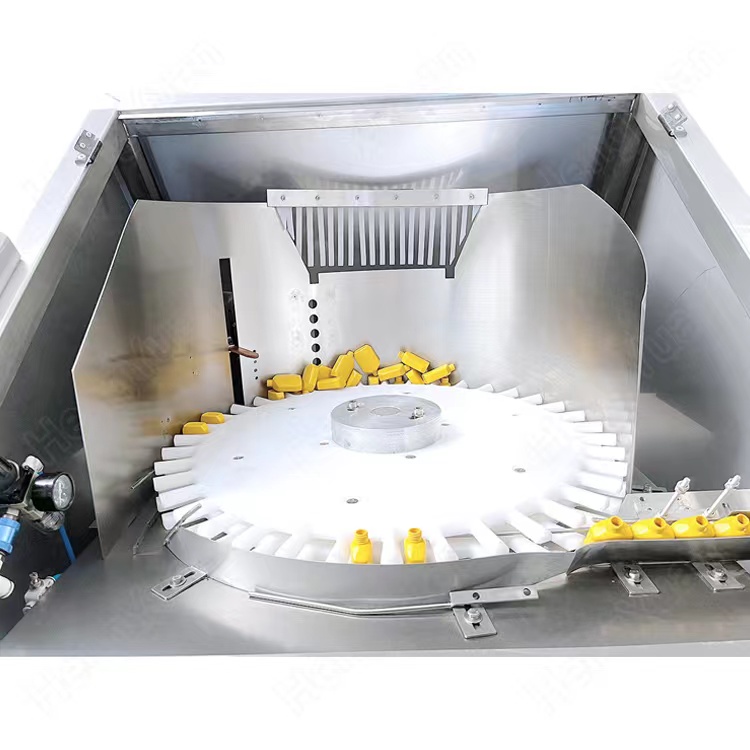

Rotary bottle unscrambler machine pictures


HYLP-100A-B Automatic Bottle Unscrambler.jpg
HYLP-100A-B Automatic 100ml Bottle Unscrambler.jpg
HYLP-100A-B Automatic Eyedrop Bottle Unscrambler.jpg
HYLP-100A-B Automatic Pesticide Bottle Unscrambler.jpg
HYLP-100A-B Automatic Hand Sanitizer Bottle Unscrambler.jpg
HYLP-100A-B Automatic 50ml Bottle Unscrambler.jpg
HYLP-100A-B Automatic Bottle Orienter.jpg
Suitable bottle sample

Automatic bottle unscrambler, small bottle unscrambler, plastic bottle orienter, pesiticide bottle automatic sorting machine, hand sanitizer bottle unscrambler, nosal spray bottle unscrambler, medical tablets bottle orienter, oral liquid bottle sorting machine, syrup bottle unscrambler, essential oil bottle orienter, alcohol bottle sorting machine, eyedrop bottle orienter, juice bottle sorting machine, liquid mosquito repellent incense bottle sorter, etc.

HYLP-100A-B Automatic bottle unscrambler

22070803 HYLP-100A-B Automatic Bottle Orienter.jpg


Click here to view rotary bottle unscrambler machine running video on youtube
https://youtu.be/QkDUUPIDc30




Contact us to get more information and quotation
  • Email : sales@myhymachinery.com
  • Skype: hymachinery01@hotmail.com
  • Mobile/WhatsApp: +8613776804621
