The semi-automatic weighing type filling machine has advantage of high accuracy when filling liquid. It is matched with servo motor and PLC to control filling. It is widely used in lubricant, cooking oil, cosmetics, daily chemical industries.

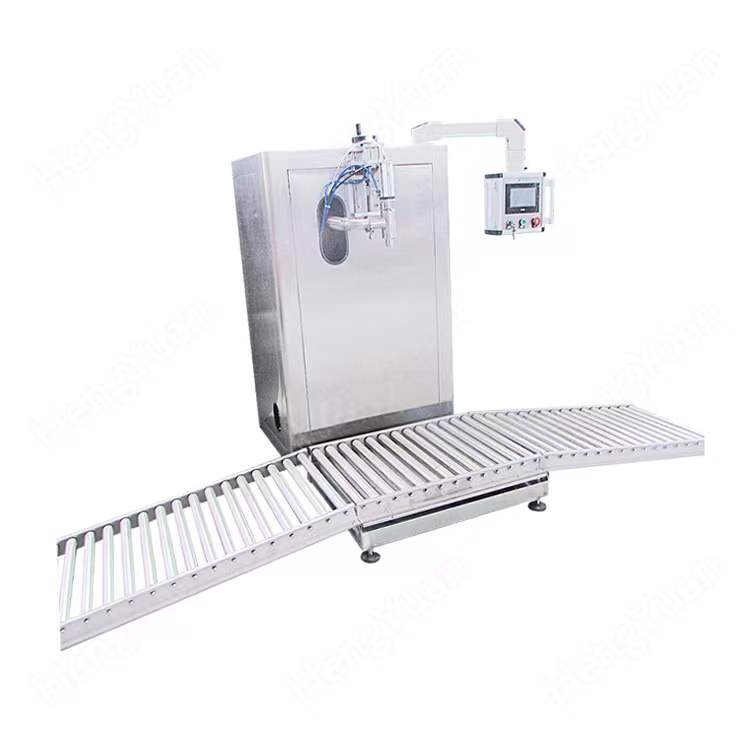

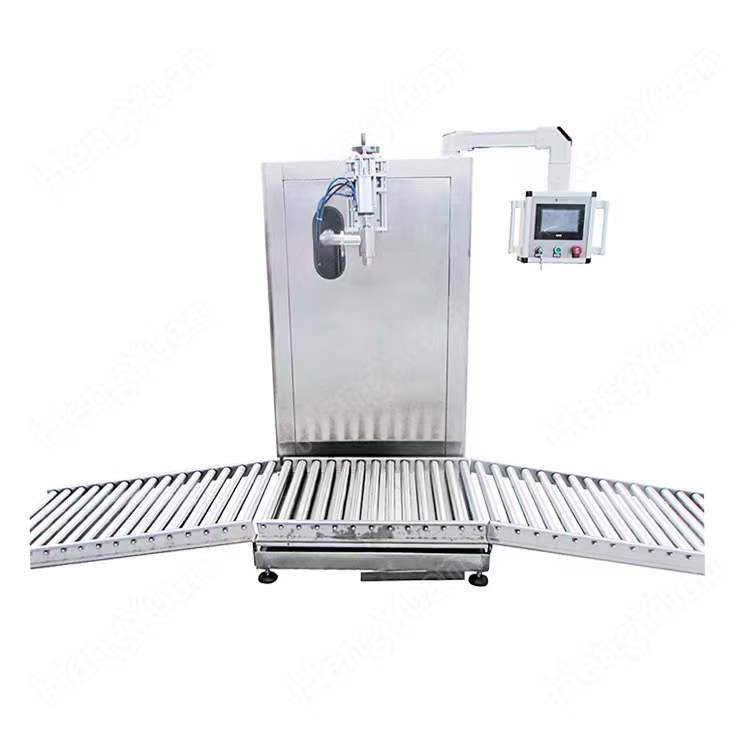

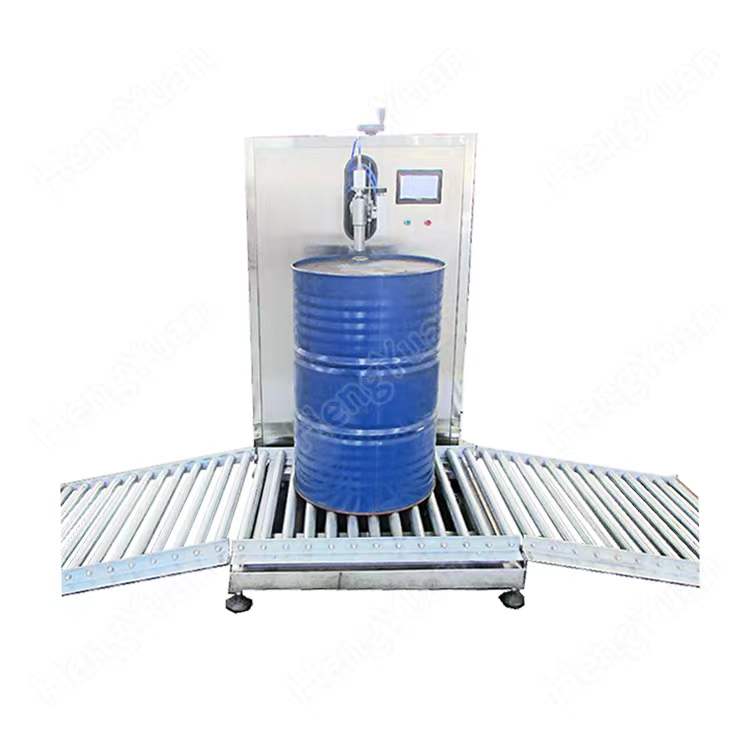

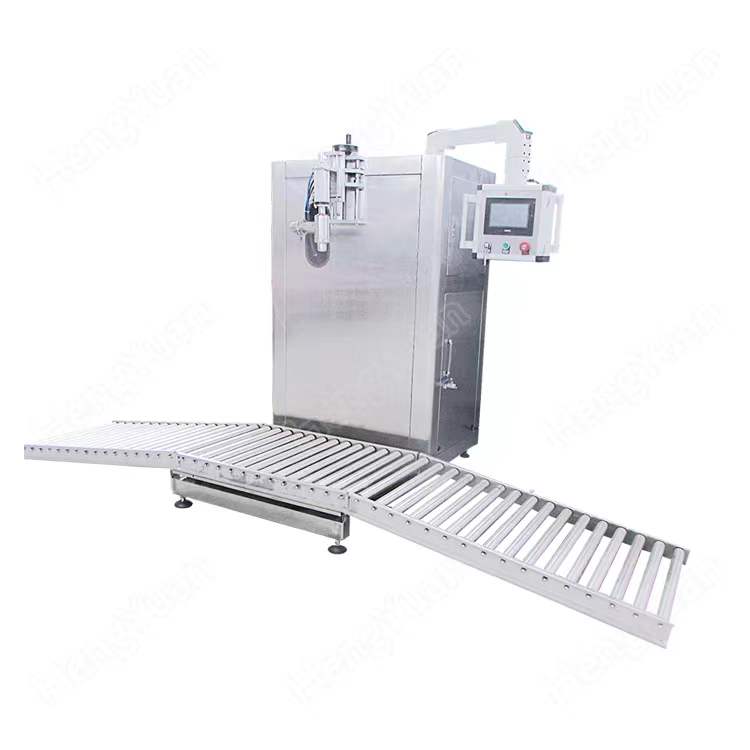

1.The computer quantitative filling machine consists of feeding system, weighing system, frame, pneumatic control system, control system and powerless raceway.
2.Feeding mode: Require continuous and stable feeding (using feeding pump or hopper pressurized feeding)

3.The feeding mechanism is operated by solenoid valves through the cylinder for fast and slow feeding.
4.Filling method: conventional filling and lifting submerged filling (when ordering according to need)

5.The weighing system consists of weighing bracket, sensor and weighing platform with powerless drum and frame support and filling system.

6.Pneumatic control system: control fast and slow feeding valve.

7.The weighing platform is not allowed to be subjected to additional external forces during use.

1.The system uses weighing filling, with high measurement accuracy and is not affected by materials.
2. The feeding valve composed of fast and slow feeding can not only improve filling speed but also improve filling accuracy.
3. The measurement range is wide and the measurement error is less than 10 g/barrel.
4. The filling head adopts anti-drip and leak device, and the filling material has no bubbles, so the effect is good.

• Filling nozzles number: 1 and 2 pcs customized
• Filling capacity: around 20-30 barrels/hour (according to filling volume)

• Applicable bottle height: unlimited  ( can be customized )

• Filling capacity: 100-200Kg

• Filling accuracy: <0.5%

• Available Bottle Diameter: No Limitation  ( can be customized )
• Power supply: 4.0KW

• Weight: 300Kg

• Size: 93*75*170cm ( main machine )
           330*72 cm ( roller )

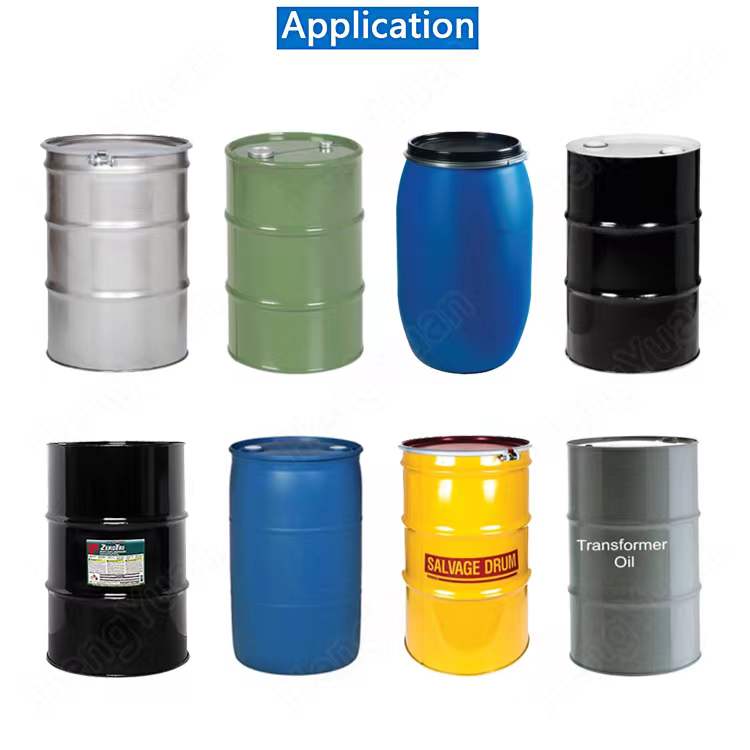

100L Lubricant barrel filling machine, 100kg motor oil filling machine, 180kg liquid barrel weighing filler, 200L motor oil weghing dispensing machine, 150kg vegetable oil drum filling machine, cooking oil barrels filler, 100-200kg chemical raw liquid dispensing machine, etc. HYWF-200S Semi-automatic Weighing Dosing Liquid filling machine.
