Semi-automatic High-precision Plane Labeling Machine

Model: HYT-618
Suitable object shape: Flat
Stick label quantity: 1 pc

BASIC INFO

HYT-618 Semi-automatic High-precision Plane labeling machine Technical description

Semi-automatic Desktop high-precision plane labeling machine is suitable for labeling the upper plane, curved surface and concave surface of products, with a labeling accuracy of up to ±0.2mm It is mainly used for precision labeling of electronic components and digital products, such as SD cards, mobile phone batteries, FPC and mobile phone chargers. High-precision labeling highlights the excellent quality of products and improves competitiveness.
Suitable for uneven surface labeling by changing the label overlaying mechanism, such as the labeling on concave surface and circle-arc surface.
Suitable for labeling on various irregular-shaped bottle by changing fixtures.
Optional ribbon print coder or ink-jet printer, to print production date and batch number on the label, achieving coding -labeling integration. Adjust parameters on touch screen.

Semi-automatic plane label applicator is widely used daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.

Main technical data

Labeling capacity	0~30pcs/min
Labeling accuracy	±0.5 mm
Label material	Adhesive sticker
The inner diameter of label roll	76 mm
The outer diameter of label roll	240 mm(max)
The suitable size of label	Width 5-70 mm, length 10-70 mm
The suitable size of labeling objects	Width 20-180 mm, Length 20-200 mm, Thickness: 0.2mm ~ 75mm
Total Power	200w
Power supply	AC220V/110V, Single phase. Globally customized
Net weight	About 50kg
Machine size	59(L)x42(W)x78(H)cm

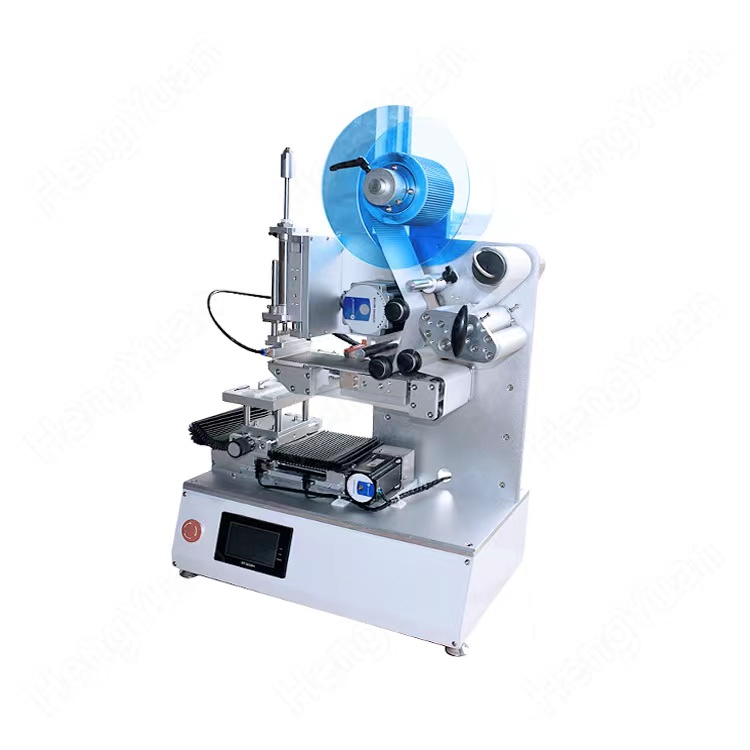

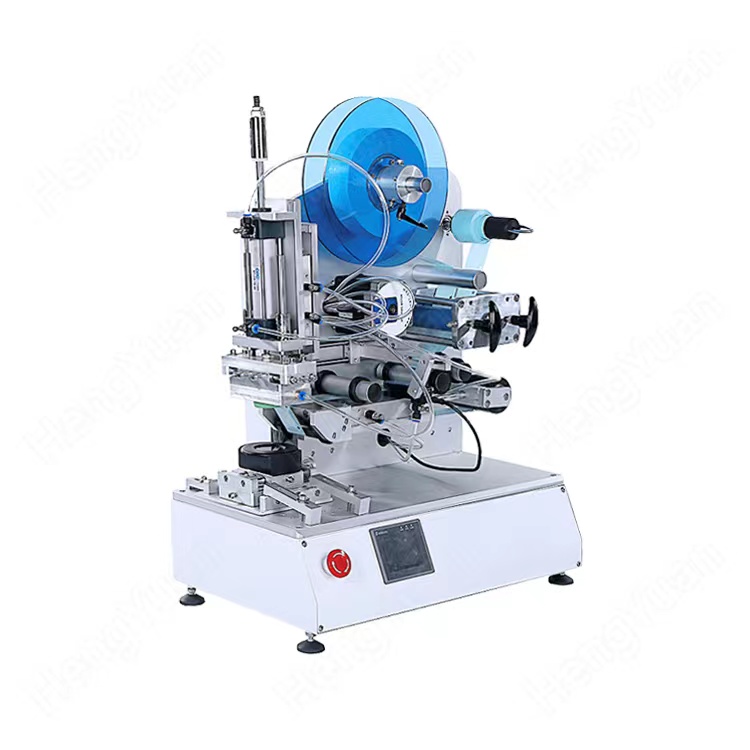

HYT-618 Semi-automatic High-precision Plane labeling machine picture
HYT-618 Desktop High-precision Plane Labeling Machine.jpg

HYT-618 Desktop High-precision Plane Label Applicator.jpg

HYT-618 Table Top High-precision Plane Labeling Machine.jpg

HYT-618 Semi-automatic Table Top High-precision Plane Labeling Machine.jpg

HYT-618 Semi-automatic Table Top High-precision Plane Labeling Machinery.jpg

HYT-618 Semi-automatic Table Top High-precision Top Side Plane Labeling Machine.jpg

HYT-618 Semi-automatic Table Top High-precision Upper Side Plane Labeling Machine.jpg

HYT-618 Table Top Upper Side High-precision Plane Labeling Machine.jpg

HYT-618 Semi-automatic Desktop High-precision Plane labeling machine Application
Desktop flat surface labeler, Semi-automatic plane labeling machine, SD cards plane label applicator, mobile phone batteries labeler, FPC labeler, mobile phone chargers labeling machine, packaging box plane label applicator, bottle caps label applicator, plastic shell sticker labeling machine, flat boxes label applicator, book surface labeling machine, cream lid top label applicator, electronic component top surface label applicator, etc.
HYT-618 Table Top High-precision Plane Labeling Machinery.jpg

HYT-618 Table Top High-precision Plane Labeling Machinery.jpg

Click here to view HYT-618 Semi-automatic High-precision Plane Label Applicator running video on youtube
https://youtu.be/UD_CvKMuRrs
