Semi-automatic Soft Tube Filling and Ultrasonic Sealing Machine

Model: HYTF-100S
Nozzles No.: 1 pc
Filling amount: 6ml-500ml customized

BASIC INFO

HYTF-100S Semi-automatic Soft Tube Filling and Ultrasonic Sealing Machine Technical Description

Semi-automatic Tube Filling and Sealing Machine is suitable for filling all kinds of pasty and viscous fluid and the materials alike, into plastic and composite metal tubes and then internally heating tubes, sealing and printing lot number.
It is used in the industries of pharmaceutics, foodstuffs, cosmetic and daily chemicals . With touch screen and the PLC control system employed, convenient, visualized and reliable non-touch operation the machine is effected compact design. Manually feeding tubes, marking identification, filling, ultrasonic sealing, code printing, trimming by automatic system, manually take products.
The part contacting materials is made of stainless steel, clean, sanitary and conforming to GMP.

Main Technical Data

Production capacity	8-12pcs/min
Tube size	Dia.12-50mm, height 50-220mm
Filling volume	A. 6-60ml, B. 10-120ml, C. 25-250ml, D. 50-500ml
Filling accuracy	± 1%
Rejection rate	< 1%
Filling method	Pneumatic piston pump
Hopper	With mixer and heater(optional)
Hopper volume	35 L(can be customized)
Power	2Kw
Ultrasonic frequency	20kHz
Station qty	One
Suitable tube	Single tube
Tube material	Plastic composite pipe, aluminum plastic pipe
Automatic identification system	No pipe, no tail sealing
Compressed air	0.6MPa
Dimension	86(L) x 65(W) x 155(H) cm
Net weight	130kgs
General power supply	AC 220V/110V(Optional), Single phase, Globally customized

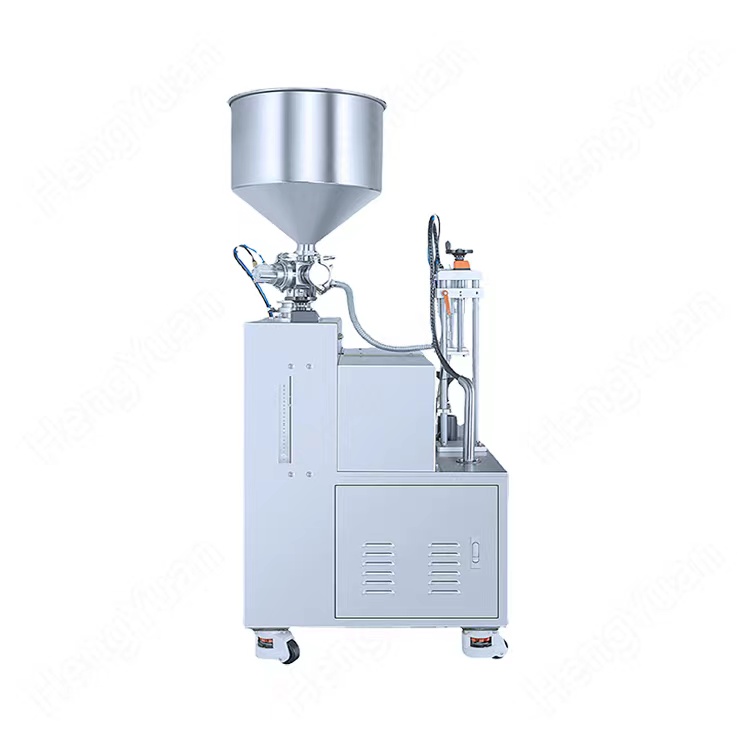

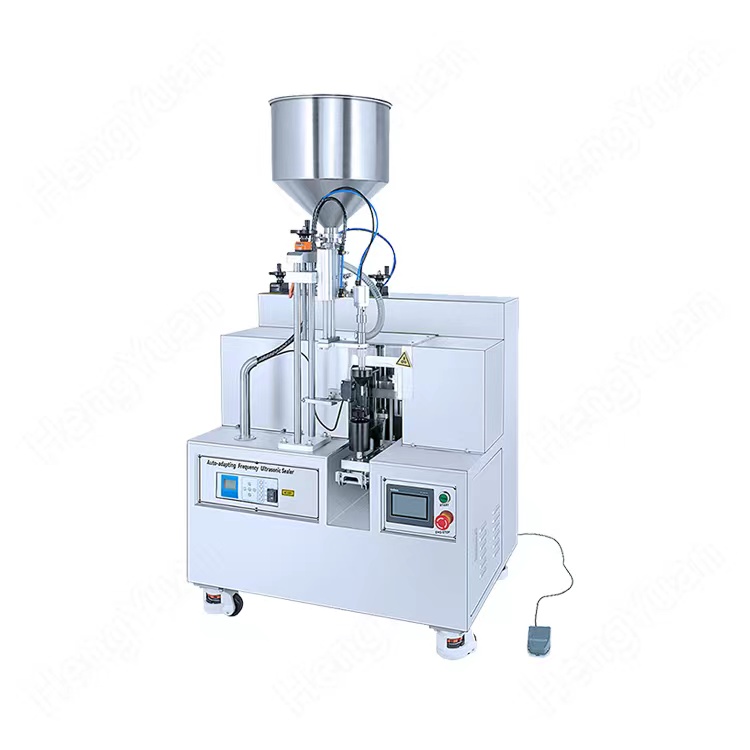

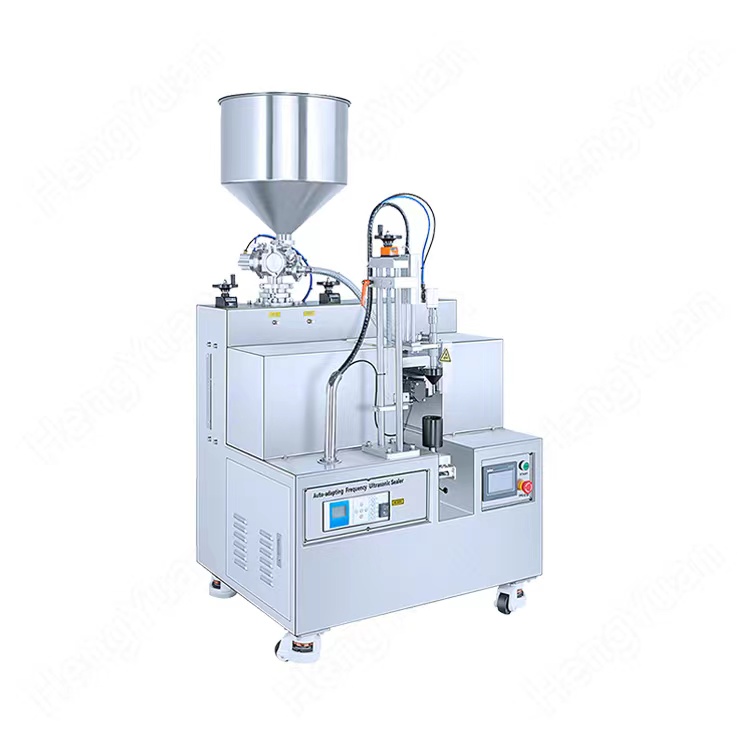

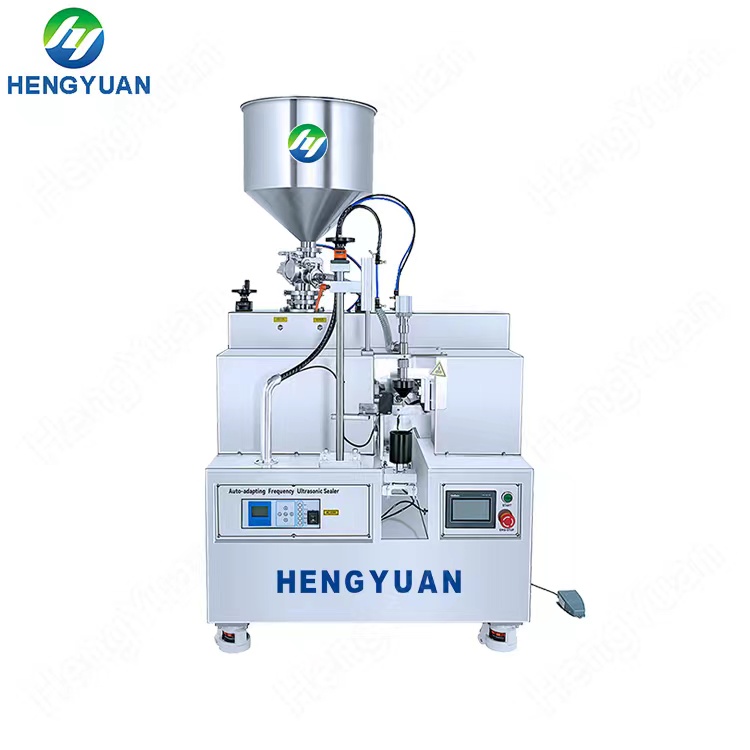

HYTF-100S Semi-automatic Soft Tube Filling and Ultrasonic Sealing Machine Pictures

HYTF-100S Semi-automatic Soft Tube Filling and Ultrasonic Sealing Machine is suitable for below bottle samples
Tube material: plastic soft tube, aluminum plastic or plastic laminate tube
Filling material: ointment tube filling sealing machine, adhesives soft tube filler sealer, AB glue soft tube filling sealing machine, Neoprene plastic tube filling sealing equipment, epoxy glue tube filling sealing machine, skin cream filling sealing machine, hair cream filling sealing machine, boots oil soft tube filler sealer, toothpaste tube filling sealing machine, hand cream filler sealer, chocolate sauce tube filling sealing machine, honey tube filling sealing machine, etc.
Tube Filling Sealing Machine Soft Aluminum Plastic Semi-automatic .jpg

Tube Filling Sealing Machine Soft Aluminum Plastic Semi-automatic .jpg

Click here to view HYTF-100S Semi-automatic Soft Tube Filling Sealing Machine running video on YouTube
https://youtu.be/dI1V_XDipK8
