Semi-automatic single-head high-flow liquid filling machine

  • Model: HY-17C-P
  • Nozzles No.: 1pc
  • Filling range: 0.5L-30L (customized)
  • Pump types: Diaphragm Pump (Gear Pump is optional)
BASIC INFO
HY-17C-P Semi-automatic single-head high-flow liquid filling machine Technical Description

GFK-700 series digital numerical control liquid filling machine uses micro-computer to control the mini-pump on filling time and the rotation rate of electric motor so that the machine can fill the liquid fluently and at high accuracy. There is no mechanical metal part or abrasion inside the pump.

This numerical control liquid filling machine is compact and portable. The casing uses stainless steel so it is durable and easy to clean. The machine has a self-prime pump that can suck in the liquid from your container and then output via the two nozzles. It is suitable for filling low-viscous liquid without pellets.

Main feature
1) Import single-chip microcomputer control, high efficiency, low power consumption
2) Automatic counting function, effectively control filling quantiy
3) LCD display, touch screen is very easy to operate
4) High filing accuracy
5) Wide Voltage range
6) Working performance is stable and can be used for long time
7) This can self-suck the liquid.
8) Use diaphragm pump to fill free flowing liquid, gear pump is optional to fill laundry detergent, dish wash, such low-viscous liquid.
9) Use pneumatic pump to anti-dripping.
10) Reasonable design, made of stainless steel, meet GMP requirement


Main Technical Data
Filling range
Controlled by time, no limitation
Max Suck Distance
2meter
Max Flow Rate
35L/min
Repeat Error
≦±0.5%
Anti-dripping Function
Available
Memory Function without Electricity
Available
Power
300W
Voltage
220V/50Hz, 110V/60Hz globally customized
Machine Size
36x36x20cm
Net Weight
17kg


HY-17C-P Semi-automatic single-head high-flow liquid filling machine Pictures

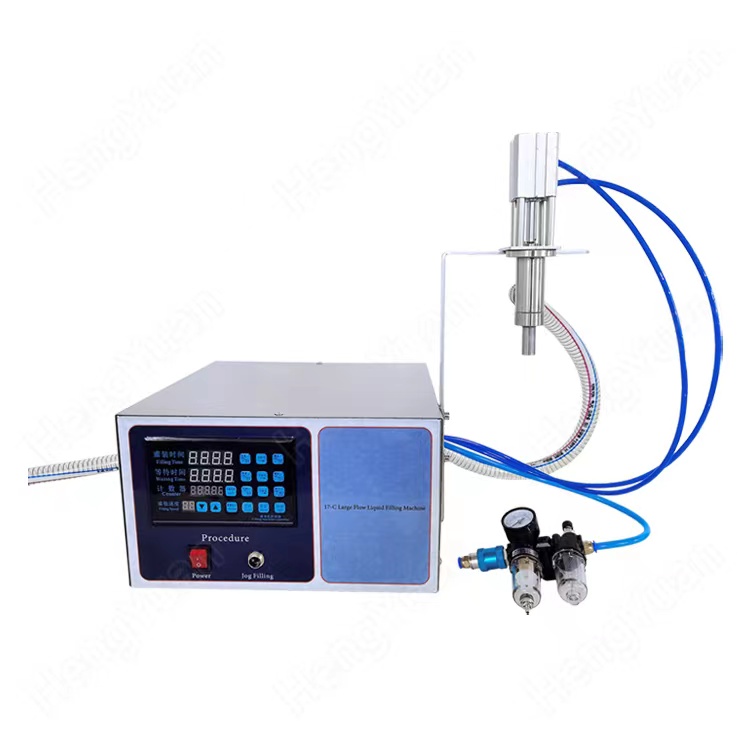

HY-17C-P Semi-automatic Single Head Liquid Filling Machine.jpg

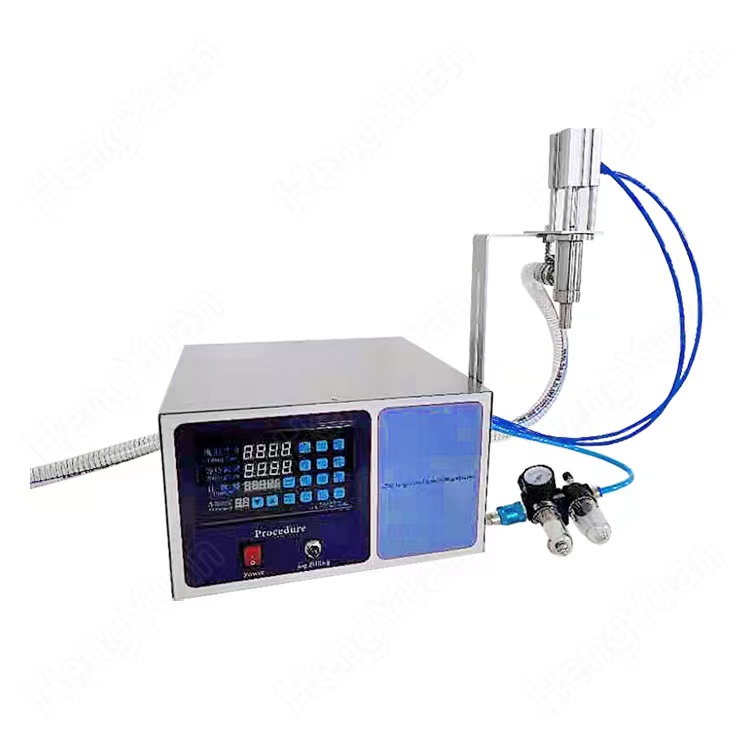

HY-17C-P Semi-automatic Single Head Water Filling Machine.jpg

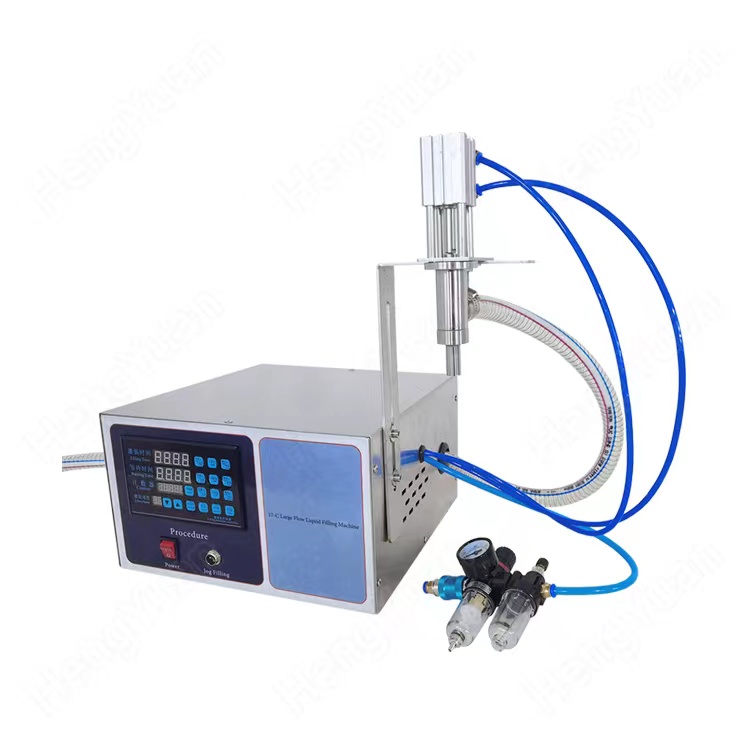

HY-17C-P Semi-automatic Single Head Cooking Oil Filling Machine.jpg

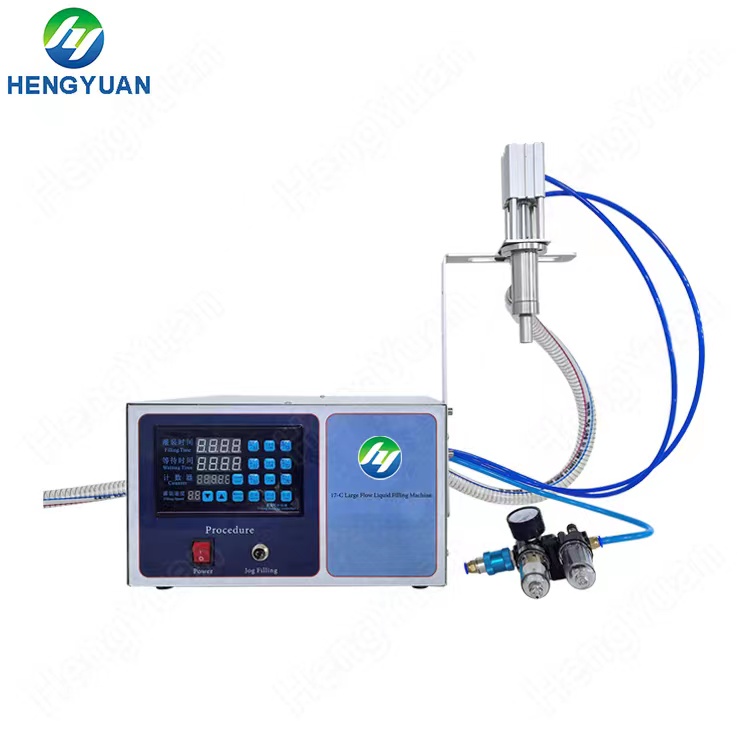

HY-17C-P Table Top Single Head Liquid Filling Machine.jpg
HY-17C-P Desktop Single Head Liquid Filling Machine advantages.jpg

HY-17C-P Semi-automatic single-head high-flow liquid filling machine is suitable for below bottle samples

Water filling machine, juice filling machine, cooking oil filling machine, beverage drinking filling machine, vinegar filling machine, milk filling machine, lubricant oil filling machine, motor oil oil, laundry detergent filling machine, liquid fertilizer filling machine, laundry detergent dispensing equipment, dish wash dispensing machine, desktop liquid filling machine, table top liquid filler
HY-17C-P Desktop Single Head Lubricant Oil Filling Machine.jpg
Click here to view HY-17C-P Semi-automatic single-head high-flow liquid filling machine running video on YouTube
https://youtu.be/KLYyBBZHfo8
