BASIC INFO
Vertical Form Fill Seal automatic LIQUID packaging machine Technical Description
Small VFFS Vertical Form Fill Seal automatic packing machine is a new type packaging machine developed for small sachet packing widely used in all kinds of industries of agricultural, foodstuff, pharmacy, fertilizer etc. Vertical Form Seal automatic packaging machine integrates bag-forming, filling, sealing, cutting, printing, punching, counting, etc. into one, its packaging rate can reach 25~60 times/minute. The kernel control section of the packaging machine adopts text screen or PLC and touch screen. The automation degree and operating reliability of this system has reached domestic advanced level. In addition, this packaging machine can realize quick changeover between continuous bag packaging and separate bag packaging, thus improving flexibility of field use. It can be connected with material elevator, output conveyor, metal detector, afterward-packaging equipment to form a fully automatic packaging streamline.
By using piston measuring method, it can pack liquid, cream, gel, sauce.
It also can use other liquid dosing device.
Main Technical Data
Model: HYVF-280L
Pouch length: 50-150mm
Pouch width: 15-130mm
Packing accuracy: ≤±1%
Power: 1.6kw
Power supply: 220V/50hz
Roll film material: PET+PE/PET+AL+PE/NY+PE/NON-WOVEN FABRIC/PAPER-PLASTIC FILM

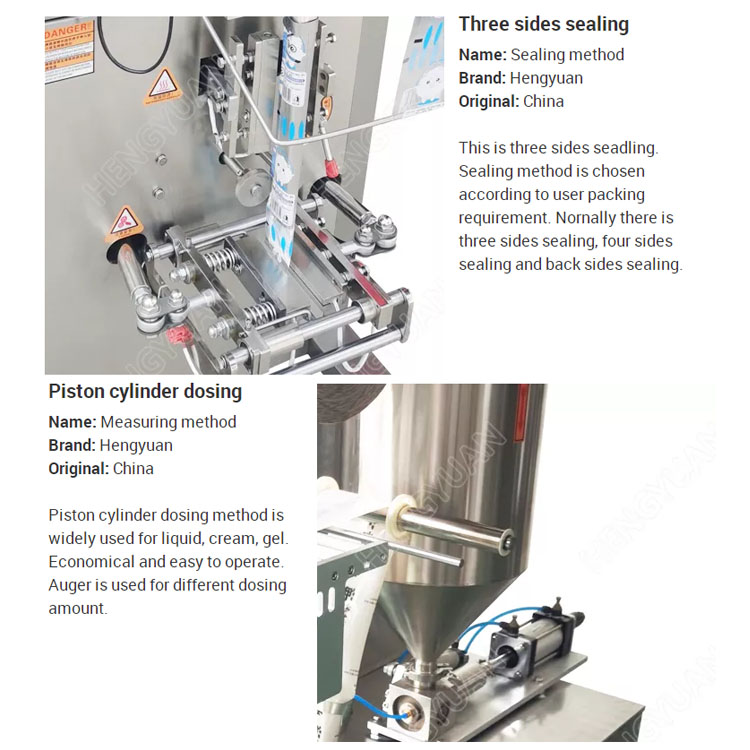

Sealing method: three sides/ four sides, back sides
Net weight: 300kg
Machine size: L600xW790xH1800mm

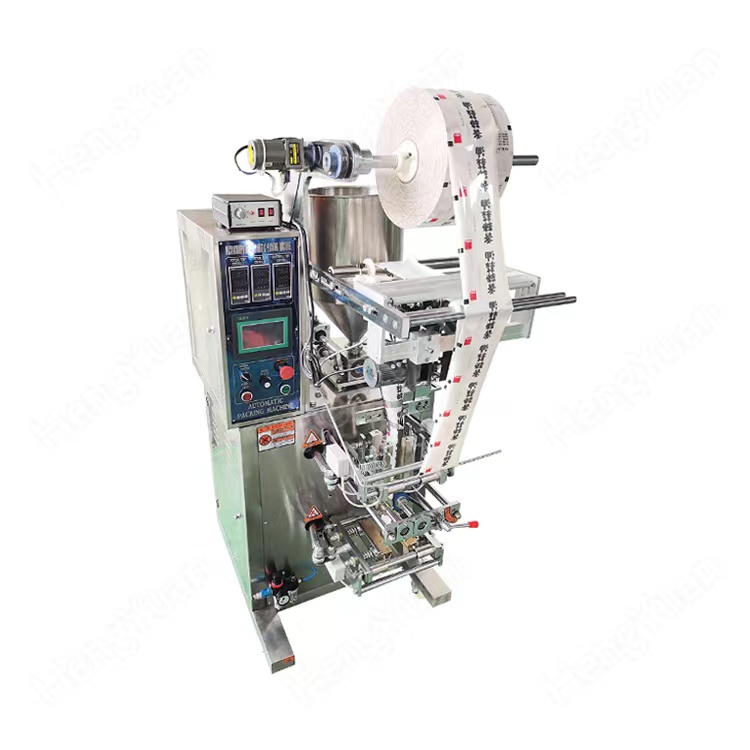

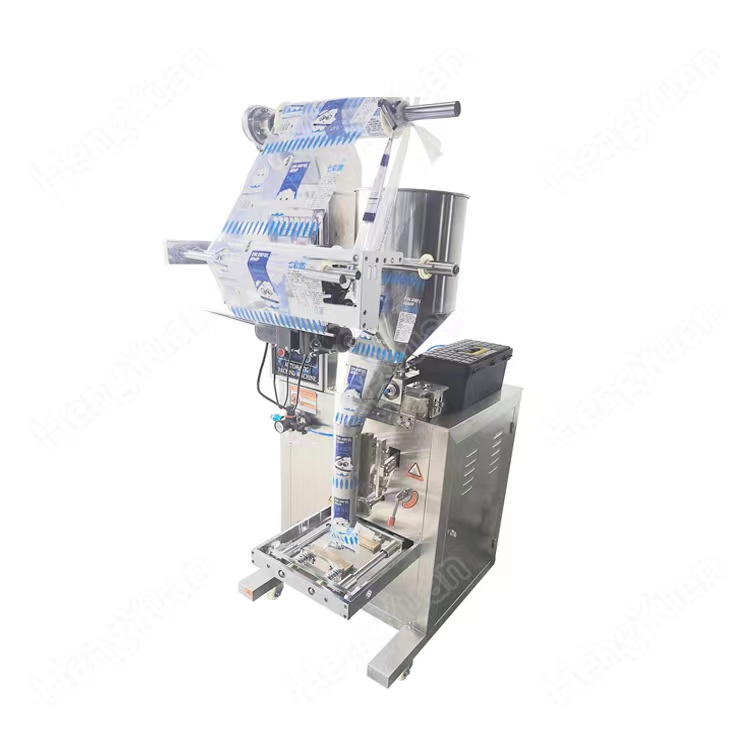

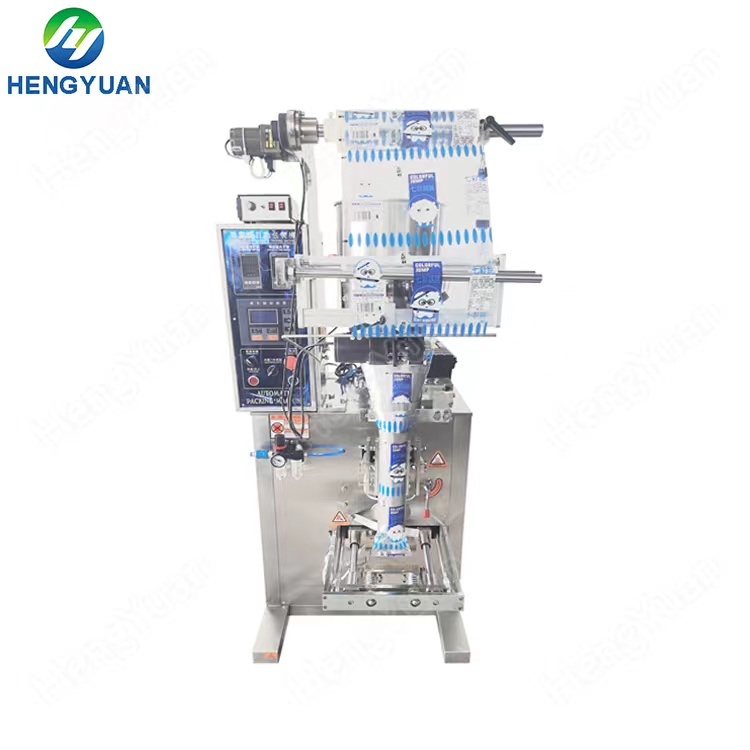

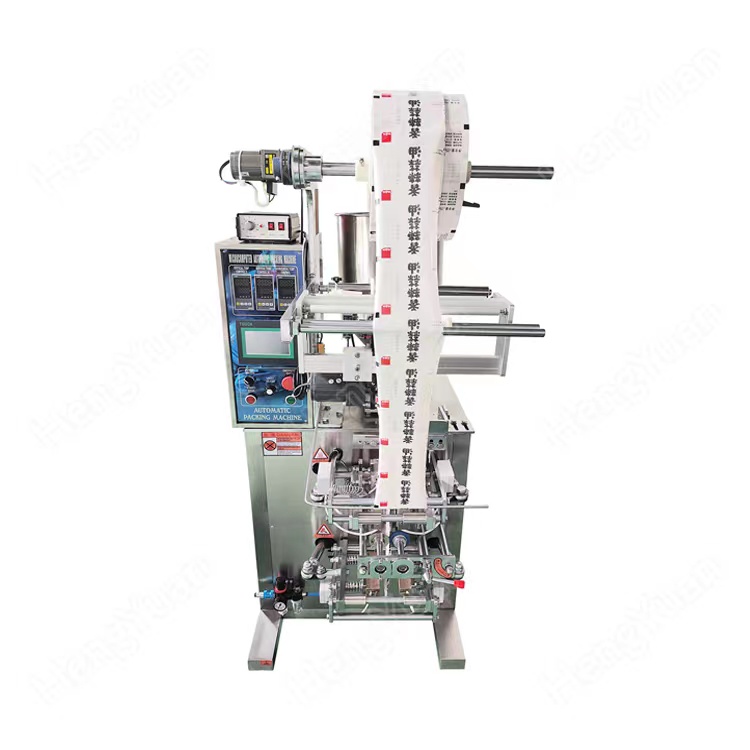

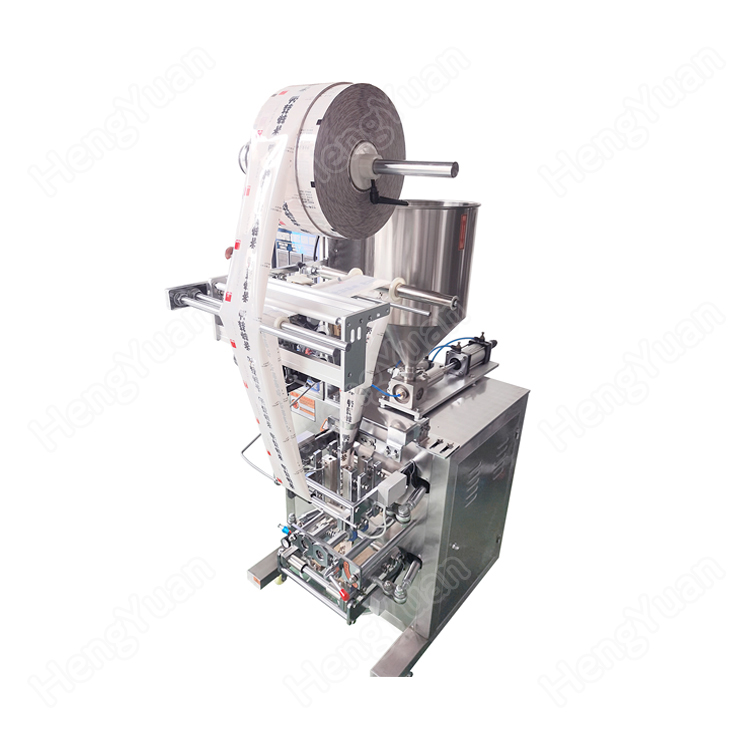

HYVF-280L Vertical Form Fill Seal automatic liquid packaging machine pictures







Product conveyor and collection device

HYVF-280L Vertical Form Fill Seal automatic liquid packing machine is suitable for below pouch samples
Liquid food VFFS packing machine, honey VFFS packing machine, sauce sachet packing machine, paste VFFS packaging machine, shampoo VFFS packing machine, beverage drinking bag packing machine, oil VFFS packing machine, vinegar VFFS packing machine, tomato sauce pouch VFFS packing machine, ketchup sachet packing machine, yoghurt bag packing machine, Vertical forming filling sealing liquid packing machine

Click here to view Automatic liquid pouch packing machine running video on YouTube
https://youtu.be/ufpj9YLfAGI
Contact us to get more information and quotation
Small VFFS Vertical Form Fill Seal automatic packing machine is a new type packaging machine developed for small sachet packing widely used in all kinds of industries of agricultural, foodstuff, pharmacy, fertilizer etc. Vertical Form Seal automatic packaging machine integrates bag-forming, filling, sealing, cutting, printing, punching, counting, etc. into one, its packaging rate can reach 25~60 times/minute. The kernel control section of the packaging machine adopts text screen or PLC and touch screen. The automation degree and operating reliability of this system has reached domestic advanced level. In addition, this packaging machine can realize quick changeover between continuous bag packaging and separate bag packaging, thus improving flexibility of field use. It can be connected with material elevator, output conveyor, metal detector, afterward-packaging equipment to form a fully automatic packaging streamline.
By using piston measuring method, it can pack liquid, cream, gel, sauce.
It also can use other liquid dosing device.
Machine features:
1. Vffs small sachet packing machine can finish all the work automatically: measuring--making bag -coding(option)-materials filling—gas injection(option)--sealing—counting;
2. Micro Computer PLC control system,photoelectric tracking ,which improve the control precision, reliability and intelligence at the maximum limit;

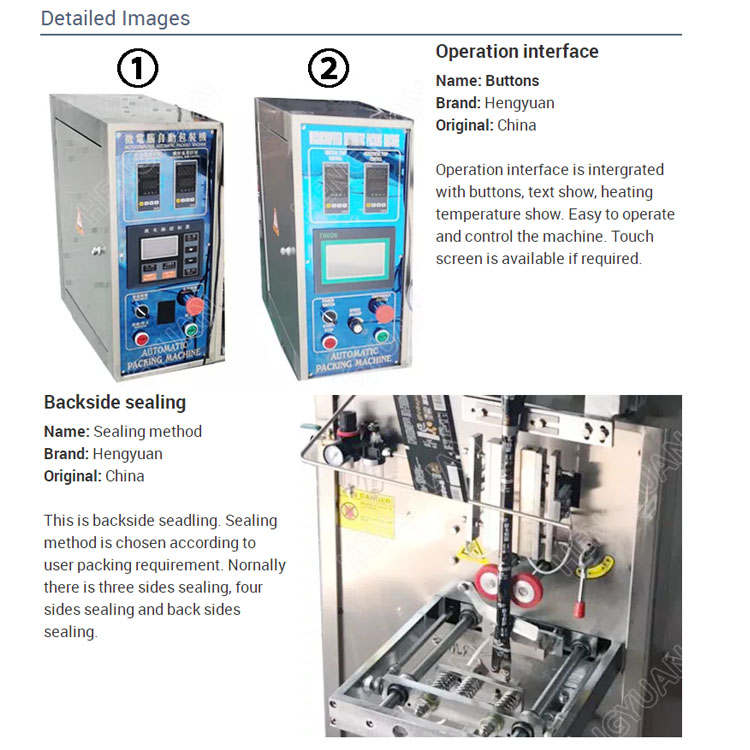

3.Has fault display system,easy to operate and maintain;
4.Make hole punching blade after customer's special request;
5.Full stainless steel or carbon steel machine body for choice.
1. Vffs small sachet packing machine can finish all the work automatically: measuring--making bag -coding(option)-materials filling—gas injection(option)--sealing—counting;
2. Micro Computer PLC control system,photoelectric tracking ,which improve the control precision, reliability and intelligence at the maximum limit;
3.Has fault display system,easy to operate and maintain;
4.Make hole punching blade after customer's special request;
5.Full stainless steel or carbon steel machine body for choice.
Main Technical Data
Model: HYVF-280L
Pouch length: 50-150mm
Pouch width: 15-130mm
Packing accuracy: ≤±1%
Power: 1.6kw
Power supply: 220V/50hz
Roll film material: PET+PE/PET+AL+PE/NY+PE/NON-WOVEN FABRIC/PAPER-PLASTIC FILM
Sealing method: three sides/ four sides, back sides
Net weight: 300kg
Machine size: L600xW790xH1800mm
HYVF-280L Vertical Form Fill Seal automatic liquid packaging machine pictures







Product conveyor and collection device

HYVF-280L Vertical Form Fill Seal automatic liquid packing machine is suitable for below pouch samples
Liquid food VFFS packing machine, honey VFFS packing machine, sauce sachet packing machine, paste VFFS packaging machine, shampoo VFFS packing machine, beverage drinking bag packing machine, oil VFFS packing machine, vinegar VFFS packing machine, tomato sauce pouch VFFS packing machine, ketchup sachet packing machine, yoghurt bag packing machine, Vertical forming filling sealing liquid packing machine

Click here to view Automatic liquid pouch packing machine running video on YouTube
https://youtu.be/ufpj9YLfAGI
Contact us to get more information and quotation
