Spout Pouch 4 Working Station Automatic Filling Capping Machine

  • MODEL: HYRFC-4A
  • Nozzles No.: 1-6pcs customized
BASIC INFO
Technical Description

The spout standup pouch filling and capping machine is generally used for filling and capping stand up pouch for packaging liquid, such as jelly, milk, fruit juice, seasoning, detergent, etc. The standard liquid packaging machinery is suitable spout stand up pouch.


Working flow

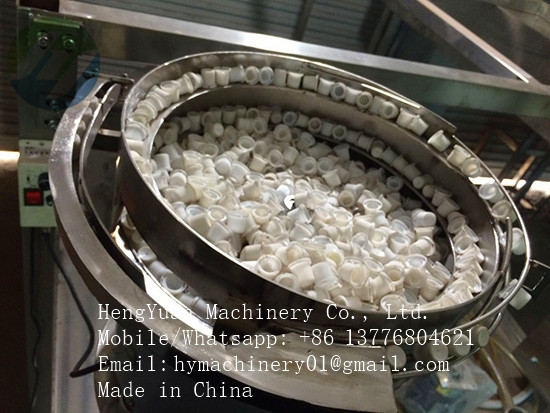

Automatic feeding pouches——automatic filling——automatic blowing washing pouch spout mouth——automatic unscrambling caps——automatic put caps on spout mouth——automatic screwing capping——automatic output finished products


Advantages

  • The variable frequency variable speed system is installed to regulate production rate.
  • The precise indexer helps achieve accurate turnplate positioning.
  • To reduce the labour intensity, this spout pouch filling and capping machine is engineered with automatic pouch feeding mechanism.

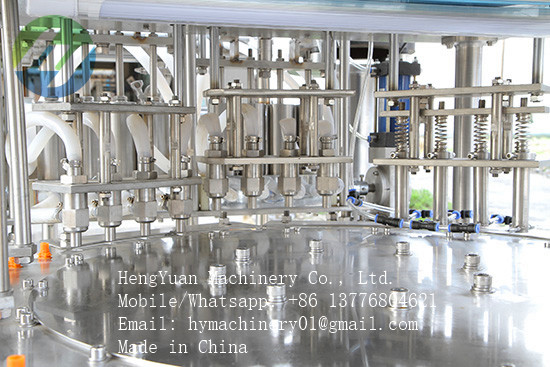

  • The machine adopts special metering device to ensure accurate filling amount.
  • Liquid splashing and bubbling can be avoided by virtue of the vacuum and insert-type liquid filling.

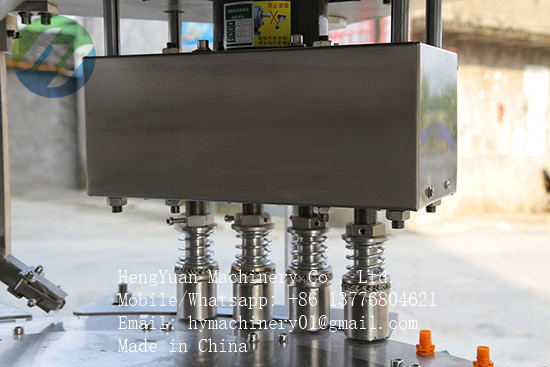

  • This spout pouch filling machine comes with automatic adjustable cap handling and tightening device, ensuring the cap is firmly tightened up.
  • In addition to the automatic standing pouch unloading device, the pouch capping equipment is installed with organic glass screen for high safety.
  • The spout pouch filling and capping machine with stainless steel rack, electroplated pressing plate, and 304 stainless steel plate housing.
Main Technical Data
  • Filling nozzles: 4pcs (1-6pcs customized)
  • Packing speed: 2400-4000 pouch/h
  • Filling volume: 30ml-500ml
  • Filling accuracy: 99%
  • Power:2KW
  • Filling liquid temperature: 0-100℃
  • power source:220V or 380V (customized globally)
  • air pressure:0.5-0.7Mpa
  • air consumption:0.65m3 /min
  • out dimension:2300x1500x1970mm,
  • pouch conveyor size: 2350x400x1400mm
  • Weight:1800kg

Automatic Spout Pouch Filling capping machinery Pictures

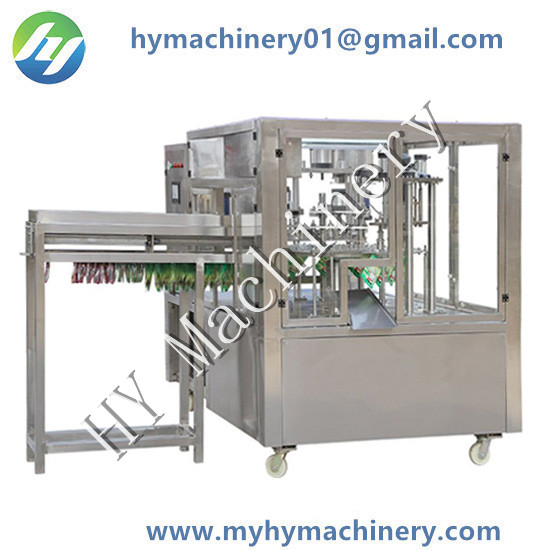

automatic spout standup pouch filling capping machine

automatic spout pouch drinking water filling capping machine
spout pouch ketchup filling capping machine
spout pouch jelly filling capping machine
spout pouch juice filling capping machine

Automatic Spout Pouch Filling capping machine is suitable for below bottle samples

Automatic spout pouch liquid filling capping machine, spout pouch jelly filling capping machine, spout pouch milk filling capping machine, spout pouch soybean milk filling capping machine, spout pouch fruit juice filling capping machine, spout pouch seasoning packing machine, spout pouch liquid detergent filling capping machine, spout pouch laundry detergent filling capping machine, spout pouch edible oil filling capping machine, spout pouch lubricant oil filling capping machine, etc.
spout pouch jelly filling capping machine


Click here to view Automatic Spout Pouch Filling capping machine running video on YouTube

https://youtu.be/DJGencVvYtw
