Table top four wheels clamping capping machine

Model: HYXG-4CT
Capping Wheels No.: 4 pcs
Cap sorting: no cap sorter, vibritating bowl or centrifuge bowl
Bottle working method: run-stop
Capping Speed: 1200-1800 bottles/hour
Advantage: Smart and economical

BASIC INFO

HYXG-4CT Automatic four wheels capping machine Technical Description

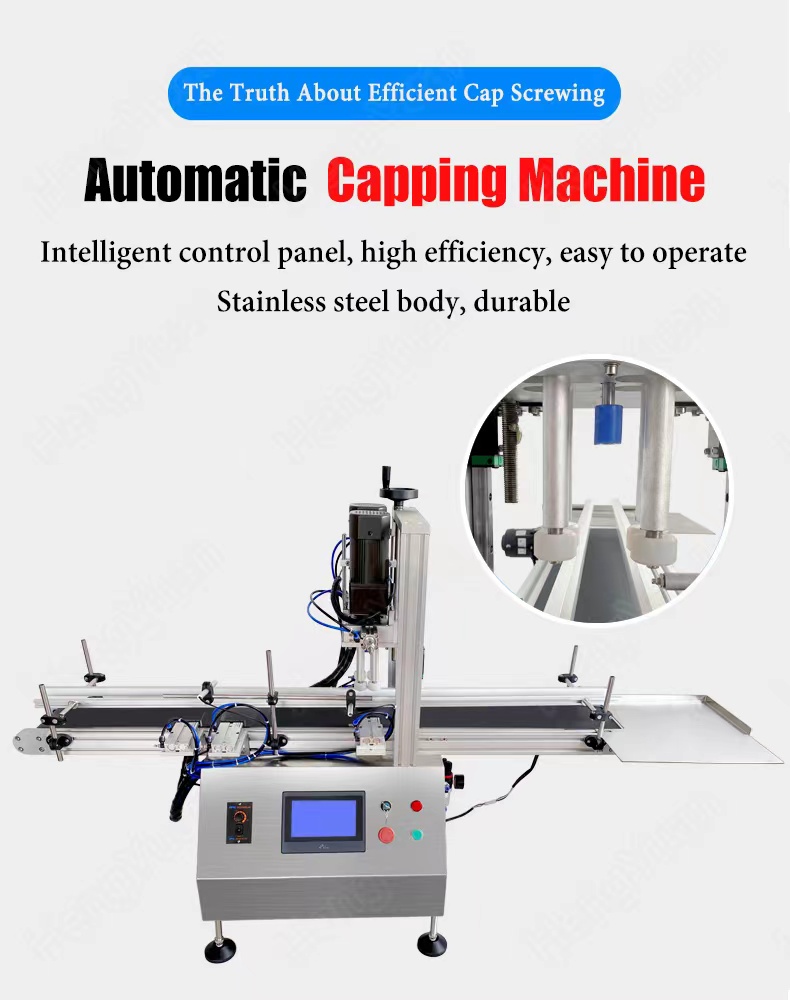

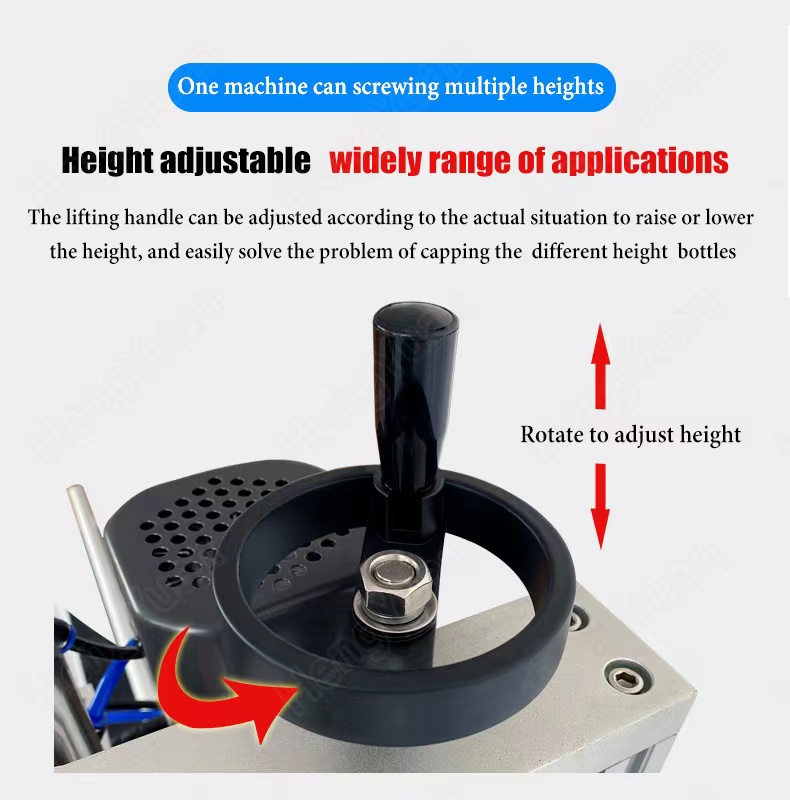

Table top automatic four wheels clamping bottle screwing capping machine is a new product developed on the base of the latest technology, using four wheels to clamp and screw cap. The bottle sealing machine adopts PLC to combine the actions. And the parameters are set in touch screen. The mechanical parts are adjustable to suit for bottles with different sizes. It has a wide applicability, particularly suitable for multi-product compliant method. Its most prominent feature is that it can adapt to all shapes and types of the bottle just by adjusting without any additional parts. According to lid types, the capping machine can be equipped with suitable cap sorting device, such as vibrating bowl, centrifuge bowl, elevating lid sorter. it can be used for medium and small-batch production.  The machine meets the GMP requirements, easy to disassemble, clean and maintain. The capping machine is widely used in pharmaceutical, chemical, food, beverage, oil and pesticides industries.

1) Used for flat top plastic and metal screwing cap.
2) Used for the cap with the tube, pump cap, spray cap, trigger cap by manually put caps on the bottles.

Main Technical Data

Capping capacity	0-21800bottles/hour according to bottle and lid sizes
Applicable cap diameter	20-50mm customized according to cap samples
Suitable bottle diameter	20-90mm, special sizes can be customized according to bottle sample
Suitable for bottle height	50-300mm, special sizes can be customized according to bottle sample
Total Power	0.6Kw
Power supply	AC220V/110V, Single phase, can be customized globally
Air supply	0.5-0.7Mpa

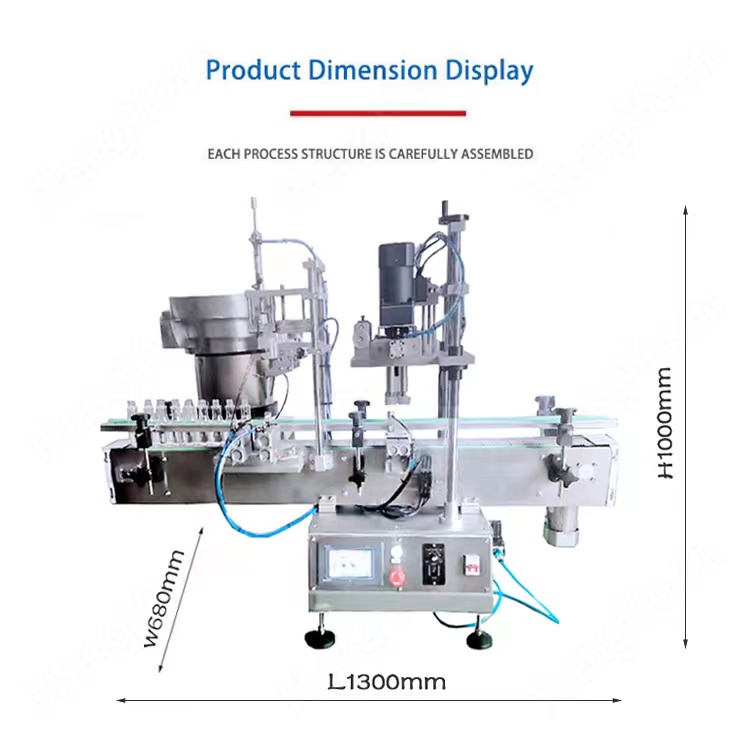

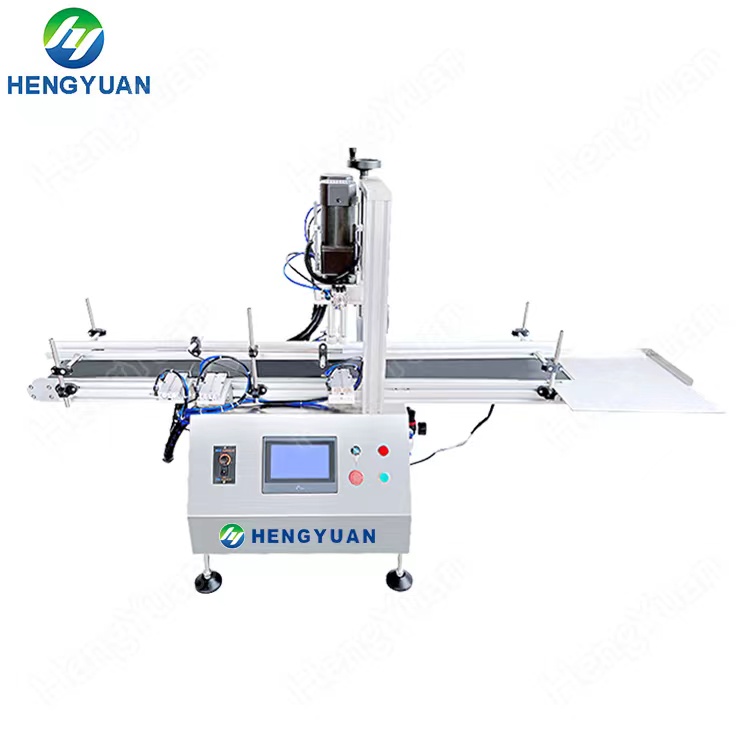

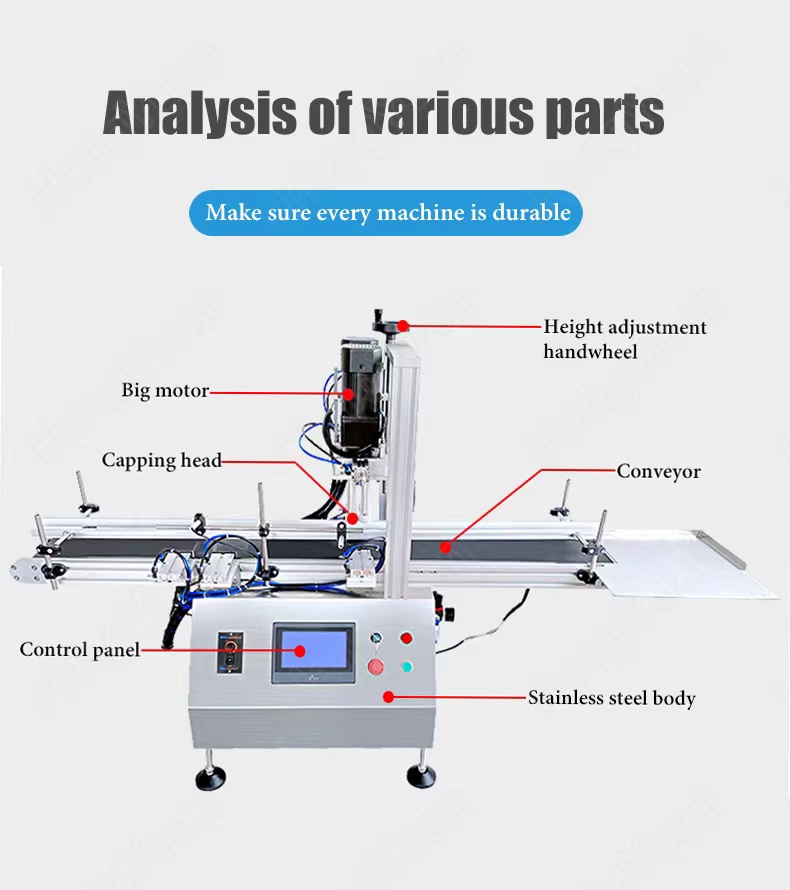

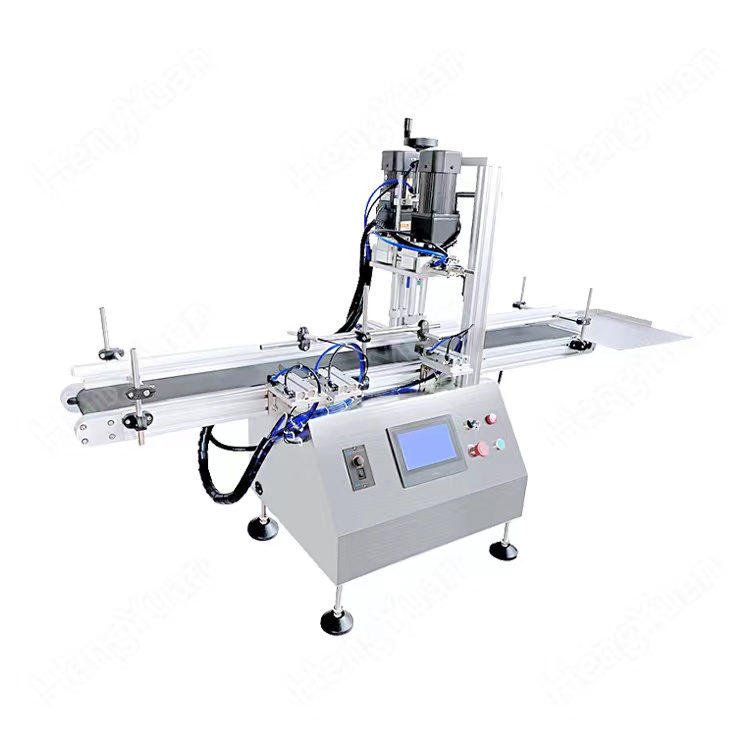

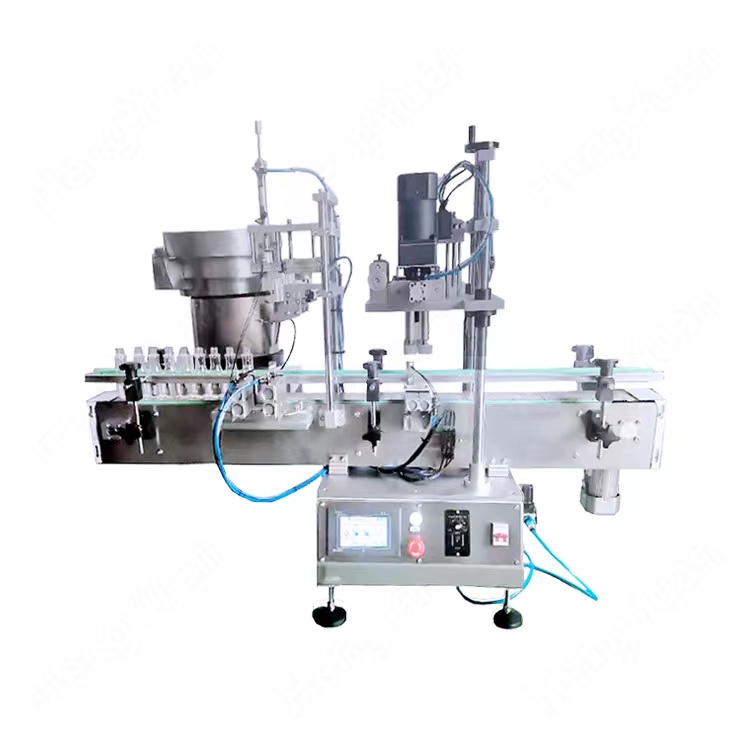

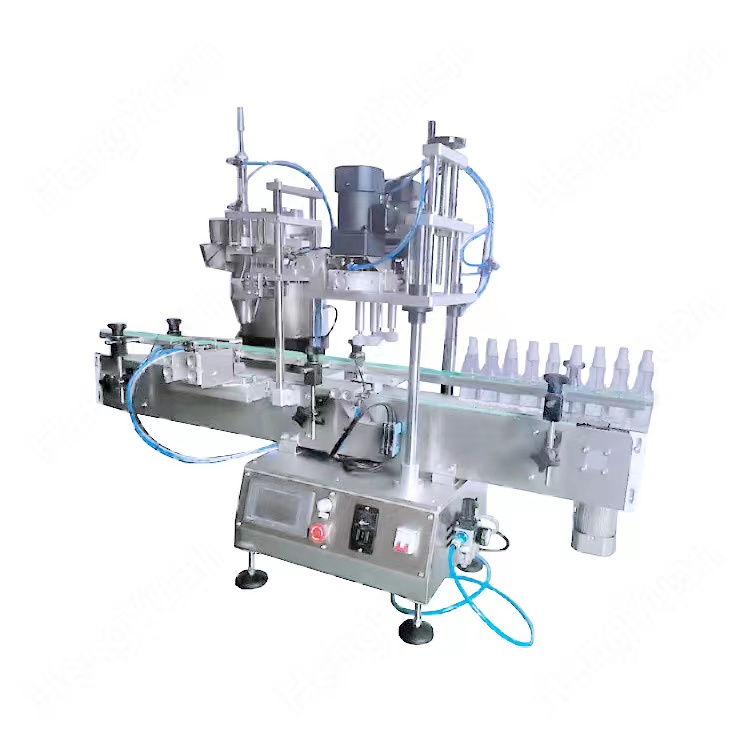

HYXG-4CT Desktop four wheels bottle capping machine Pictures

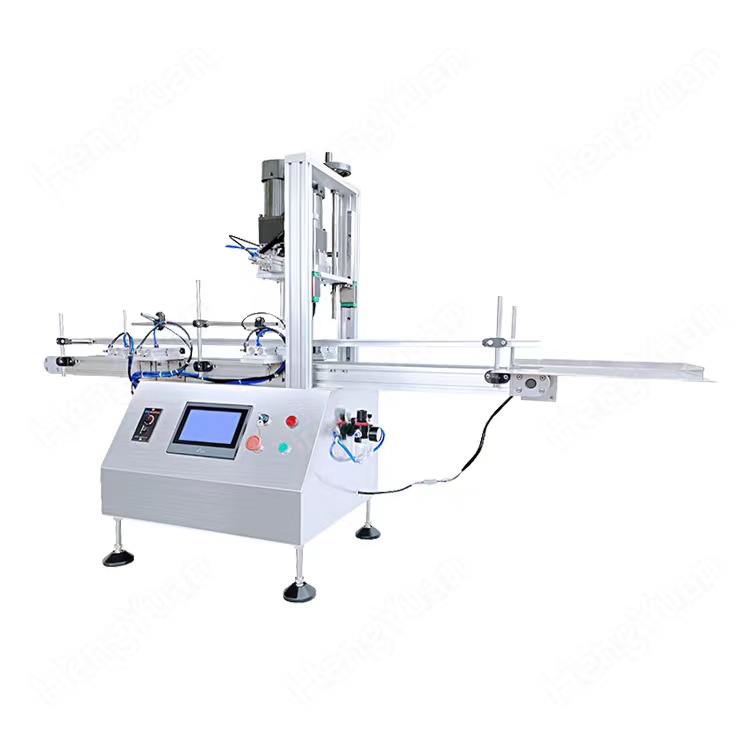

HYXG-4CT Desktop Automatic Four Wheels Clamping Lid Capping Machine.jpg

HYXG-4CT Desktop Automatic Four Wheels Clamping Lid Bottle Capping Machine.jpg

HYXG-4CT Desktop Automatic Four Wheels Clamping Cap Bottle Capping Machine.jpg

HYXG-4CT Automatic Four Wheels Clamping Cap Bottle Capping Machine.jpg

HYXG-4CT Automatic Four Wheels Clamping Cap Bottle Capping Machinery.jpg

HYXG-4CT Automatic Four Wheels Clipping Cap Bottle Capping Machine.jpg

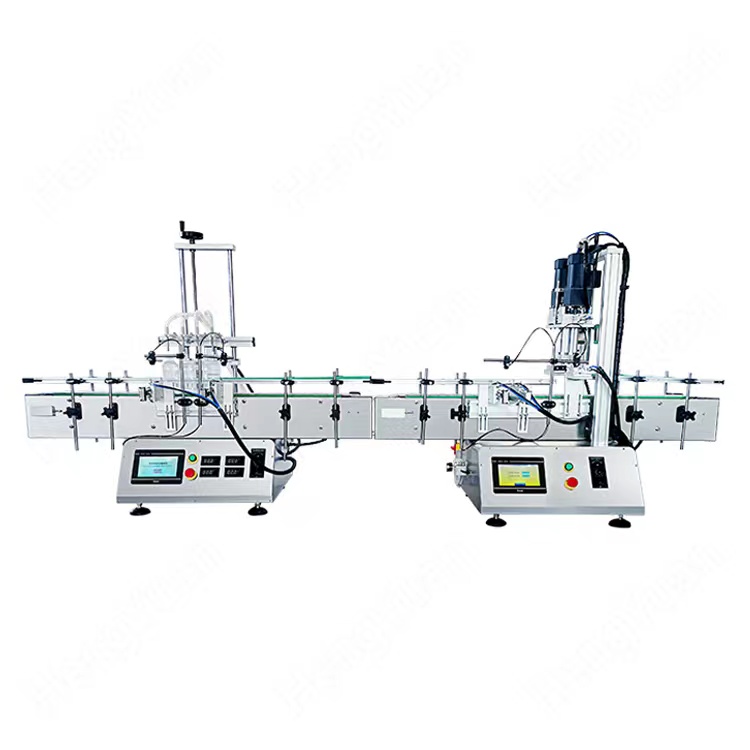

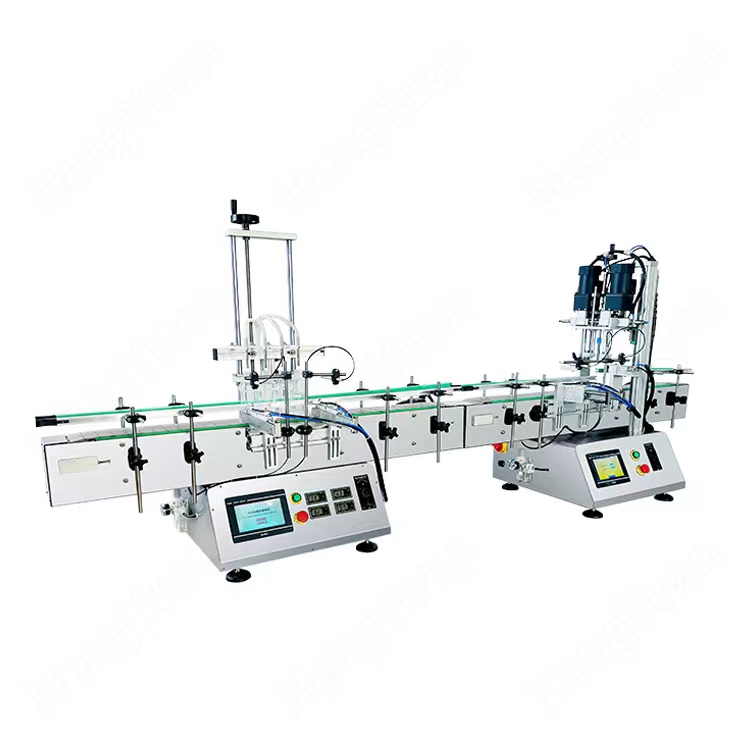

HYXG-4CT Automatic Four Wheels Clamping Cap Bottle Capping Machine Line.jpg

HYXG-4CT Table Top Automatic Clamping Cap Bottle Capping Machine.jpg

HYXG-4CT Table Top Automatic Four Wheels Clamping Lid Bottle Capping Machine Advantages.jpg

HYXG-4CT Automatic four wheels bottle capping equipment is suitable for below bottle samples
Plastic cap screwing capping machine, big diameter screwing lid capping machine, lug twist-off tinplate metal lid capping machine, pesticide bottles capping machine, lubricant barrel capping machine, medical alcohol bottles capping machine, PET bottle capping machine, pet juice bottle capping machine, drinking water bottle screwing capping machine, medical bottles cap sealing machine, etc.

Click here to view HYXG-4CT Automatic capping machine running video on YouTube
https://youtu.be/SfhbGphVGqg
