Three Chambers Pod PVA Water-Soluble Film Packing Machine

  • Model: HYSR-344
  • Pod shape: 1,2,3 chambers

Technical Description

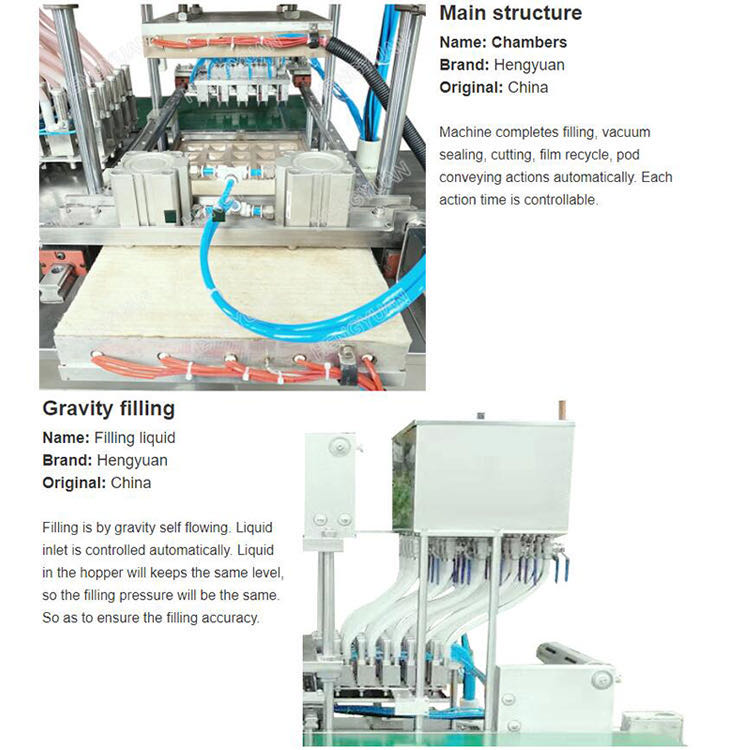

Automatic three chambers liquid laundry pods packing machine is a mould type unit dose non aqueous liquid pods forming, filling, sealing and cutting equipment. It is an automatic high capacity electrical heating sealing ( auxiliary water sealing ) packing machine specially designed for high concentrated laundry detergent pods. It has good adaptability of water soluble PVA film and detergent liquid.

Main Technical Data

  • Name: Water-soluble Film packing machine
  • Brand Name: HENGYUAN
  • Packing speed: Approx 30 bags/min
  • Volume: three chambers 12-18 grams (ml), two chambers 5-25 grams, single color 5-30 grams by changing moulds
  • Voltage: 380V/50Hz can be customized globally
  • Pneumatic: 0.6mpa
  • Filling mold: 4x4
  • Application: Liquid detergent pods
  • Weight: 850kg
  • Dimension: 1800*1300*2400mm
  • Main steel of the machine: Stainless steel 304
  • Advantage: Dissolve fast, no residue, one-time use without any waste. The film is non-toxic, and will be dissolved into water and carbon dioxide.
  • The film is antistatic and with good tensile strength and no dust. The machine adopts heat sealing, and it is with good sealing properties.

Three Chambers Liquid Detergent Pods PVA Water-Soluble Film packing machine pictures

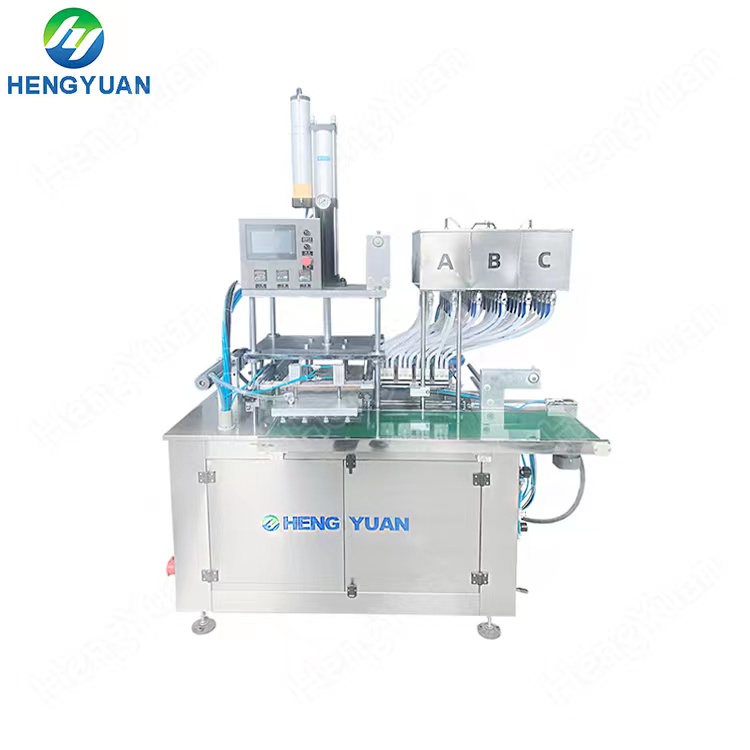

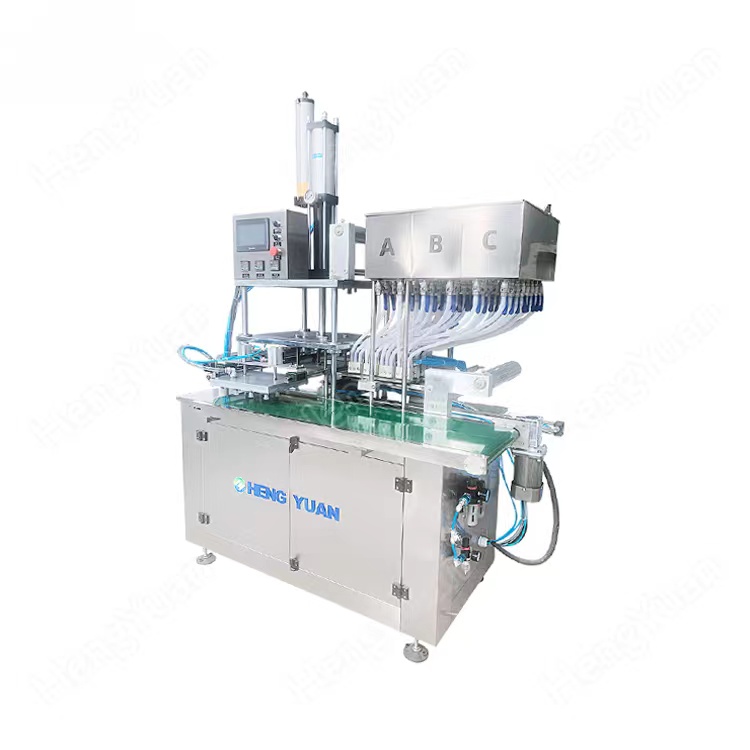

HYSR-344 Three chambers pva pod packing machine

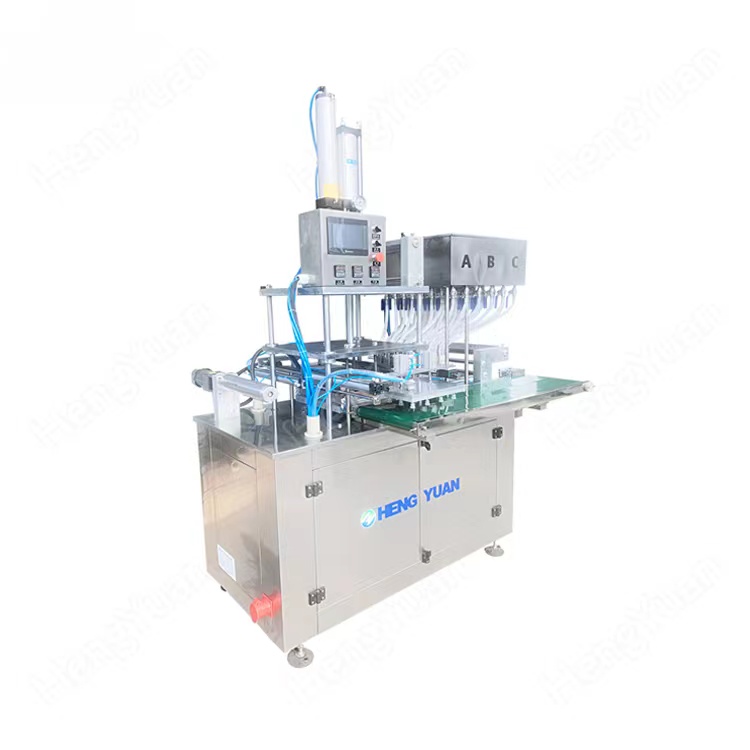

HYSR-344 Three chambers liquid laundry pva pod packer

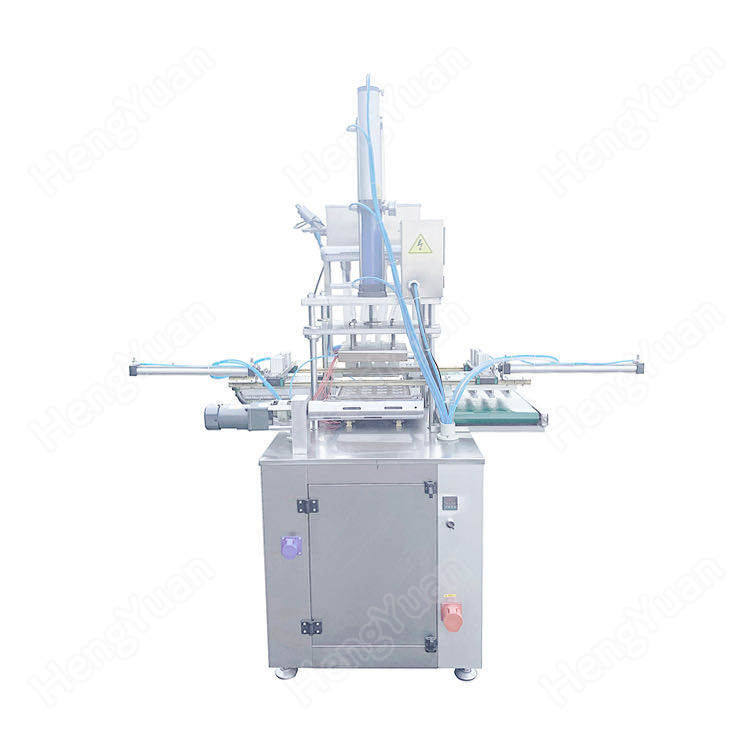

HYSR-344 Three chambers liquid laundry pva pod packing machine

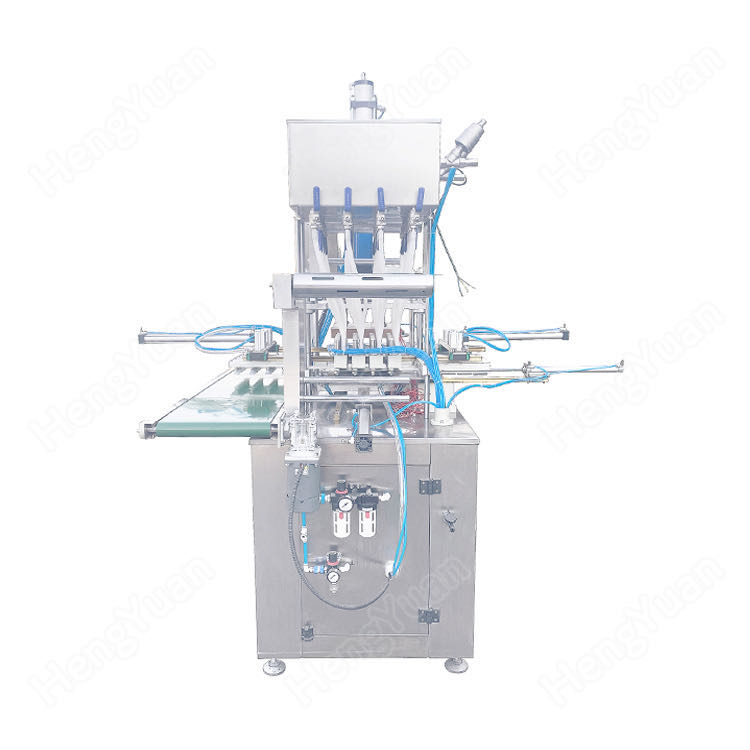

HYSR-344 Automatic Laundry Liquid Capsules Packing Machine
HYSR-344 Automatic PVA Capsules Packing Machine
HYSR-344 Three chambers liquid floor cleaner pva pod packer
HYSR-344 Automatic Laundry Liquid Beads Packing Machine

HYSR-344 Automatic Laundry Liquid Pods Packing Machine

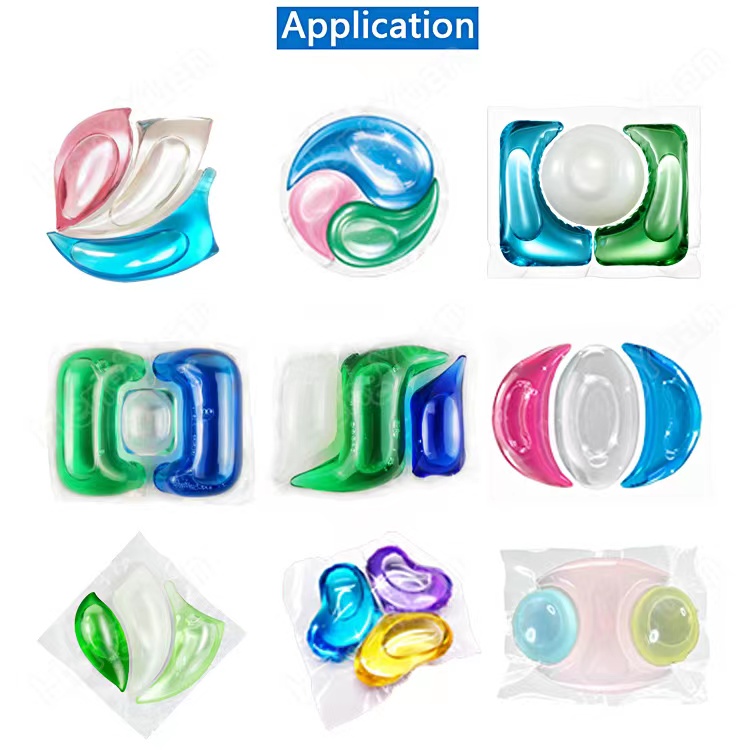

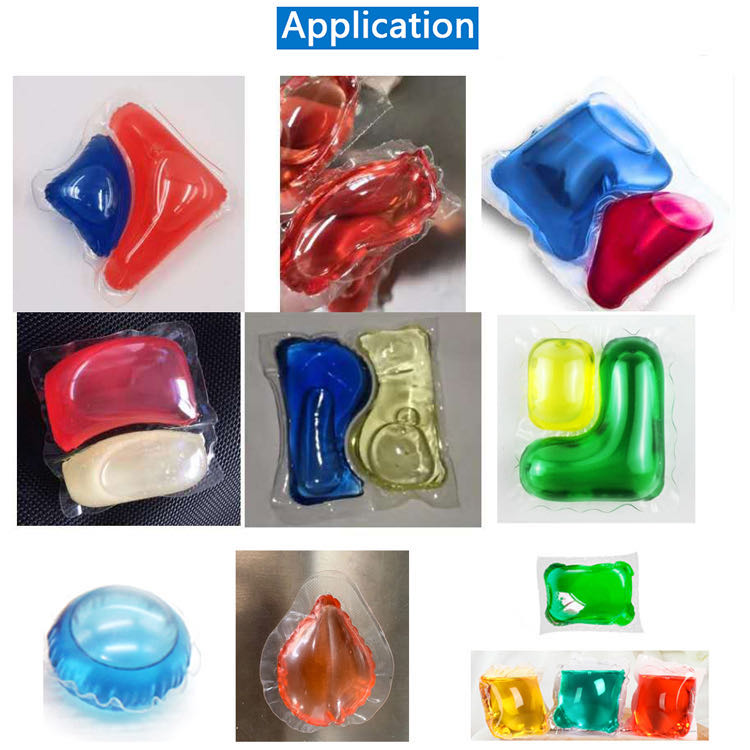

Laundry Detergent Pods PVOH Water-Soluble Film Pouch packing machine is suitable for below pouch samples

The machine is particulary suitable for packing high concentrated liquid detergent pod, liquid laundry pva bead, floor cleaning liquid pvoh capsules, small dose single packs.It is a preferred packing way of product upgrade.

HYSR-344 Automatic PVA Film Laundry Liquid Pod Packing Machine
HYSR-344 Three Chambers Laundry Liquid PVA Beads Packing Machines

Click here to view
Laundry Detergent Pods PVA Water-Soluble Film Pouch Making packing machine running video on YouTube
