BASIC INFO
Technical Description
VFFS Vertical Form Fill Seal automatic packaging machine is a new type packaging machine developed for large-capacity packaging industries of agricultural, foodstuff, pharmacy, fertilizer etc. Vertical Form Seal automatic packaging machine integrates bag-forming, filling, sealing, cutting, printing, punching, counting, etc. into one, its packaging rate can reach 25~80 times/minute. The kernel control section of the packaging machine adopts PLC and touch screen. The automation degree and operating reliability of this system has reached domestic advanced level. In addition, this packaging machine can realize quick changeover between continuous bag packaging and separate bag packaging, thus improving flexibility of field use. It can be connected with material elevator, output conveyor, metal detector, afterward-packaging equipment to form a fully automatic packaging streamline.
Main Technical Data
Vertical Form Fill Seal automatic packaging machine pictures
Main machine
Filling device
Product conveyor and collection device
Screw feeder
The machines system
Vertical Form Fill Seal automatic packaging machine is suitable for below pouch samples
Click here to view Automatic Inline Piston Filling Machine running video on YouTube
https://youtu.be/I2K-b3med2k
Contact us to get more information and quotation
VFFS Vertical Form Fill Seal automatic packaging machine is a new type packaging machine developed for large-capacity packaging industries of agricultural, foodstuff, pharmacy, fertilizer etc. Vertical Form Seal automatic packaging machine integrates bag-forming, filling, sealing, cutting, printing, punching, counting, etc. into one, its packaging rate can reach 25~80 times/minute. The kernel control section of the packaging machine adopts PLC and touch screen. The automation degree and operating reliability of this system has reached domestic advanced level. In addition, this packaging machine can realize quick changeover between continuous bag packaging and separate bag packaging, thus improving flexibility of field use. It can be connected with material elevator, output conveyor, metal detector, afterward-packaging equipment to form a fully automatic packaging streamline.
Main Technical Data
|
MODEL |
HYVF-320 |
HYVF-420 |
HYVF-520 |
HYVF-620 |
HYVF-720 |
|
Max Film With |
320mm |
420mm |
520mm |
620mm |
720mm |
|
Bag length |
80-230mm |
80-300mm |
80-350mm |
100-420mm |
100-510mm |
|
Bag width |
50-150mm |
60-200mm |
60-250mm |
100-300mm |
100-350mm |
|
Packing speed |
20-55bags/min |
20-50bags/min |
20-45bags/min |
10-45bags/min |
10-35bags/min |
|
Packing range |
50-800ml |
200-1000ml |
200-2000ml |
200-3500ml |
200-5000ml |
|
Film thickness |
0.05-0.09mm |
0.06-0.12mm |
|||
|
Power supply |
220V/380V 50-60HZ 2.0kw |
220V/380V 50-60HZ 2.2kw |
220V/380V 50-60HZ 2.5kw |
220V/380V 50-60HZ 2.6kw |
220V/380V 50-60HZ 4.0kw |
|
Dimension |
1100*830*1400mm |
1630*1000*1400mm |
1630*1100*1550mm |
1660*1200*1650mm |
1700*1400*1800mm |
|
Weight |
400KG |
450KG |
550KG |
650KG |
750KG |
|
Roll film material |
PET+PE/PET+AL+PE/NY+PE/NON-WOVEN FABRIC/PAPER-PLASTIC FILM |
||||
Vertical Form Fill Seal automatic packaging machine pictures

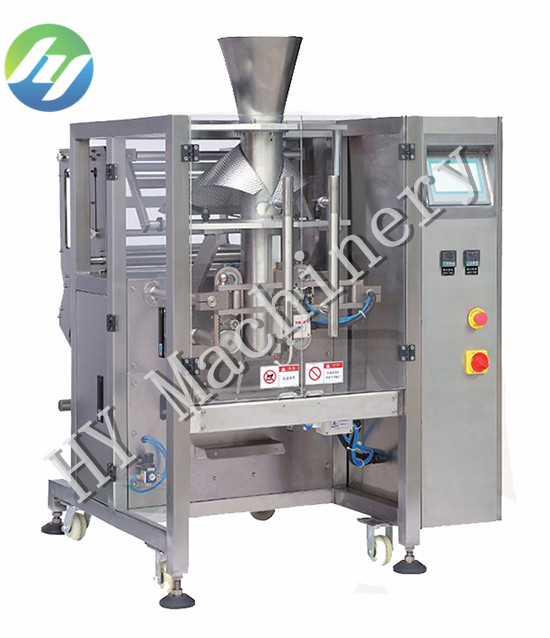

Main machine

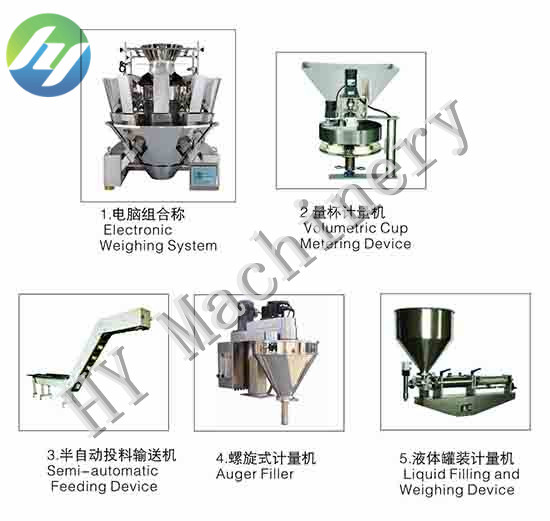

Filling device

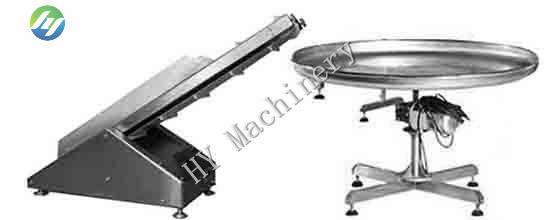

Product conveyor and collection device
Screw feeder

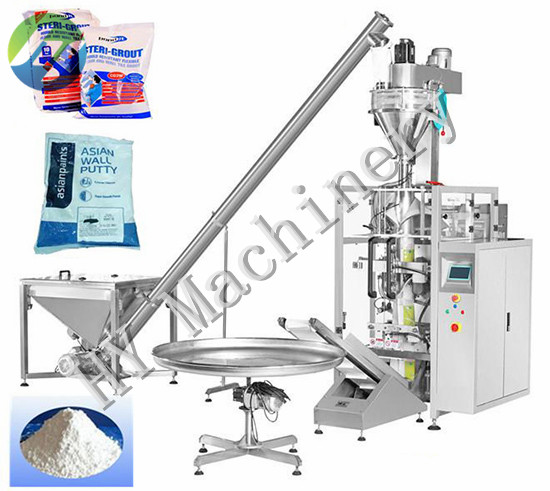

The machines system
Vertical Form Fill Seal automatic packaging machine is suitable for below pouch samples
Click here to view Automatic Inline Piston Filling Machine running video on YouTube
https://youtu.be/I2K-b3med2k
Contact us to get more information and quotation
